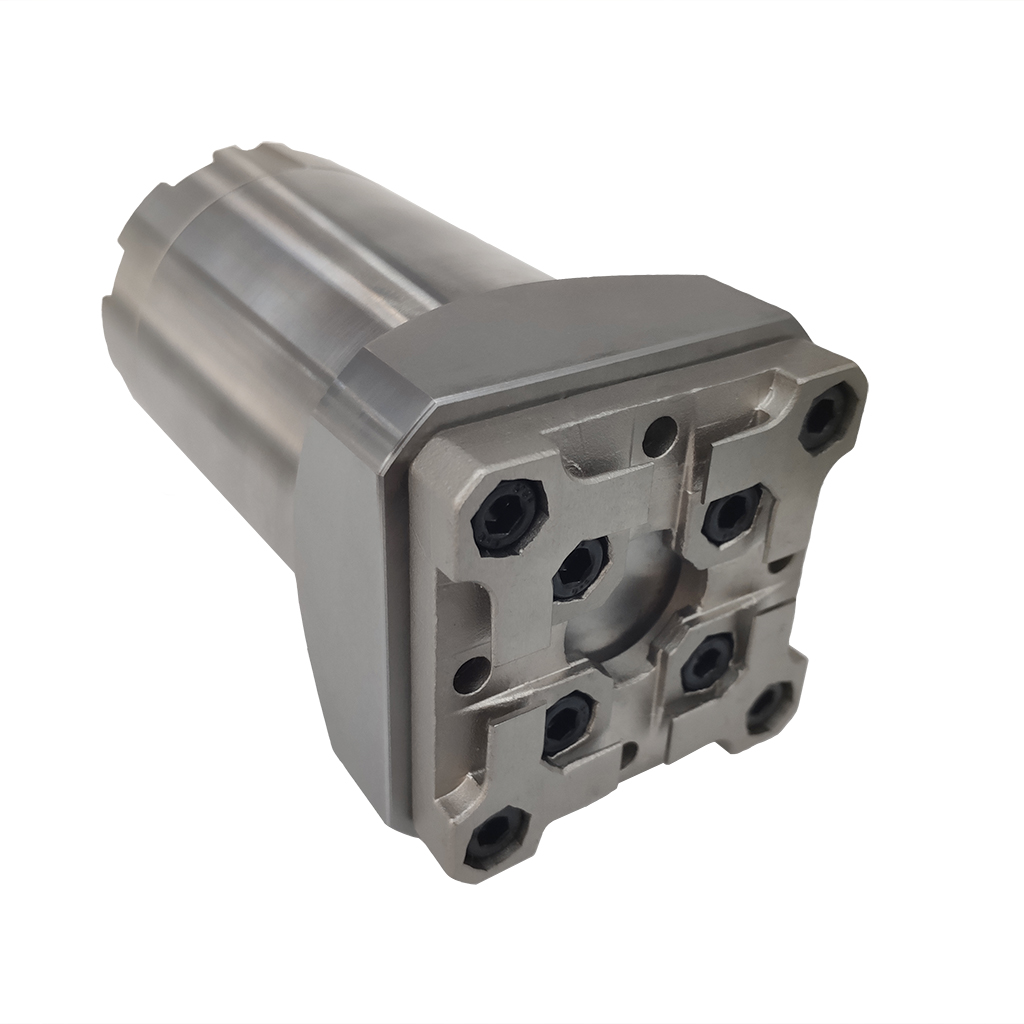

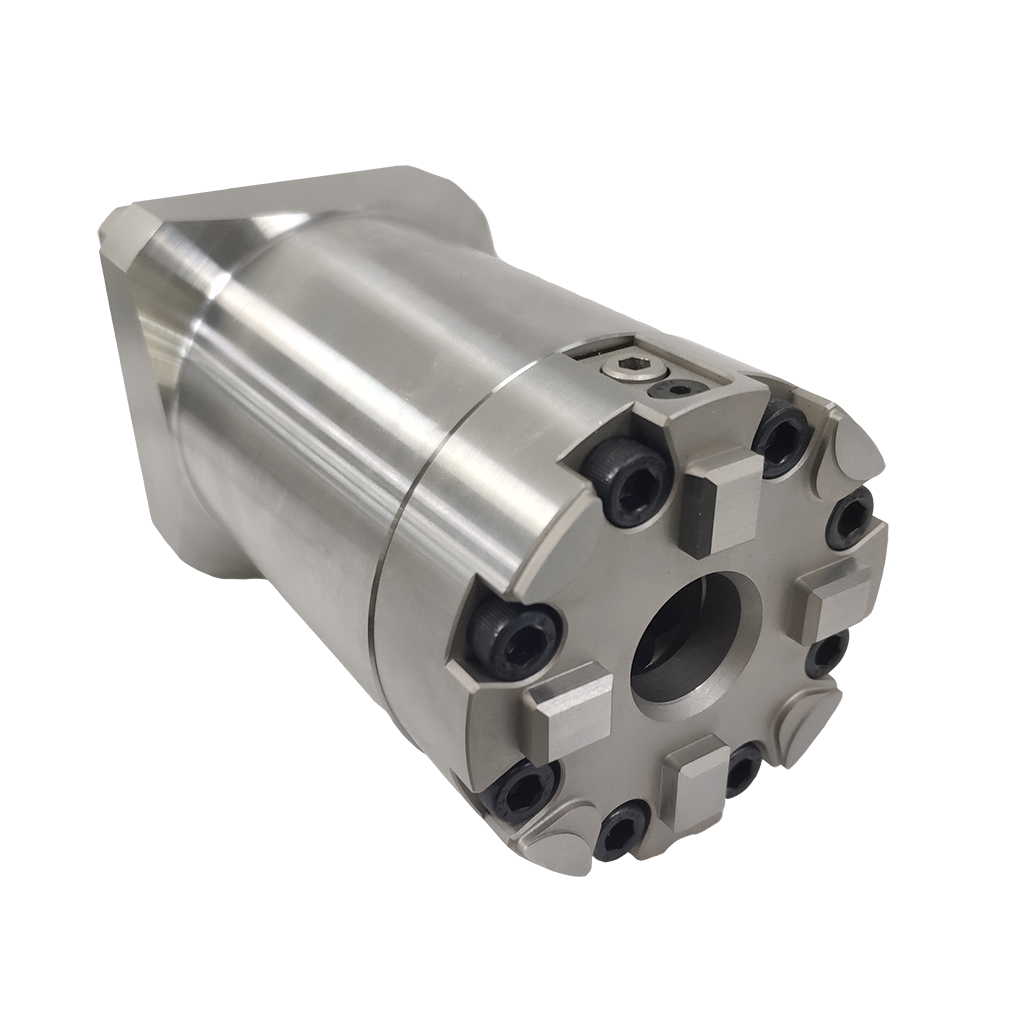

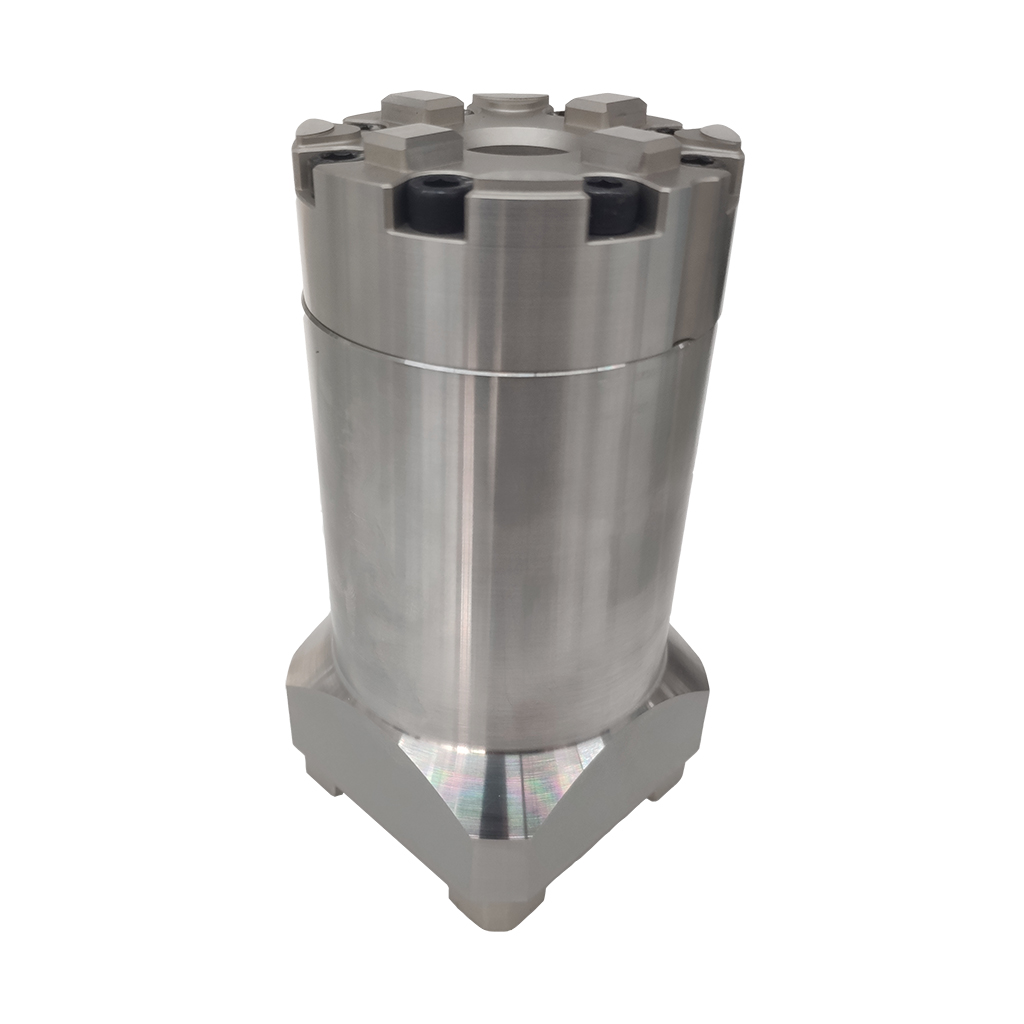

Manual Chuck Adapter Macro-Macro-3R-652.2

9

Manual Chuck Adapter Macro-Macro-3R-652.2

POFI Manual Chuck Adapter is compatible with System 3R, it is a product which is similar with 3R-652.2 Manual Chuck Adapter Macro. It applies to extend the EDM machine spindle distance so that it can do machining deeper on workpieces. Machanical clamping on the side. Product length total is 150mm(including manual chuck, extension adapter & centering plate). It is equivalent to a manual chuck, MacroStd 3R-600.23-S mounting on a extension adapter. And the length of extension adapter can be customized as clients' requirement.


Availability:



Inquire

Product Description

Manual Chuck Adapter Macro-Macro-3R-652.2-3-1024

Manual Chuck Adapter Macro-Macro-3R-652.2-1-1024

Product Name: Manual Chuck Adapter Macro-Macro-3R-652.2

Item No.: PO-3R-652.2

Description: POFI Manual Chuck Adapter is compatible with System 3R, it is a product which is similar with 3R-652.2 Manual Chuck Adapter Macro. It applies to extend the EDM machine spindle distance so that it can do machining deeper on workpieces. Machanical clamping on the side. Product length total is 150mm(including manual chuck, extension adapter & centering plate). It is equivalent to a manual chuck, MacroStd 3R-600.23-S mounting on a extension adapter. And the length of extension adapter can be customized as clients' requirement.
