PO-K0022
POFI

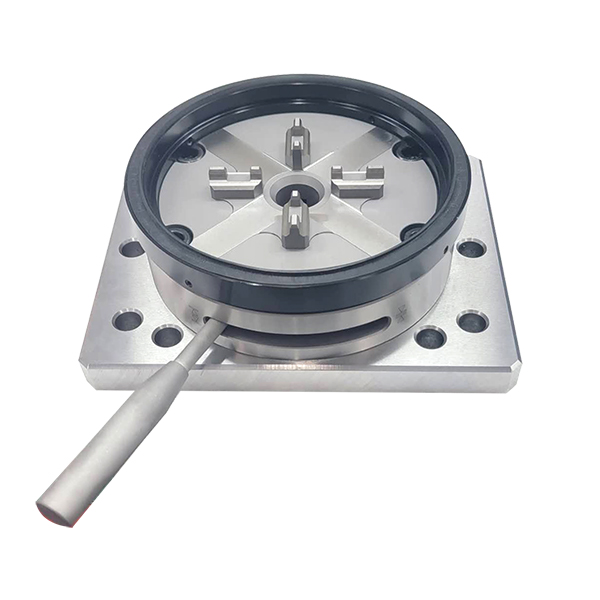

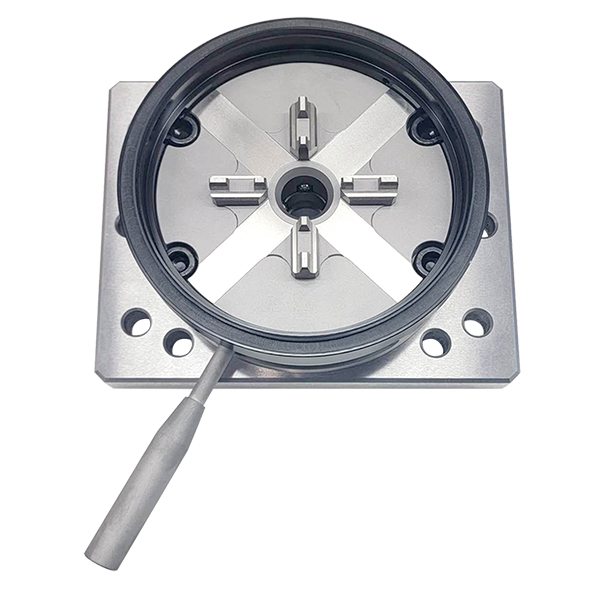

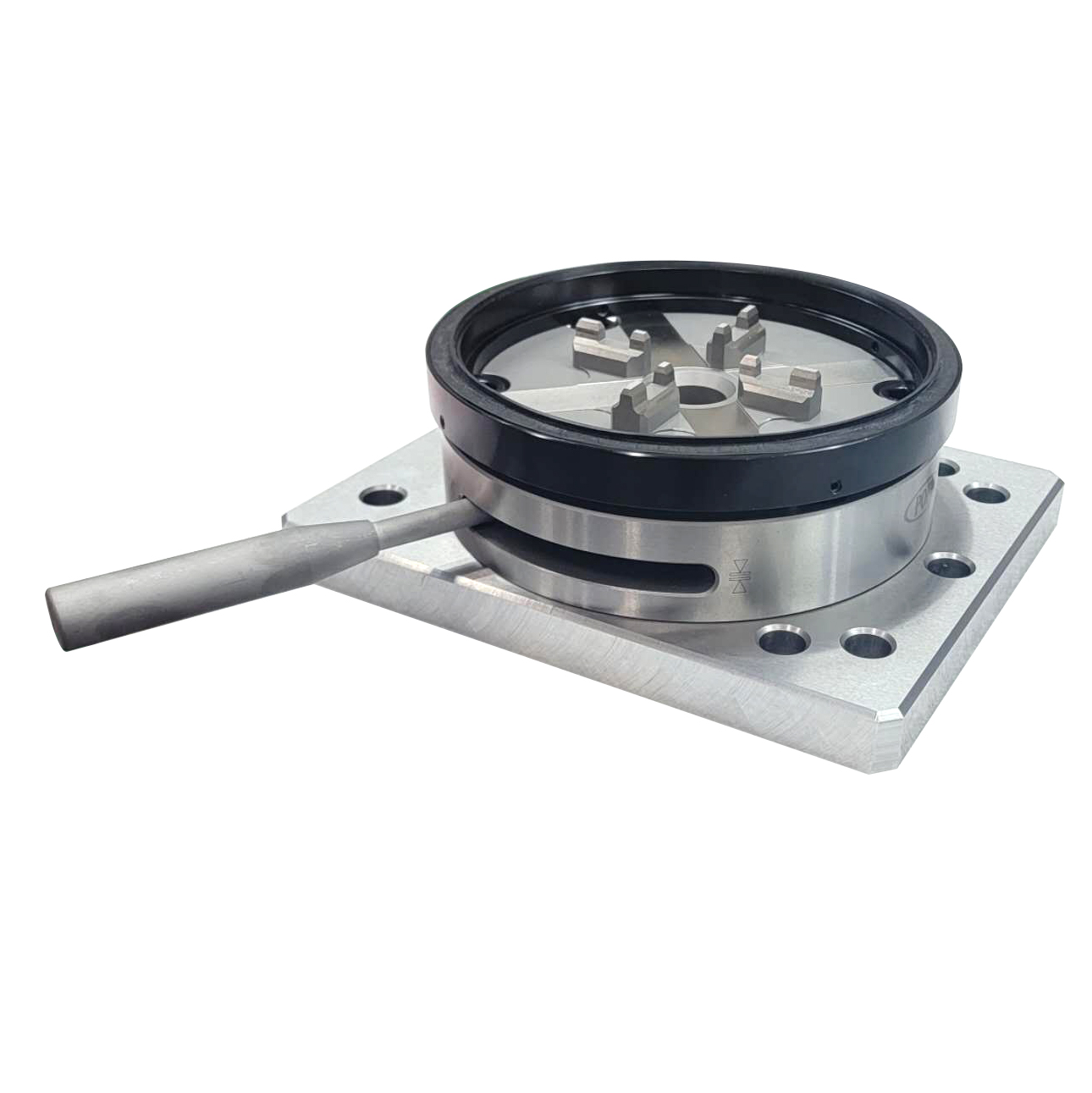

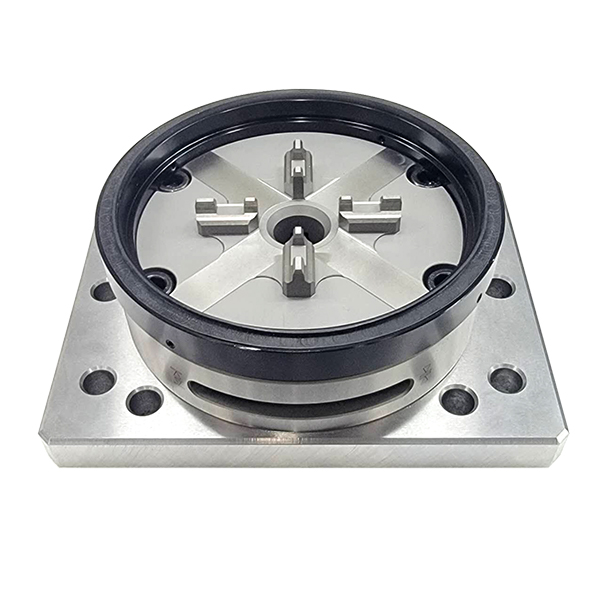

QuickChuck 150 P with Base Plate 198x158 ER-024312
Product Name: QuickChuck 150 P with Base Plate 198x158 ER-024312
Item No.: PO-K0022

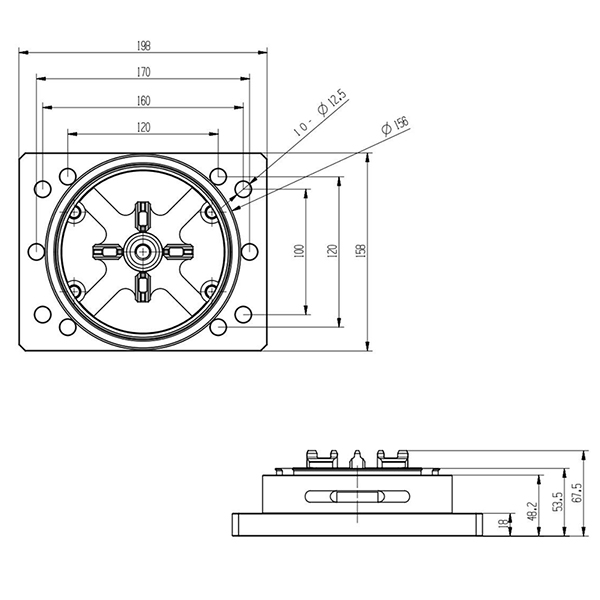

Description: POFI QuickChuck 150 P with Base Plate 198x158 is compatible with EROWA ITS system. It is similar to ER-024312 but driven manually. Reference surface height of chuck is 53.5mm, base plate size is 198x158mm. The chuck is made of stianless steel, hardened, rust-resistant. It applies to accommodate electordes or workpieces in CNC milling michine, grinding machine or EDM machine. Clamping power up to 15000N.
QuickChuck 150 P with Base Plate 198x158 ER-024312
Product Name: QuickChuck 150 P with Base Plate 198x158 ER-024312
Item No.: PO-K0022
Description: POFI QuickChuck 150 P with Base Plate 198x158 is compatible with EROWA ITS system. It is similar to ER-024312 but driven manually. Reference surface height of chuck is 53.5mm, base plate size is 198x158mm. The chuck is made of stianless steel, hardened, rust-resistant. It applies to accommodate electordes or workpieces in CNC milling michine, grinding machine or EDM machine. Clamping power up to 15000N.
