POFI 90 Degree 6" Macro Chuck Adapter 3R-652.9

POFI 90 Degree 6" Macro Chuck Adapter, compatible to 3R-652.9, for horizontal mounting of macro compatible holders, this is a overside revered model to POFI standard 90 degree holder, this holder has also been reversed to our standard allowing you to incease the distance from your head to the burn location, allows user to quickly go from vertical to horizontal position while maintaining location and accuracy, reaquired drawbar shot manual drawbar.
Availability:

POFI 90 Degree 6" Macro Chuck Adapter, compatible to 3R-652.9, for horizontal mounting of macro compatible holders, this is a overside revered model to POFI standard 90 degree holder, this holder has also been reversed to our standard allowing you to incease the distance from your head to the burn location, allows user to quickly go from vertical to horizontal position while maintaining location and accuracy, reaquired drawbar shot manual drawbar.


Accuracy: static repeat bility accuracy is 0.002mm.

positional accuracy to data 0.005mm


Products name POFI 90 Degree 6" 152.4mm Macro Chuck Adapter 3R-652.9
Material Stainless steel 420
Size Distance from Z pallet to center of chuck is 152.4mm
Locking screw lock
Force power 6000N

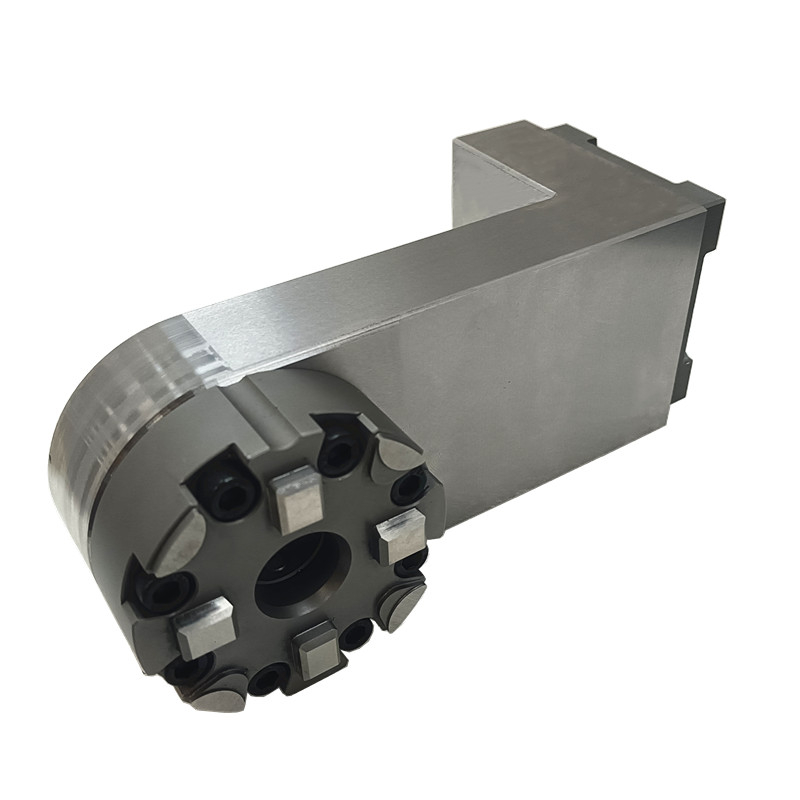

3R-652.9 90 Degree 6 Macro Chuck Adapter _副本
