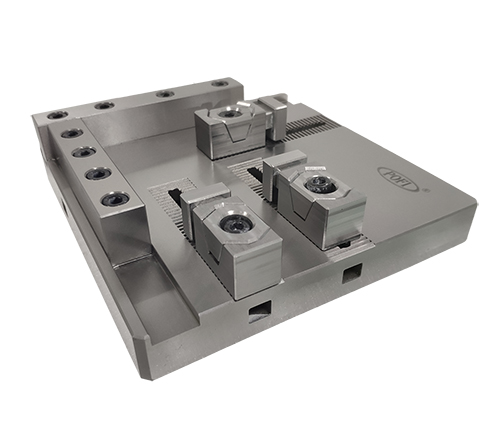

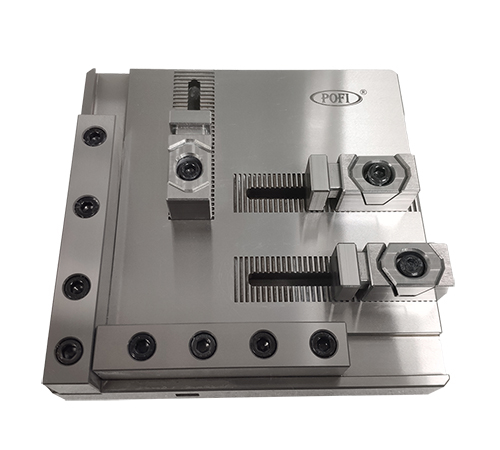

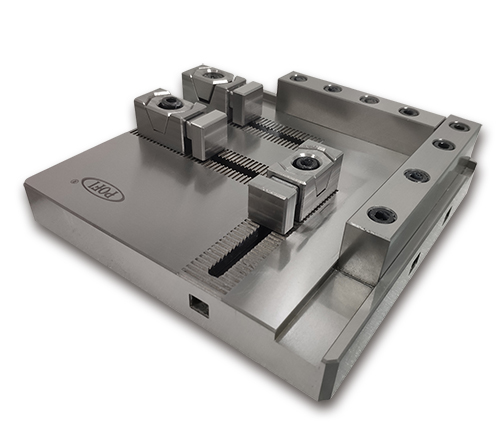

Fixture for Tiny Component 100x100mm

Fixture for Tiny Component 100x100mm is particularly for clamping workpiece size maximum to 100x100mm when doing EDM machining. It can compatible with EROWA or System 3R depends on what centering segments you choose. If fixture comes with Centering Plaet G INOX ER-036658, it would use with EROWA chuck. Or if fixture comes with 70x70 Pallet Macro 3R-601.7E-P, it would be used with System 3R chuck.
  • PO-V0010
  • POFI

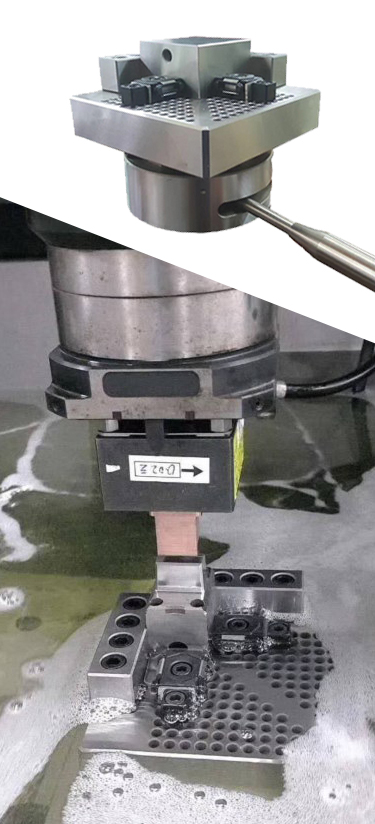

cse

fixture for tiny component 100x100mm-1-500

fixture for tiny component 100x100mm-2-500

fixture for tiny component 100x100mm-4-500

fixture for tiny component 100x100mm-specification

Product Name: Fixture for Tiny Component 100x100mm

Item No.: PO-V0010

Description: Fixture for Tiny Component 100x100mm is particularly for clamping workpiece size maximum to 100x100mm when doing EDM machining. It can compatible with EROWA or System 3R depends on what centering segments you choose. If fixture comes with Centering Plaet G INOX ER-036658, it would use with EROWA chuck. Or if fixture comes with 70x70 Pallet Macro 3R-601.7E-P, it would be used with System 3R chuck.
