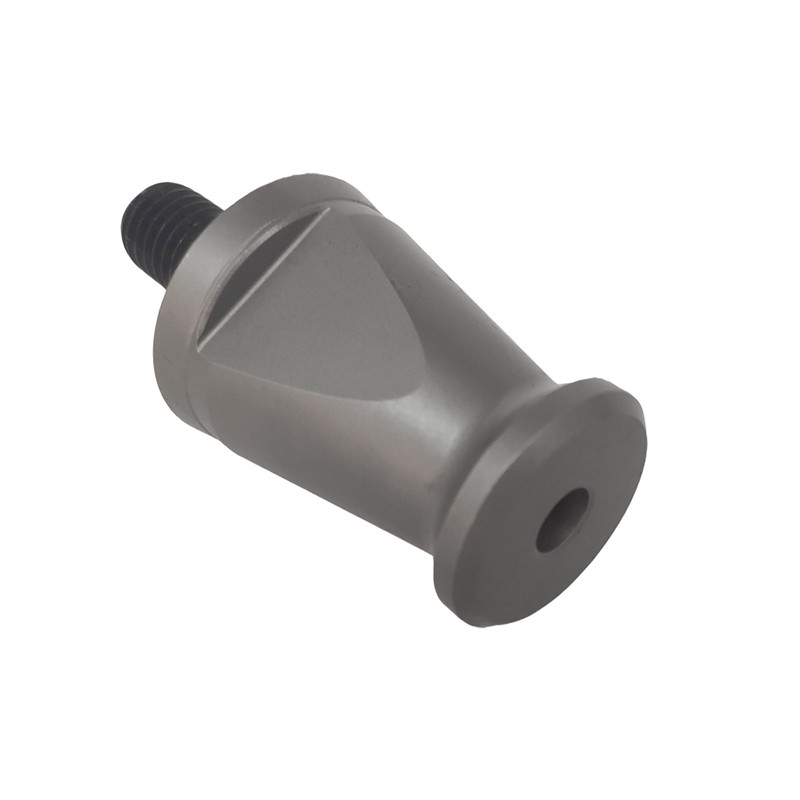

UPC Centering segments and chucking spigots ER-024562

Description: POFI UPC Centering Segments and Chucking Spigot is compatible with EROWA UPC. And it is euqivalent to ER-024562. It applies to produce special UPC pallets. Product mounting on the plate from below with bolts through the plate. Easy to assemble on the PreSet UPC presetting station ER-014309.
Availability:
Inquire

sharethis sharing button

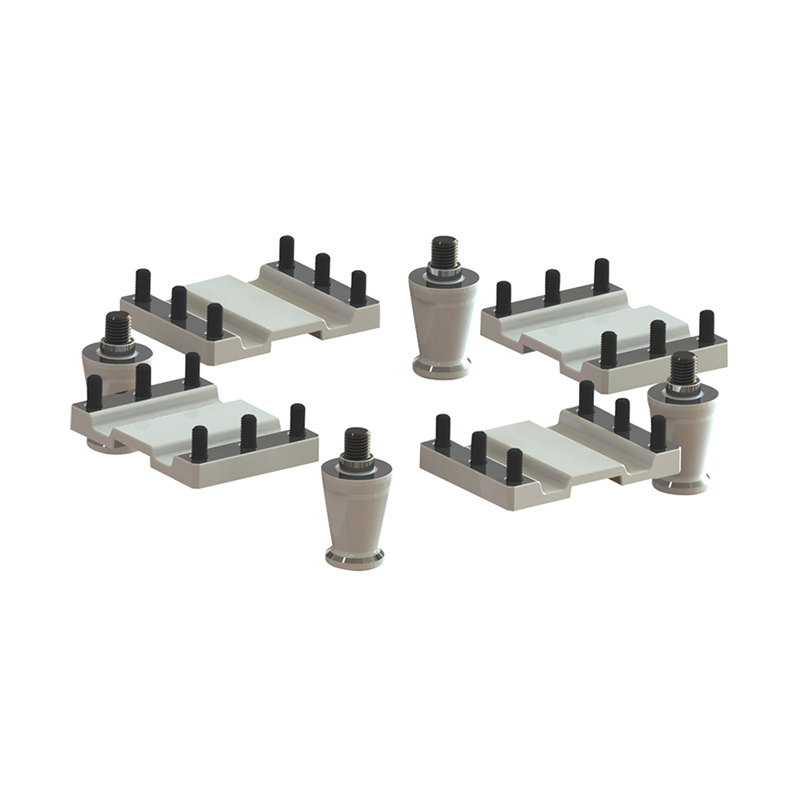

PO-UPC0005-UPC Centering Plate

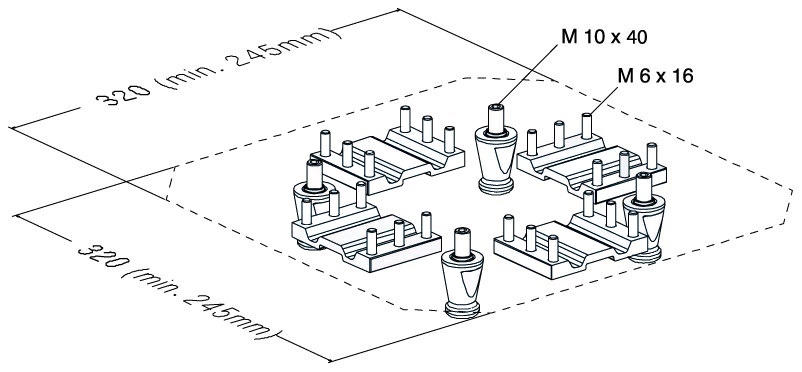

UPC centering segments and chucking spigots ER-024562

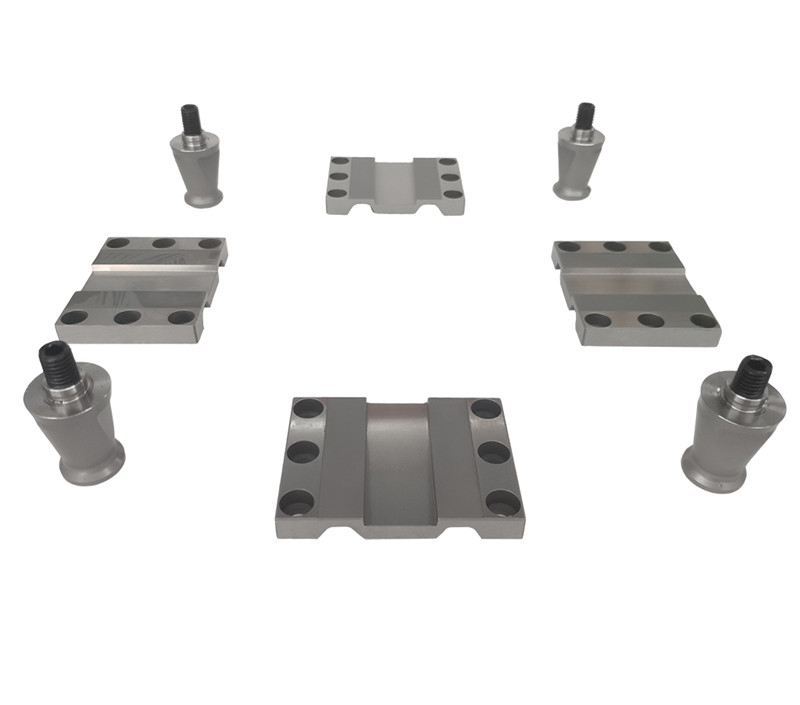

Product Name: UPC Centering Segments and Chucking Spigot ER-024562

Item No.: PO-UPC0005

Description: POFI UPC Centering Segments and Chucking Spigot is compatible with EROWA UPC. And it is euqivalent to ER-024562. It applies to produce special UPC pallets. Product mounting on the plate from below with bolts through the plate. Easy to assemble on the PreSet UPC presetting station ER-014309.


Previous:
Next:
UPC Centering segments and chucking spigots ER-024562 Spigot UPC Pallet Chucking Spigot Equivalent EROWA models
