Expanding mandrels Φ10mm 3Refix 3R-901-10E 3R-901-10RS

Expanding mandrels Φ10mm 3Refix 3R-901-10E 3R-901-10RS

Expanding mandrels Φ100mm is compatible with System 3R. It is equivalent to 3Refix expanding mandrels 3R-901-10E 3R-901-10RS. It applies to determine the position on reference machine table. First mandrel is to determine X/Y-position and second to determine to the angle.


Availability:



Inquire

Product Description

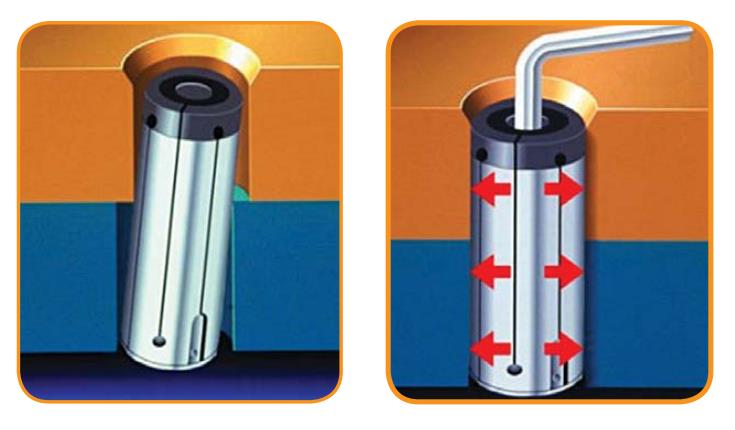

Expanding mandre-l-Demostrate

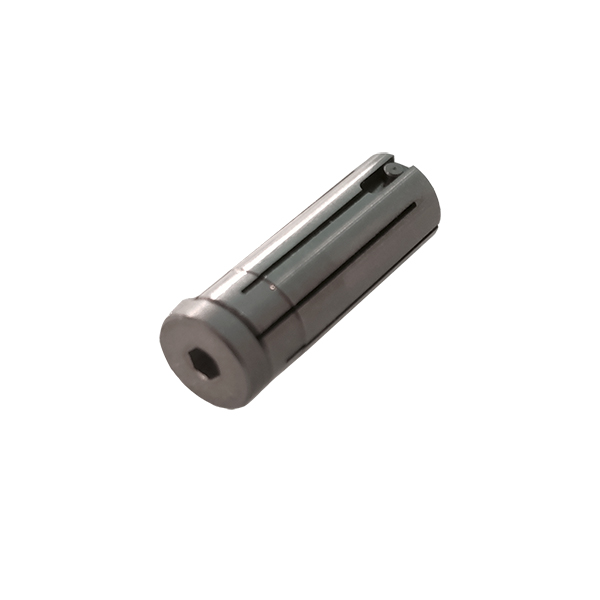

3R-901-10RS-Expanding Mandrel-1-600

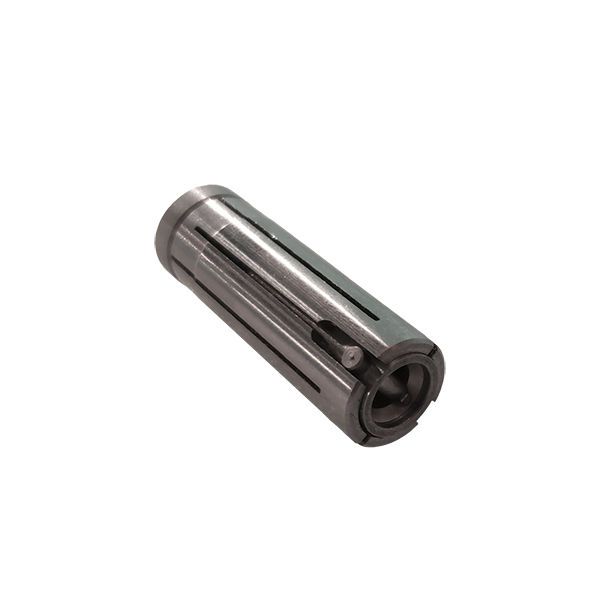

3R-901-10RS-Expanding Mandrel-2-600

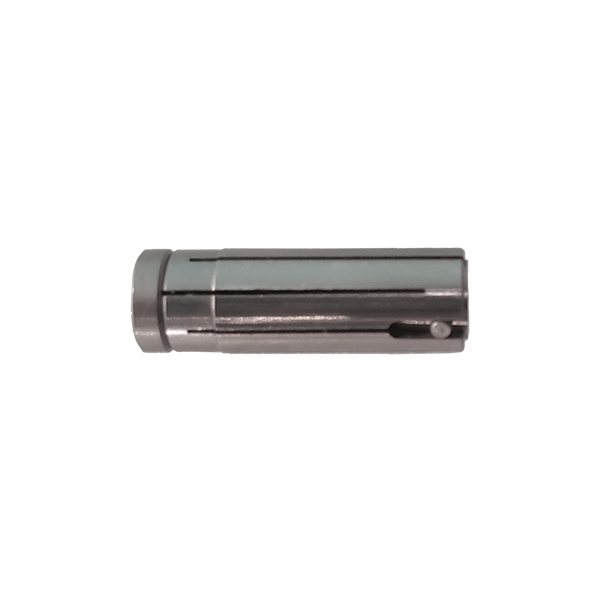

3R-901-10RS-Expanding Mandrel-3-600

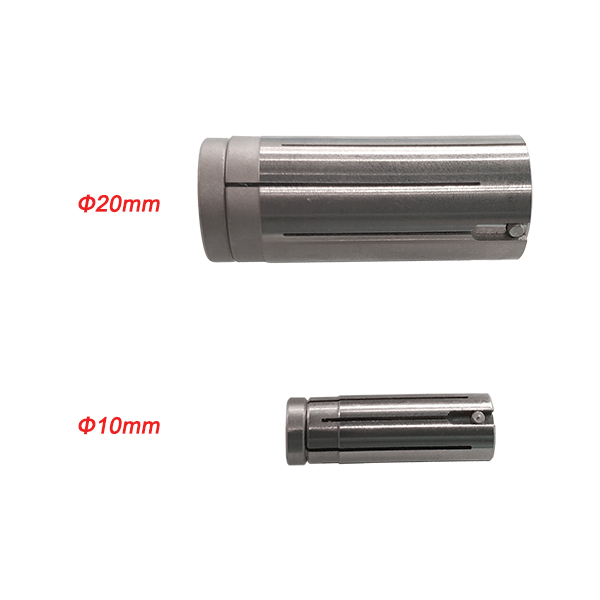

Expanding mandrel-4-Specification

Product name: Expanding mandrels Φ10mm 3Refix 3R-901-10E 3R-901-10RS

Item No.: PO-Q0009

Description: Expanding mandrels Φ100mm is compatible with System 3R. It is equivalent to 3Refix expanding mandrels 3R-901-10E 3R-901-10RS. It applies to determine the position on reference machine table. First mandrel is to determine X/Y-position and second to determine to the angle.

Expanding mandrels Φ10mm 3Refix 3R-901-10E 3R-901-10RS MacroStd System 3R
