SNS Mechanical Valve S3HL-06 Air Control Unit

SNS Mechanical Valve S3HL-06 is a manual air control unit for air flow which leads pneumatic chuck clamping / unclamping.
Operation pressure: maximum up to 0.8 Mpa
Operation temperature: -5~60°C
Grease requirement: not necessary
Availability:
Inquire

sharethis sharing button

  • S3HL

  • SNS

  • PO-Q0018

SNS S3HL-06 Mechanical Valve Air Control Unit

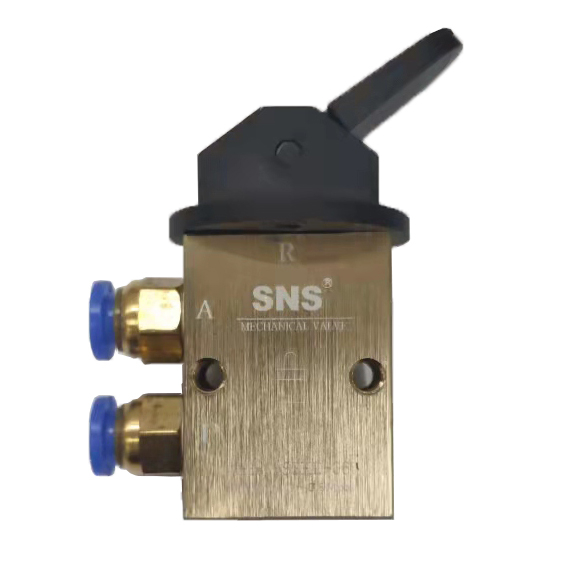

SNS S3HL-06

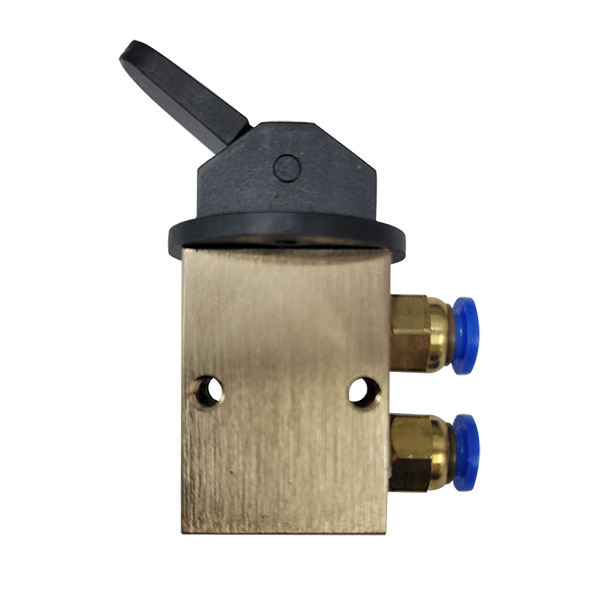

PO-Q0018-SNS Mechanical Valve-2-600

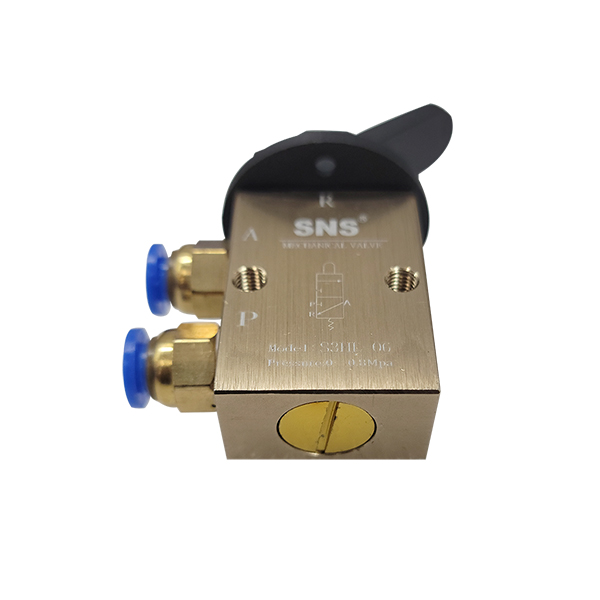

PO-Q0018-SNS Mechanical Valve-3-600

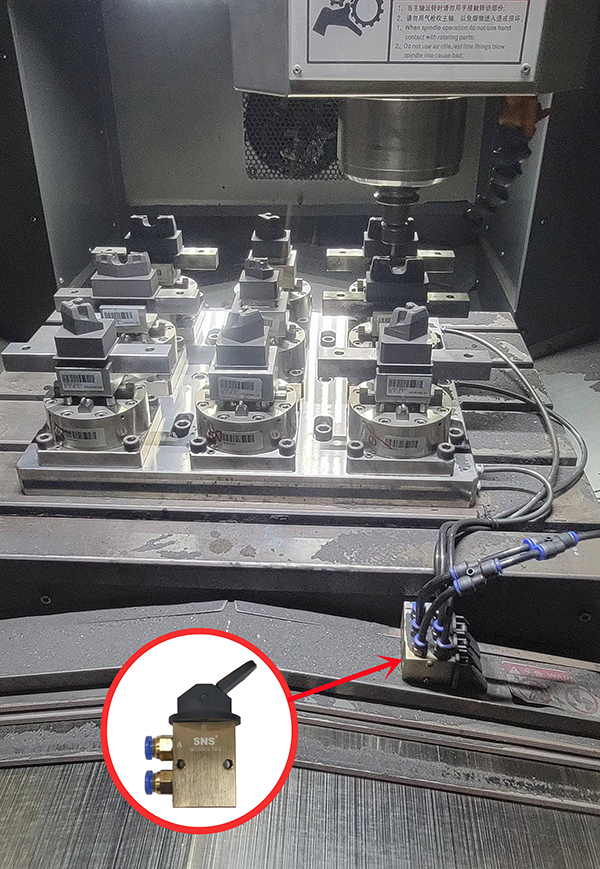

案例图-600


Product Name: SNS Mechanical Valve S3HL-06 Air Control Unit

Item No.: PO-Q0018

Description:

SNS Mechanical Valve S3HL-06 is a manual air control unit for air flow which leads pneumatic chuck clamping / unclamping.

Operation pressure: maximum up to 0.8 Mpa

Operation temperature: -5~60°C


Previous:
Next:
SNS Mechanical Valve S3HL-06 Air Control Unit Air Control Unit PO-Q0018 Mechanical Valve
