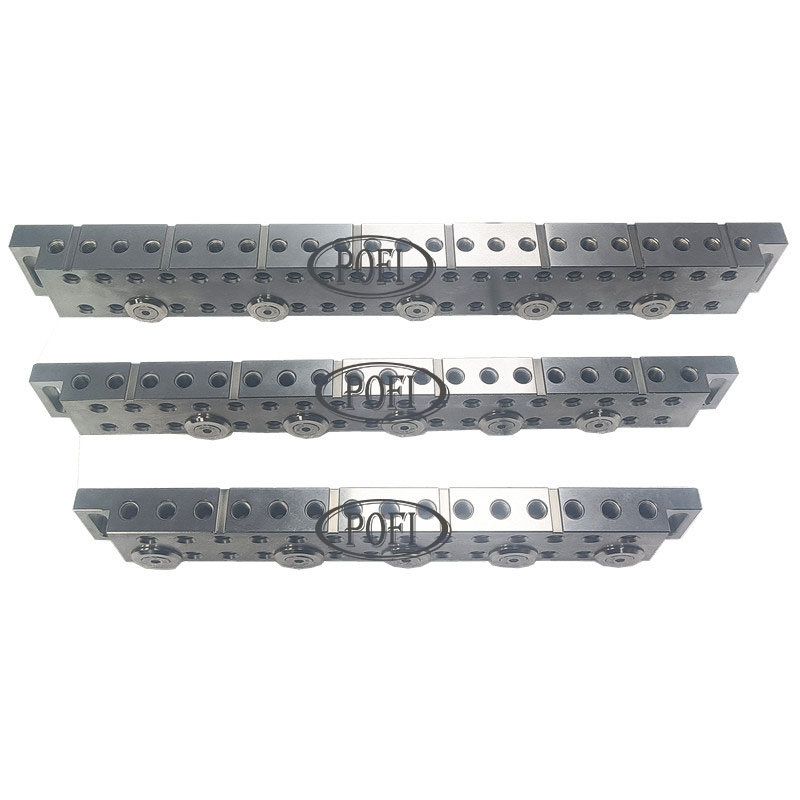

POFI Clamping Beam 460 Mm ER-017648 for Wire Edm Machining

POFI Clamping Beam 460 Mm, the same as ER-017648, used for Wire Edm Machining, to clamp workpieces with clamping claws on Z-discs.
Cross boreholes, ground version.
Clamped: manually
Width of clamping beam:56mm
Height of clamping beam:36mm
Recess for base:23mm
Length of clamping beam:460mm


Availability:



Inquire

Product Description

POFI Clamping Beam 460 Mm, the same as ER-017648, used for Wire Edm Machining, to clamp workpieces with clamping claws on Z-discs.

Cross boreholes, ground version.

Clamped: manually

Width of clamping beam:56mm

Height of clamping beam:36mm

Recess for base:23mm

Length of clamping beam:460mm

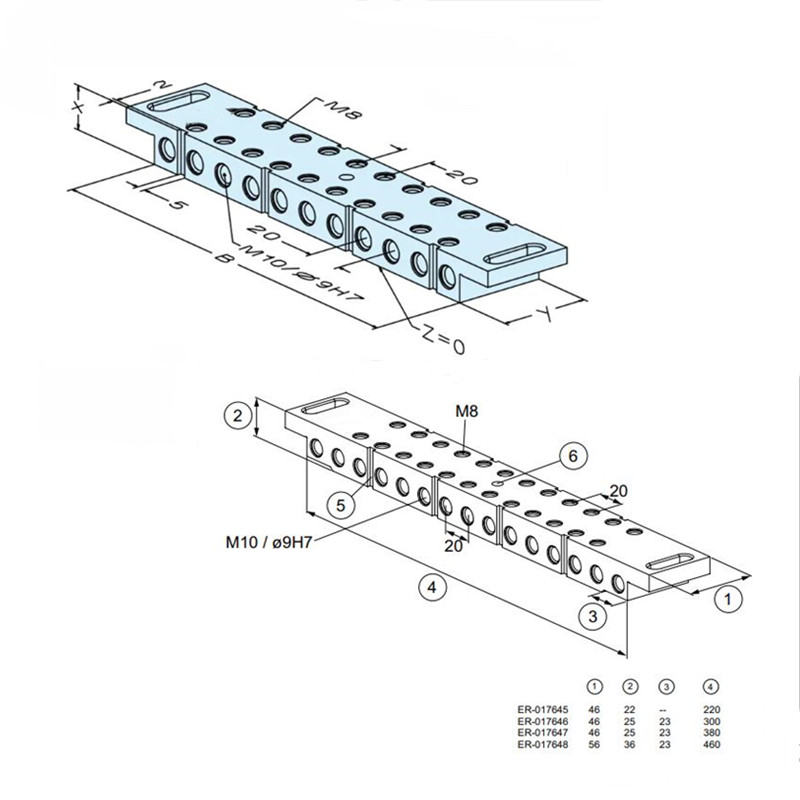

ER-017647 ER-017646ER-017648

Clamping Beam Clamping Beam 460 Mm POFI Clamping Beam POFI Clamping Beam 460 Mm ER-017648 Clamping Beam 460 Mm ER-017648 Clamping Beam 460 Mm for Wire Edm Machining POFI Clamping Beam 460 Mm ER-017648 for Wire Edm Machining erowa clamping beam
