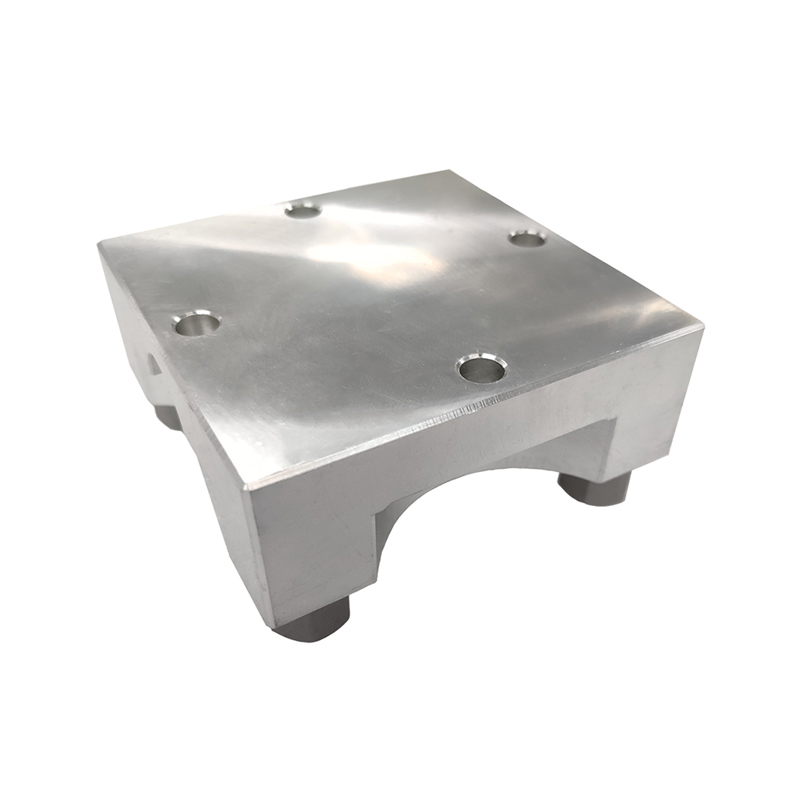

Uniplate ALU ER-010627

Uniplate ALU is compatible with EROWA ITS System and it is equivalent to ER-010627. It is made of Aluminum, system size 100 and with 4 x M8 supporting feets. It applys to mount electrodes and workpieces with a base surface of more than 70mm. Workpieces and electrodes are mounted by 4 x M6 bolts into the base surface.
Availability:

Uniplate Alu-ER010627-1

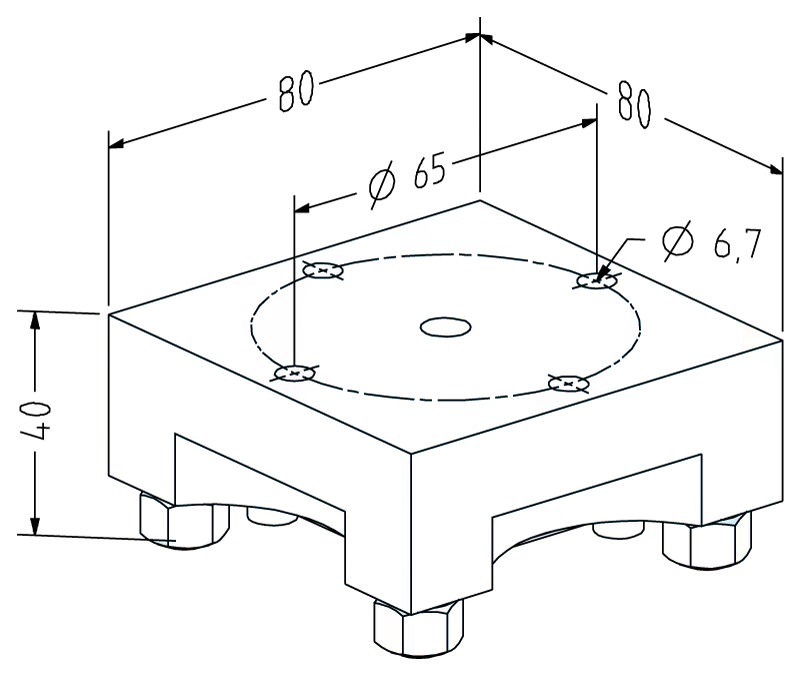

Uniplate Alu ER-010627 Specification


Product Name: Uniplate ALU ER-010627


Description: Uniplate ALU is compatible with EROWA ITS System and it is equivalent to ER-010627. It is made of Aluminum, system size 100 and with 4 x M8 supporting feets. It applys to mount electrodes and workpieces with a base surface of more than 70mm. Workpieces and electrodes are mounted by 4 x M6 bolts into the base surface.
