Fixture for Tiny Component 50x200mm

Fixture for Tiny Component 50x200mm is particularly for clamping workpiece size maximum to 50x200mm while doing EDM machining. It can compatible with EROWA or System 3R depends on what centering segments you choose. If fixture comes with Centering Plaet G INOX ER-036658, it would use with EROWA chuck. Or if fixture comes with 70x70 Pallet Macro 3R-601.7E-P, it would be used with System 3R chuck.
Availability:
sharethis sharing button

cse

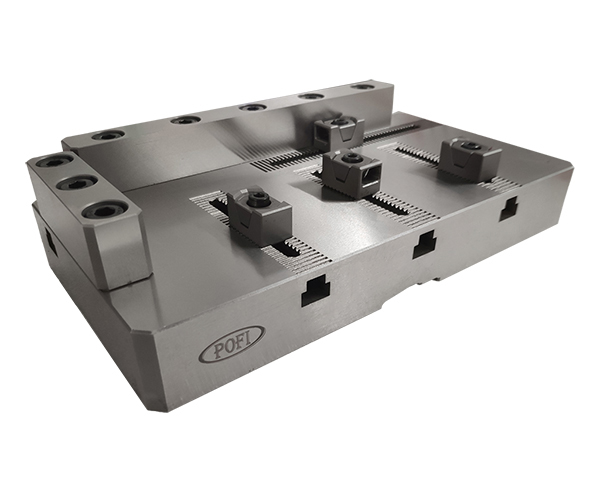

Fixture for 50X200mm components-1-600

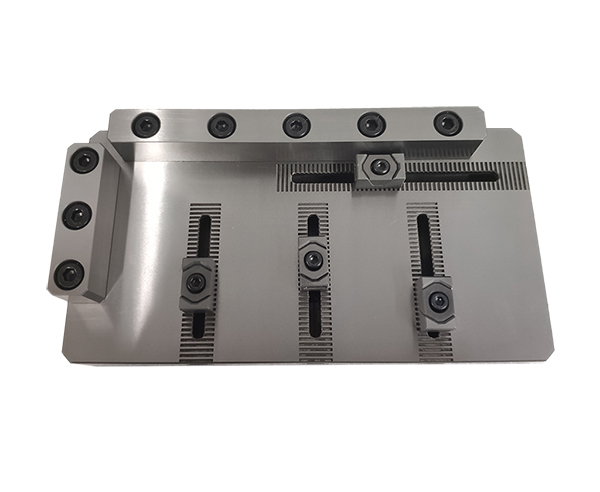

Fixture for 50X200mm components-2-600

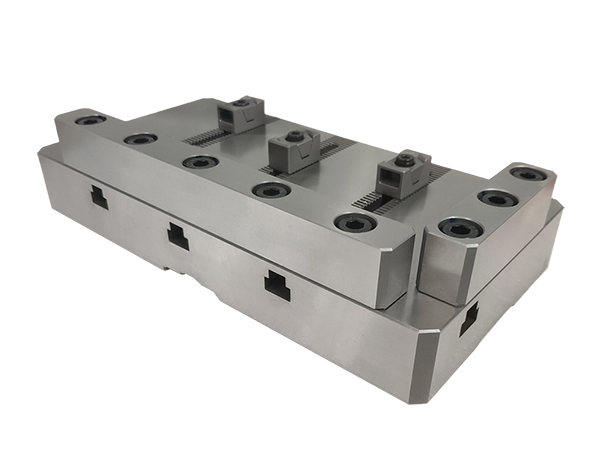

Fixture for 50X200mm components-3-600

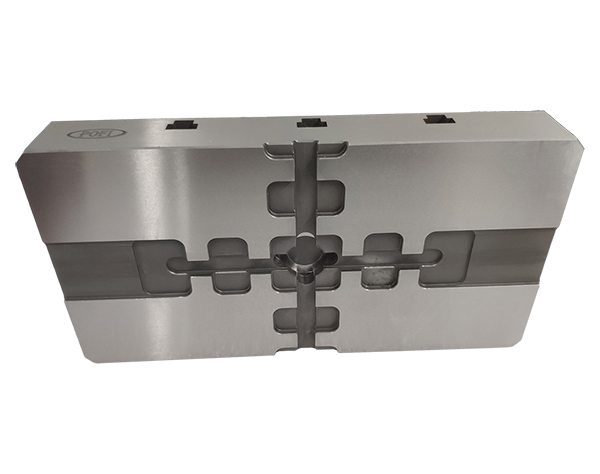

Fixture for 50X200mm components-4-600

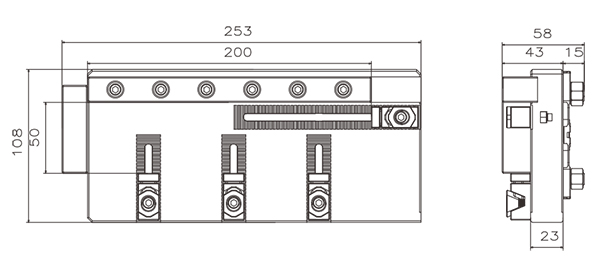

Fixture for 50X200mm components-specification


Product Name: Fixture for Tiny Component 50x200mm

Item No.: PO-V0012

Description: Fixture for Tiny Component 50x200mm is particularly for clamping workpiece size maximum to 50x200mm while doing EDM machining. It can compatible with EROWA or System 3R depends on what centering segments you choose. If fixture comes with Centering Plaet G INOX ER-036658, it would use with EROWA chuck. Or if fixture comes with 70x70 Pallet Macro 3R-601.7E-P, it would be used with System 3R chuck.
