EDM Quick Chuck 50 with Vertical Extension Arm ER-034387

EDM Quick Chuck 50 with Vertical Extension Arm is comaptible with EROWA ITS system and it is equivalent to QuickChuck 50 ER-034387 mounting on a vertical extension arm. Product comes with Chuckin Spigot F/A ER-007980 and 1 piece of chuck handle. It applies to extend working area for QuickChuck when doing EDM/WEDM. The extemsion arm can be customized as your required.


Availability:


Inquire

Product Description

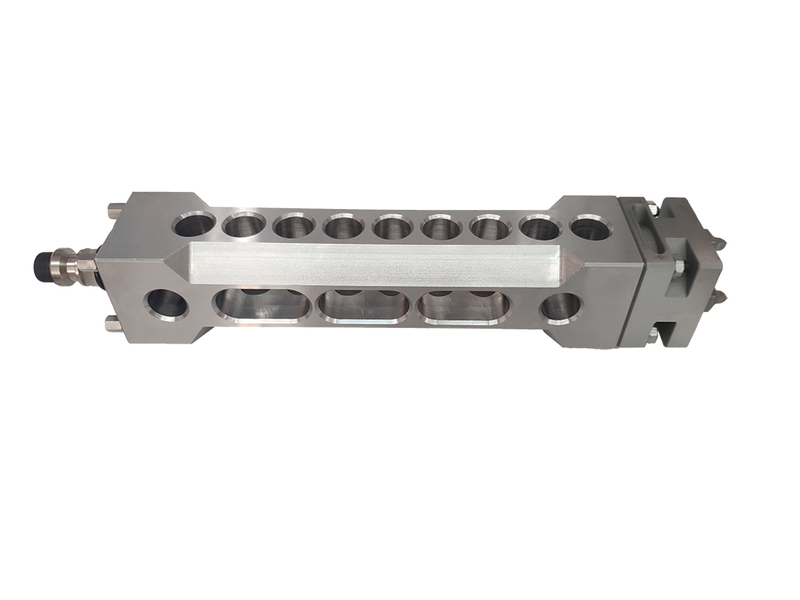

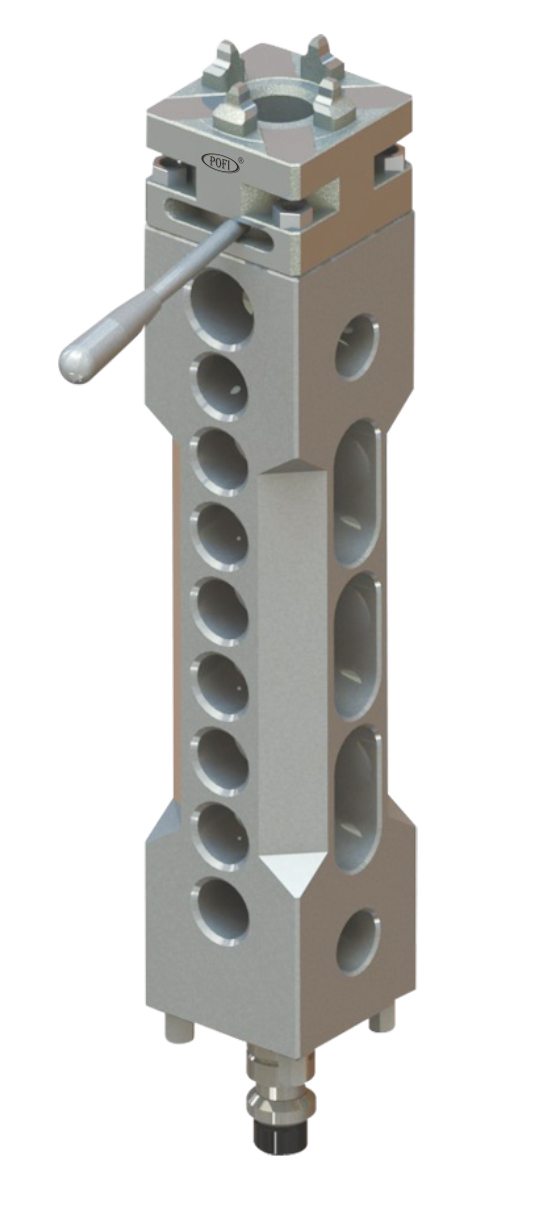

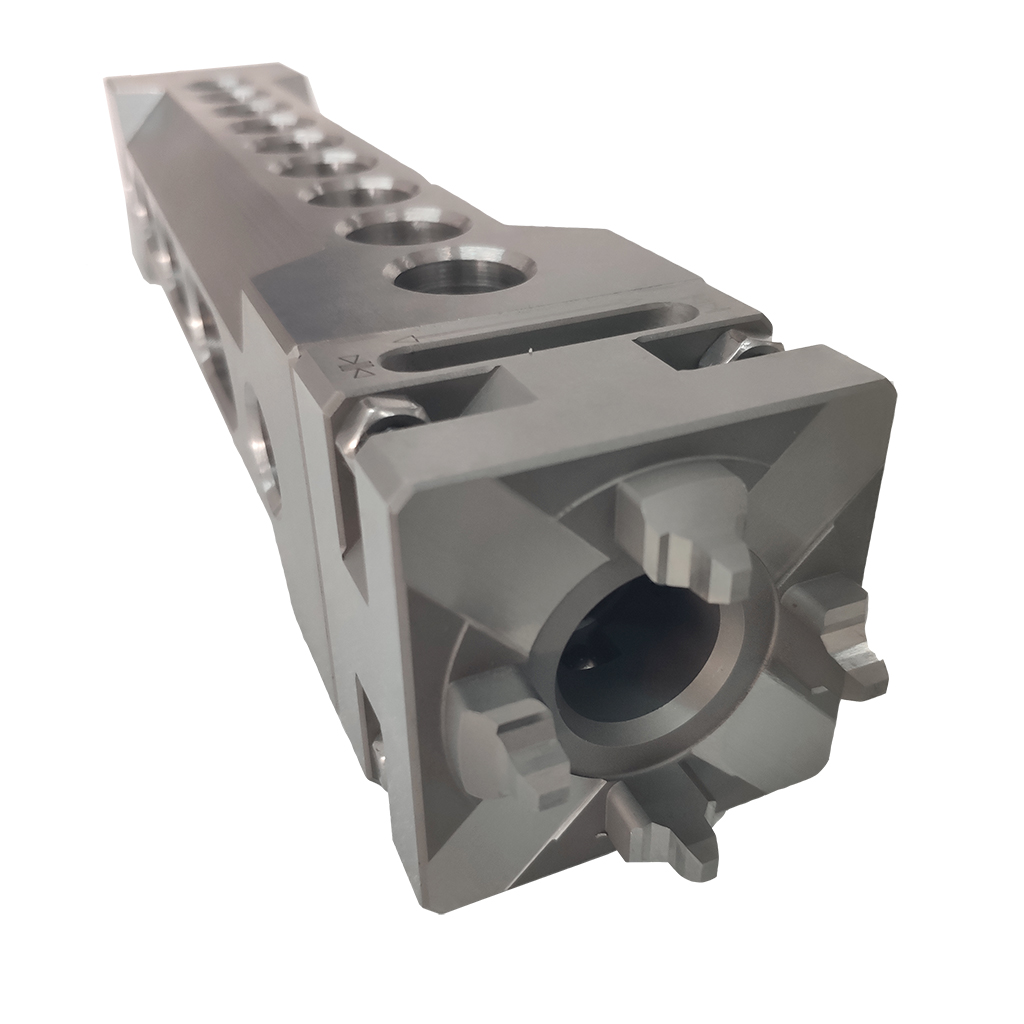

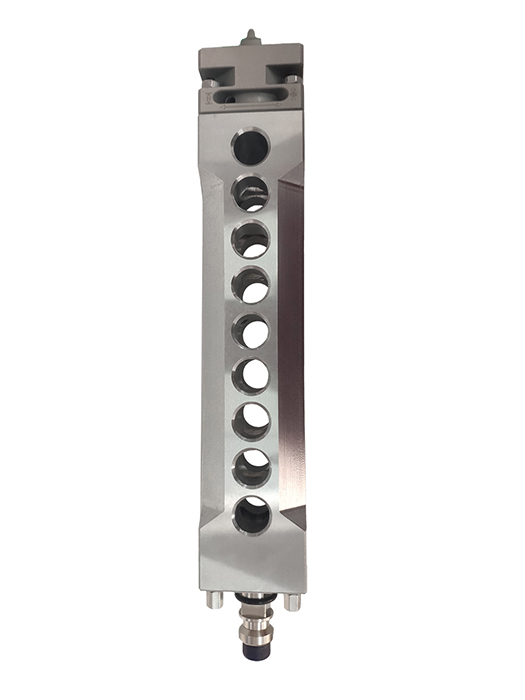

Quick chuck 50 with extension Rod

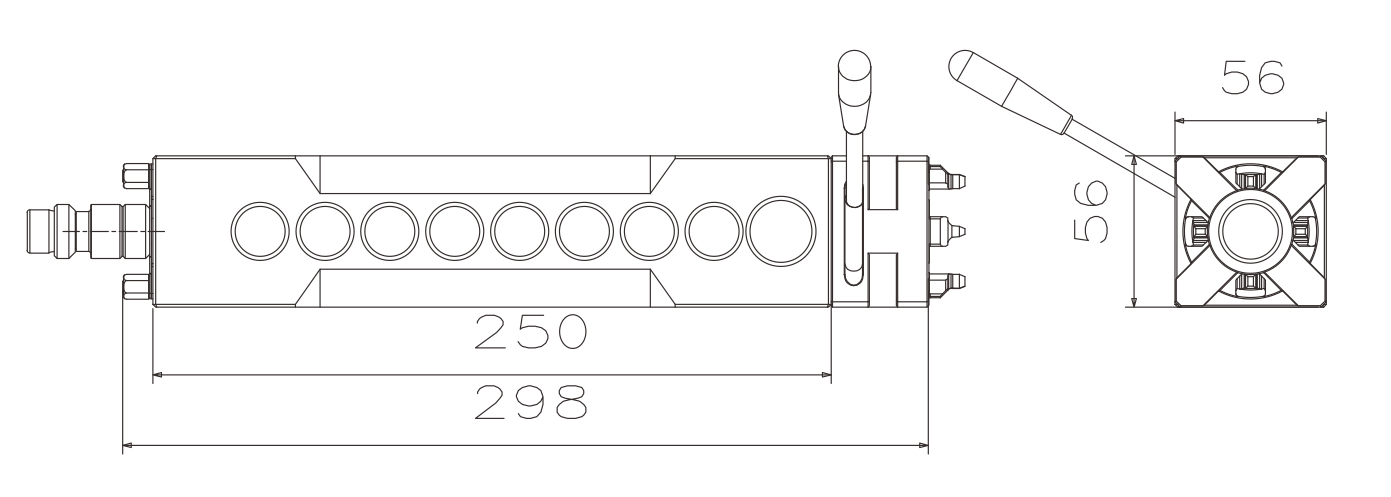

Quick chuck 50 with extension Rod-Specification

Product Name: EDM Quick Chuck 50 with Vertical Extension Arm ER-034387

Item No.: PO-L0007

Description: EDM Quick Chuck 50 with Vertical Extension Arm is comaptible with EROWA ITS system and it is equivalent to QuickChuck 50 ER-034387 mounting on a vertical extension arm. Product comes with Chuckin Spigot F/A ER-007980 and 1 piece of chuck handle. It applies to extend working area for QuickChuck when doing EDM/WEDM. The extemsion arm can be customized as your required.

EDM Quick Chuck 50 with Vertical Extension Arm ER-034387 EDM Chuck EROWA Quick Chuck 50 EROWA Chuck ITS Chuck Equivalent EROWA models
