9 in1 Tiny Pneumatic Chuck 50 RSA ER-011803

9 in 1 tiny pneumatic chuck is compatible with EROWA ITS system. It is equivalent to 9 pieces of quick chuck 50 RSA ER-011803 combined together. There are 9 locators which are designed for milling 9 workpiece once at a time. This design is perfect for small size electrode processing and maximum improve your production efficiency in the limited space of CNC table. Product requires air pressure 6bars minimum, clamping force for every chuck locator can up to 6000N. It is controlled by air gun or pneumatic valves. Every 3 locators are controlled by 1 pneumatic valve.
  • PO-F0001
  • POFI

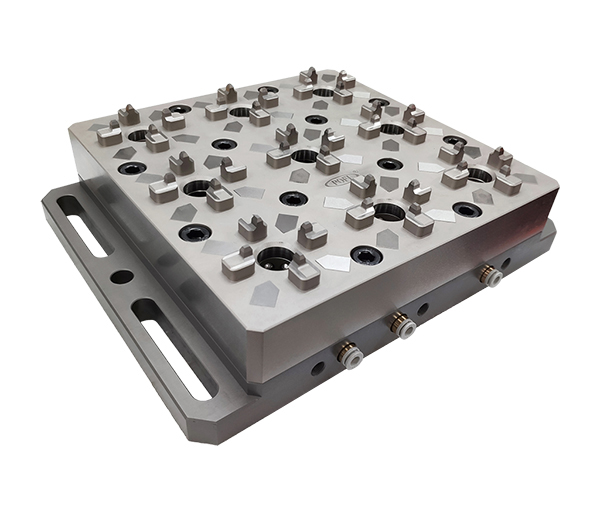

9 in 1 Tiny Pneumatic Chuck-600

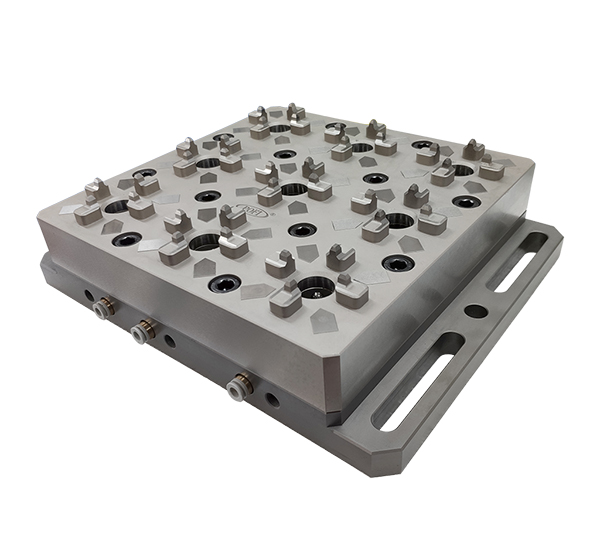

9 in 1 Tiny Pneumatic Chuck-1-600

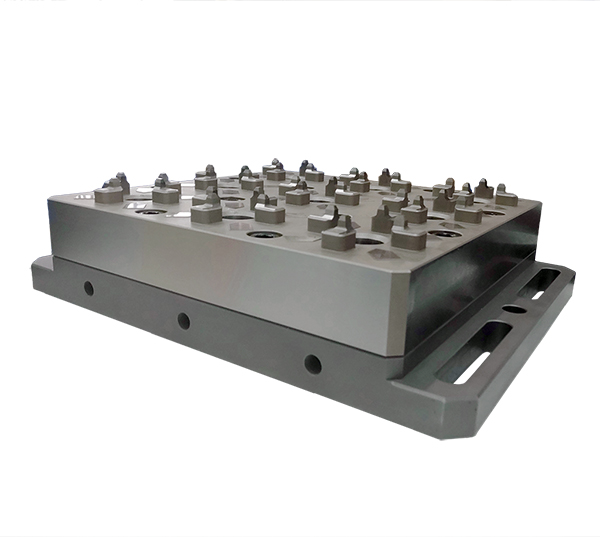

9 in 1 Tiny Pneumatic Chuck-2-600

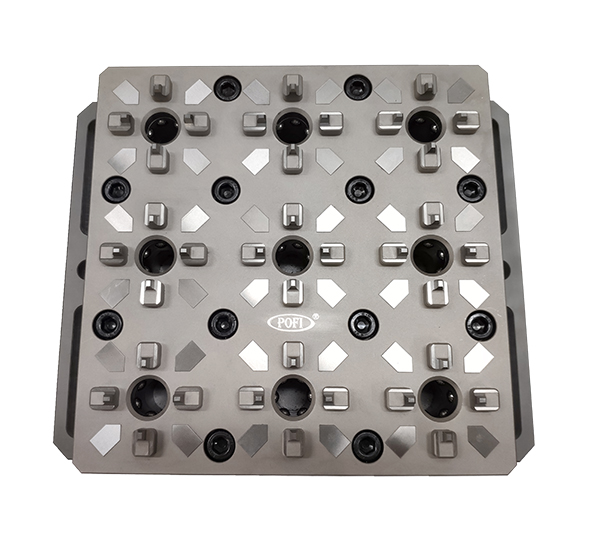

9 in 1 Tiny Pneumatic Chuck-3-600

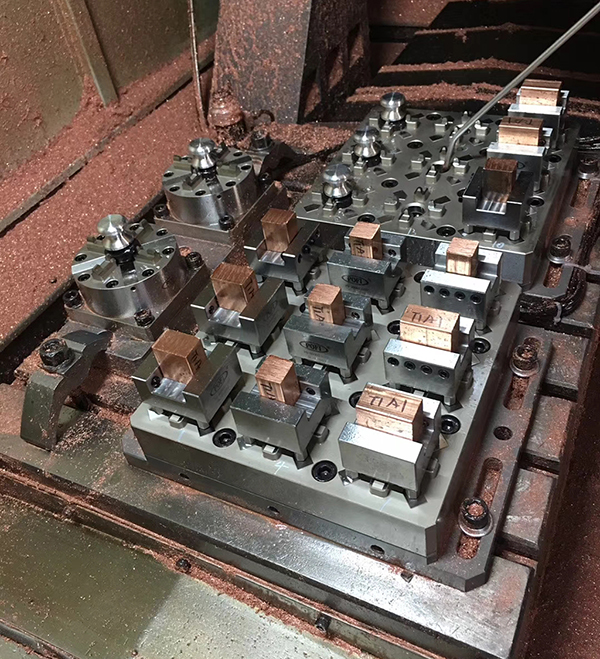

9 in 1 Tiny Pneumatic Chuck-4-600

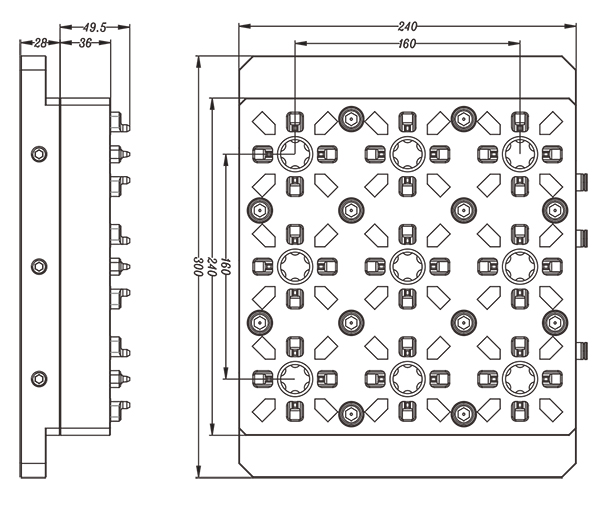

9 in 1 Tiny Pneumatic Chuck 50 specification-600


Product Name: 9 in1 Tiny Pneumatic Chuck 50 RSA ER-011803

Item No.: PO-F0001

Description: 9 in 1 tiny pneumatic chuck is compatible with EROWA ITS system. It is equivalent to 9 pieces of quick chuck 50 RSA ER-011803 combined together. There are 9 locators which are designed for milling 9 workpiece once at a time. This design is perfect for small size electrode processing and maximum improve your production efficiency in the limited space of CNC table. Product requires air pressure 6bars minimum, clamping force for every chuck locator can up to 6000N.  It is controlled by air gun or pneumatic valves. Every 3 locators are controlled by 1 pneumatic valve.
