EDM Spring-loaded Sensor with Ball Ø 5 Mm ER-008638

EDM Spring-loaded Sensor with Ball Ø 5 Mm ER-008638

Version Holder with spring-loaded sensing pin and tungsten
carbide ball. Overrun protection: X, Y, Z 1 mm.
Repetition accuracy: X, Z, Y 0.002 mm.
Application Automatic measurement of workpieces in CNC EDM-sinking centers.
Availability:
Inquire

sharethis sharing button

  • POFI

  • 8466200090

EDM Spring-loaded Sensor with Ball Ø 5 Mm ER-008638


Version Holder with spring-loaded sensing pin and tungsten

carbide ball. Overrun protection: X, Y, Z 1 mm.

Repetition accuracy: X, Z, Y 0.002 mm.

Application Automatic measurement of workpieces in CNC EDM-sinking centers.

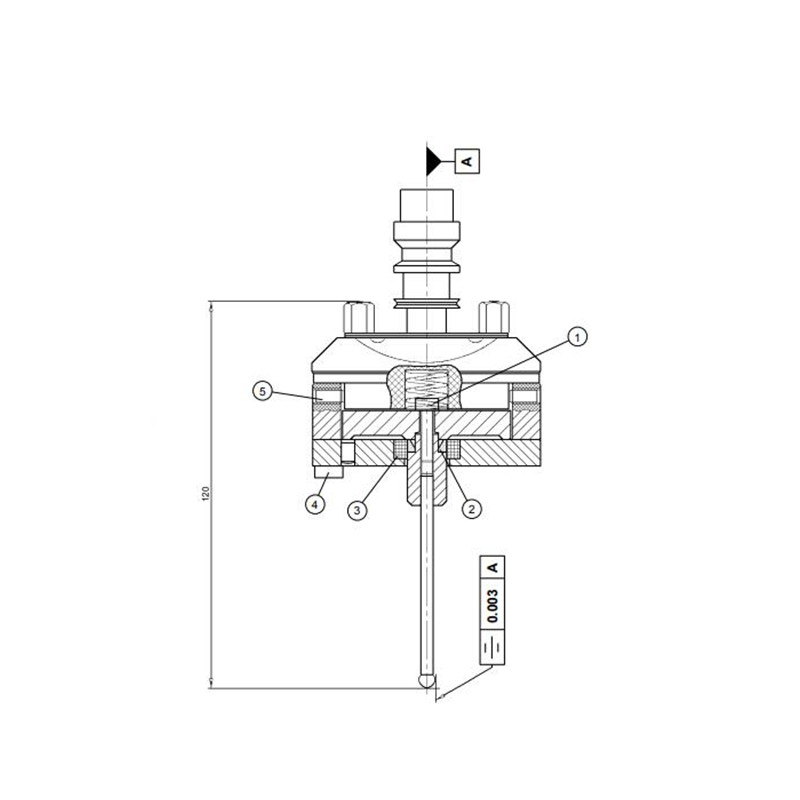

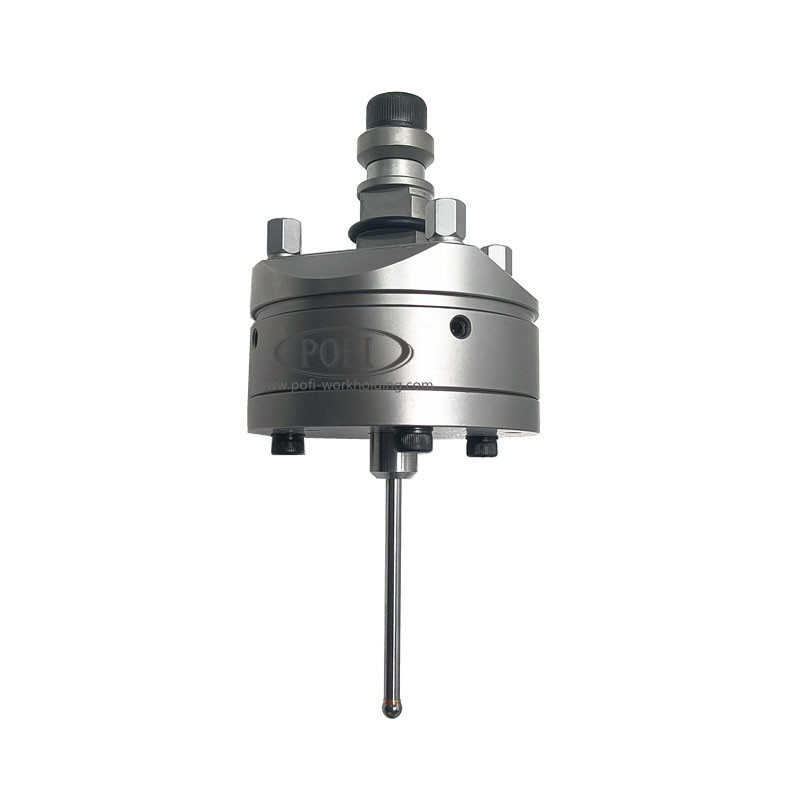

1 China price ER-008638 Sensor with ball ø 5 mm_副本probe with ball 5mm

Previous:
Next:
EROWA Spring-loaded sensor ER-008638 Sensor with ball ø 5 mm Holder with spring-loaded sensing pin and tungsten carbide ball.
