Flexible Tooling Vise

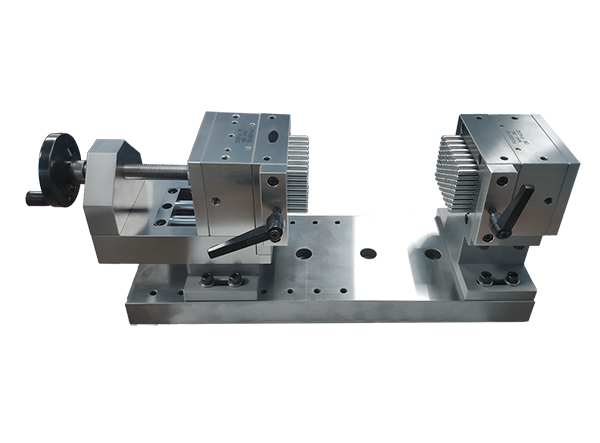

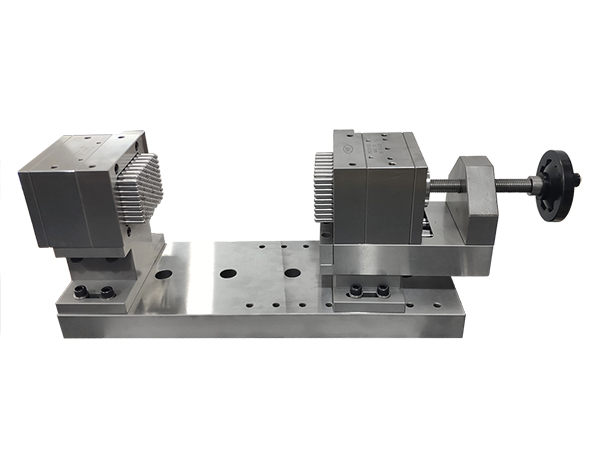

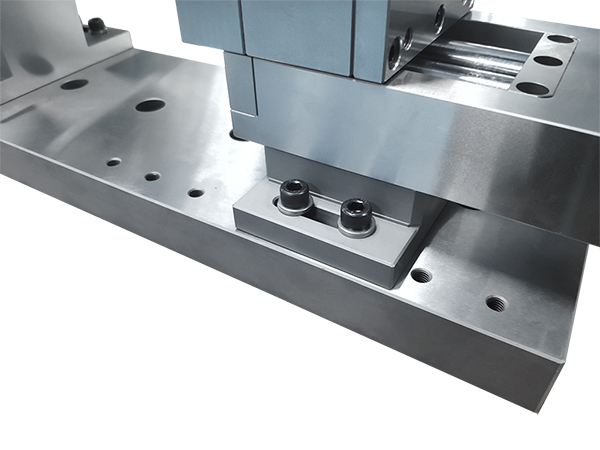

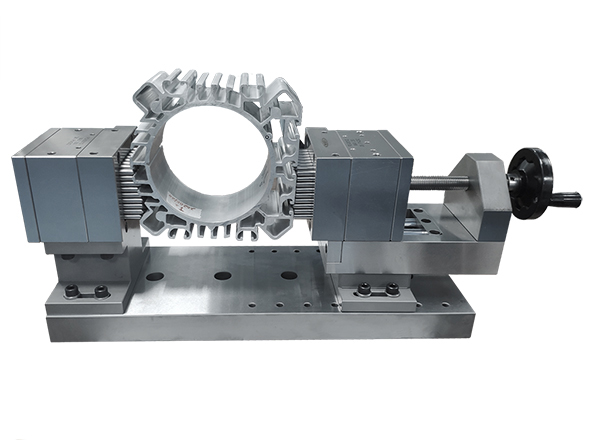

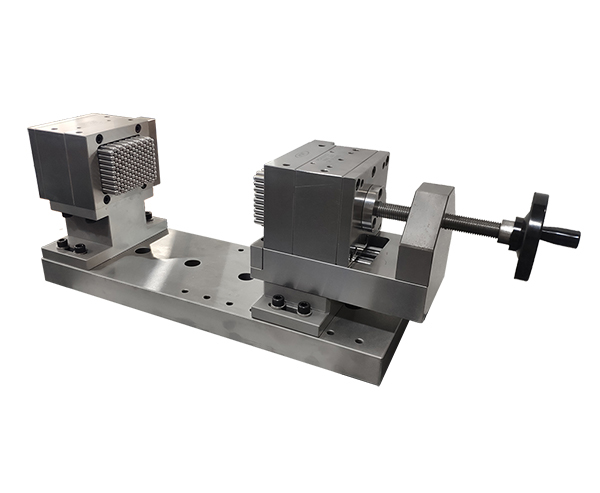

Flexible Tooling Vise is composed by 2 pcs of flexible tooling fixtures, one of them is fixed at one side and the other is movable by rolling the wheel on the other side. And there are several groups of screw holes in the vise baseplate. People can change and fix different position of the whole part of movable flexible tooling fixture according to the workpiece size. The pins on fixtures are flexible and able to simulate the figure of complex workpiece easily when clamping it. The application of this centering vise is for CNC machining,measurement in laboratory and assembly. The air connection on lateral side is a function for keeping fixtures from fillings after machining.
Availability:
sharethis sharing button
  • POFI

  • PO-RX0010

Flexible Tooling Vise-3-600

Flexible Tooling Vise-22-600

Flexible Tooling Vise-4-600

Flexible Tooling Vise-6-600

Flexible Tooling Vise-7-600

Product Name: Flexible Tooling Vise

Item No.: PO-RX0010

Description: Flexible Tooling Vise is composed by 2 pcs of flexible tooling fixtures, one of them is fixed at one side and the other is movable by rolling the wheel on the other side. And there are several groups of screw holes in the vise baseplate. People can change and fix different position of the whole part of movable flexible tooling fixture according to the workpiece size. The pins on fixtures are flexible and able to simulate the figure of complex workpiece easily when clamping it. The application of this centering vise is for CNC machining,measurement in laboratory and assembly. The air connection on lateral side is a function for keeping fixtures from fillings after machining.
