EROWA Compatible U15 Electrode Holder Uniholder ER-010793 ER-009223

U15 Electrode Holder Uniholder is compatible with EROWA ITS system and it is equivalent to ER-010793 and ER-009223. Product groove milled out 15.5 mm faced in the middle, and slot part can be customized as you required. RIFD chip hole and chip are provided if they are needed. Product material has 3 option: Stainless steel(B), Bras(C) and Aluminum(D). It applies to mount electrodes and workpieces with shaft sizes of up to 15mm.
Material:
  • POFI

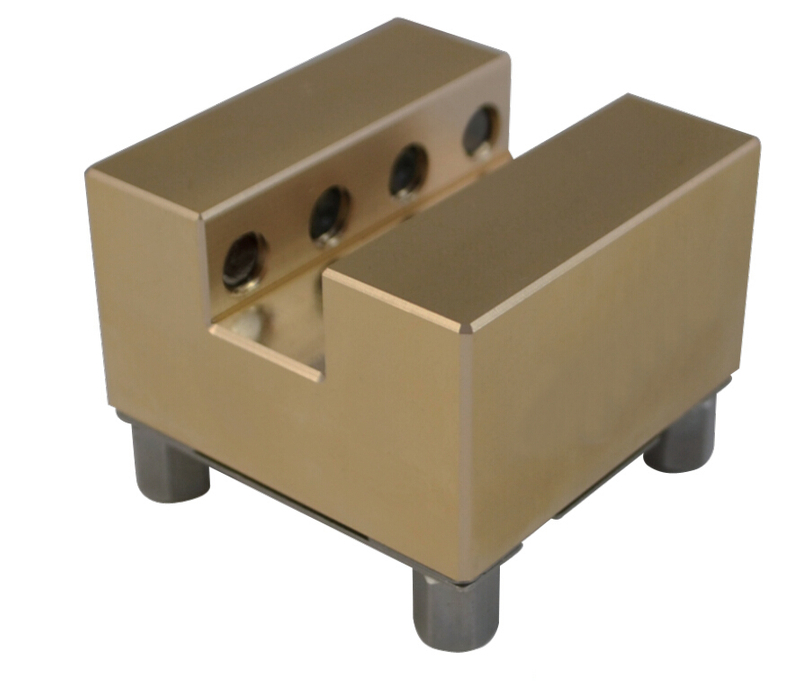

Brass Electrode Holder

C0001

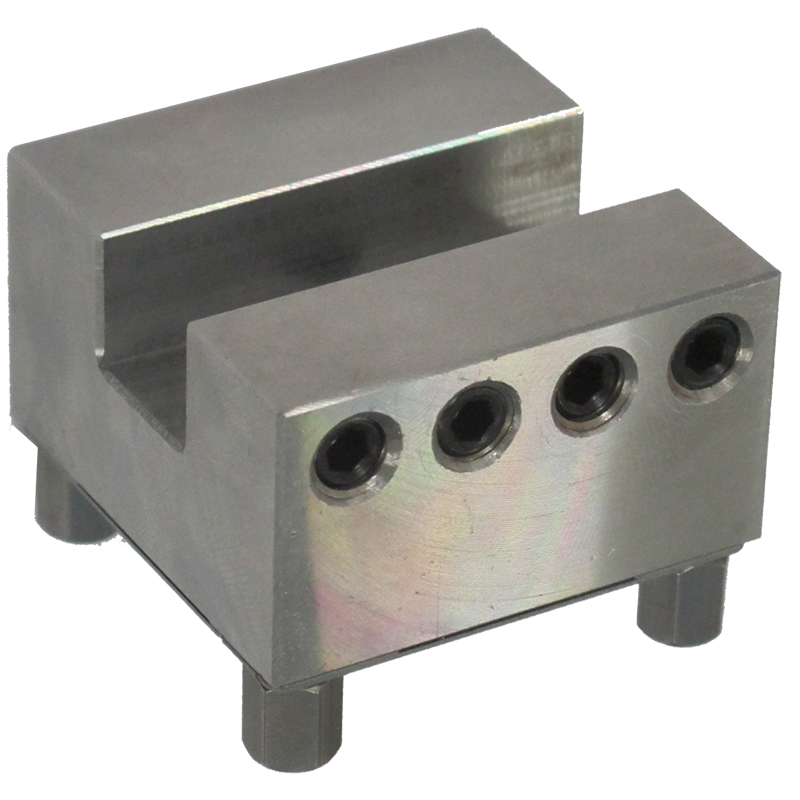

Stainless Steel Electrode Holder

PO-B0001

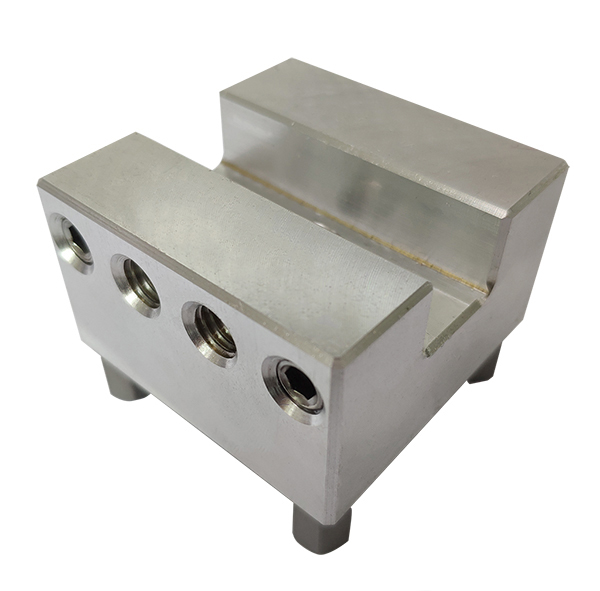

Aluminum Electrode Holder

U15 Aluminum Holder-2-600

U15 Aluminum Holder-3-600

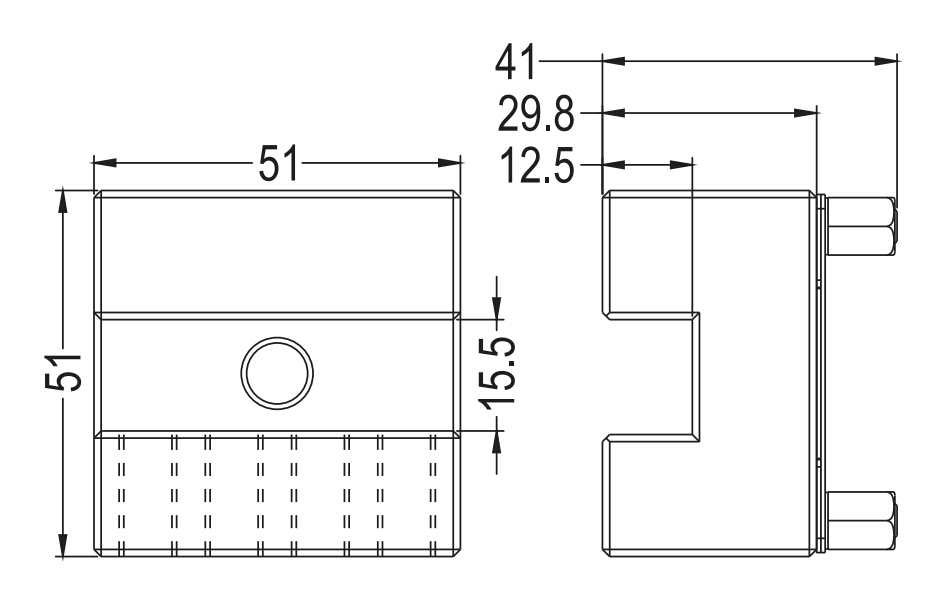

PO-C0001-U15-Specification

Product Name: EROWA Compatible U15 Electrode Holder Uniholder ER-010793 ER-009223

Item No.: PO-B0001 / PO-C0001 / PO-D0001

Description: U15 Electrode Holder Uniholder is compatible with EROWA ITS system and it is equivalent to ER-010793 and ER-009223. Product groove milled out 15.5 mm faced in the middle, and slot part can be customized as you required. RIFD chip hole and chip are provided if they are needed. Product material has 3 option: Stainless steel(B), Bras(C) and Aluminum(D). It applies to mount electrodes and workpieces with shaft sizes of up to 15mm.
