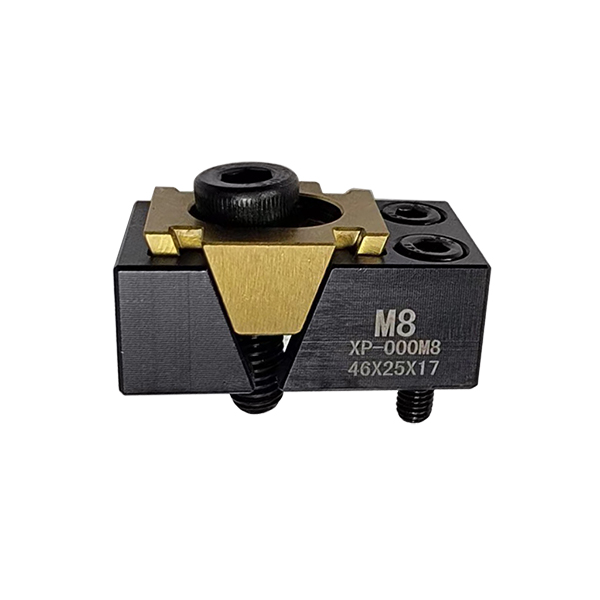

POFI M8 OK Vise Fixture

POFI M8 OK Vise Fixture is a product easily installed and clamp workpiece repaidly for people. OK Vise clamps expand to both side when M8 bolt is tightened down, simultaneously pressing workpieces against the guide and prevent their movement. Or 2 of M4 bolts are tightened up on fastening base in advance,OK vise will expand to one side as M8 bolt in the middle is tightening. It is designed to take up very little space on the fastening base. The best advantage of OK vise is reusability. Peopel is able to install it on position where there is a threaded hole fit the bolt on OK Vise. In most straightforward application, the only additional invsetment needed are the fixed stoppers.
Availability:
  • PO-XP000M8
  • POFI

POFI M8 OK Vise Fixture

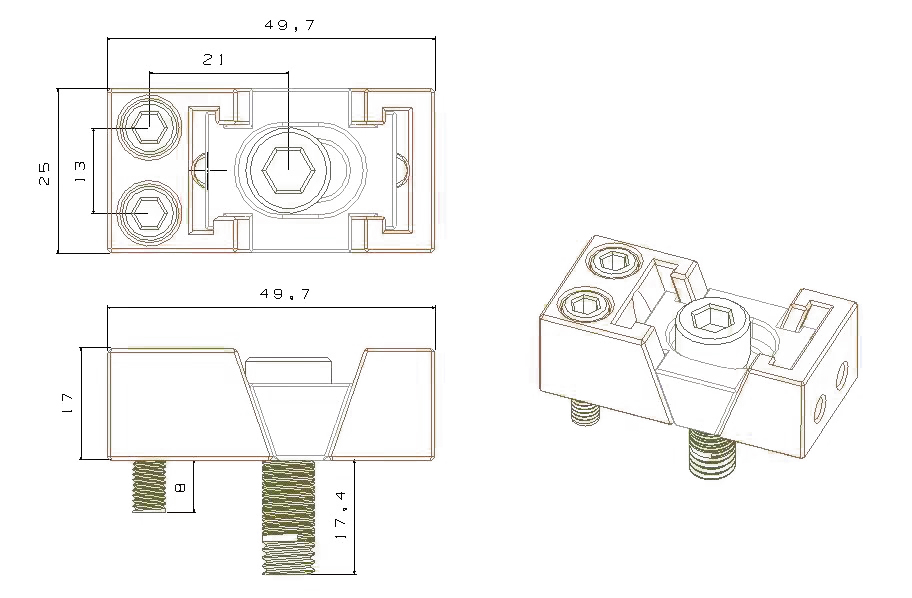

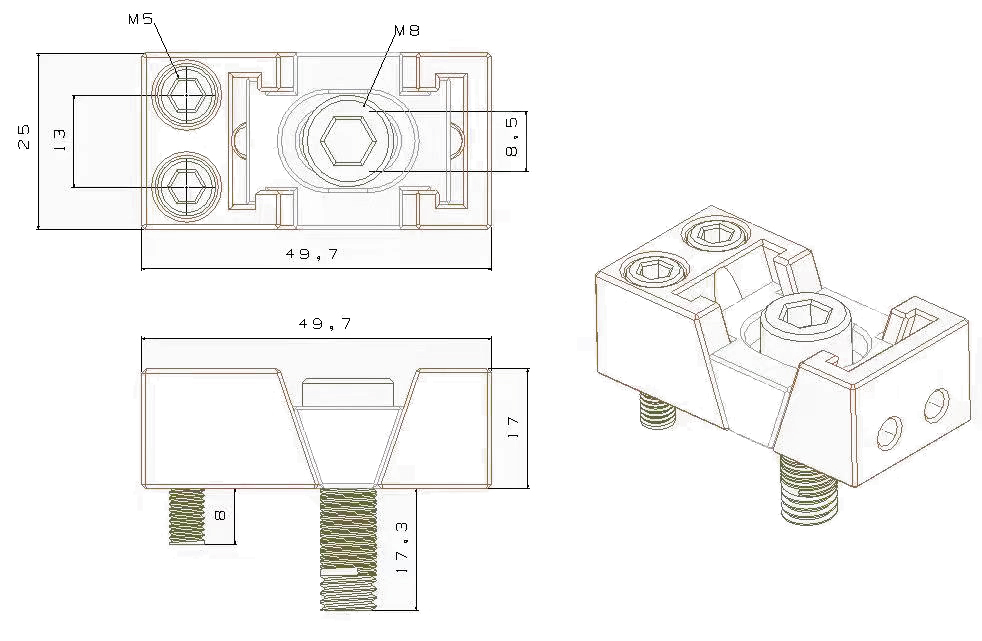

XP-00M8-M8 OK vise-1XP-00M8-M8 OK vise-specification 2

XP-00M8-M8 OK vise-specification


Product Name: POFI M8 OK Vise Fixture

Item No.: PO-XP000M8

Description: POFI M8 OK Vise Fixture is a product easily installed and clamp workpiece repaidly for people. OK Vise clamps expand to both side when M8 bolt is tightened down, simultaneously pressing workpieces against the guide and prevent their movement. Or 2 of M4 bolts are tightened up on fastening base in advance,OK vise will expand to one side as M8 bolt in the middle is tightening.  It is designed to take up very little space on the fastening base. The best advantage of OK vise is reusability. Peopel is able to install it on position where there is a threaded hole fit the bolt on OK Vise. In most straightforward application, the only additional invsetment needed are the fixed stoppers.
