Parallel Gauging Pin

Parallel gauging pin is compatible with EROWA ITS System. Centering Plate 50 ER-009214 is mounted on the buttom. It is able to check the flatness and linear tolerance by two sides and the top. It is a useful prodcut to help you to installed and adjust the chuck position on CNC milling, CMM and EDM sink Machine center.


Availability:



Inquire

Product Description

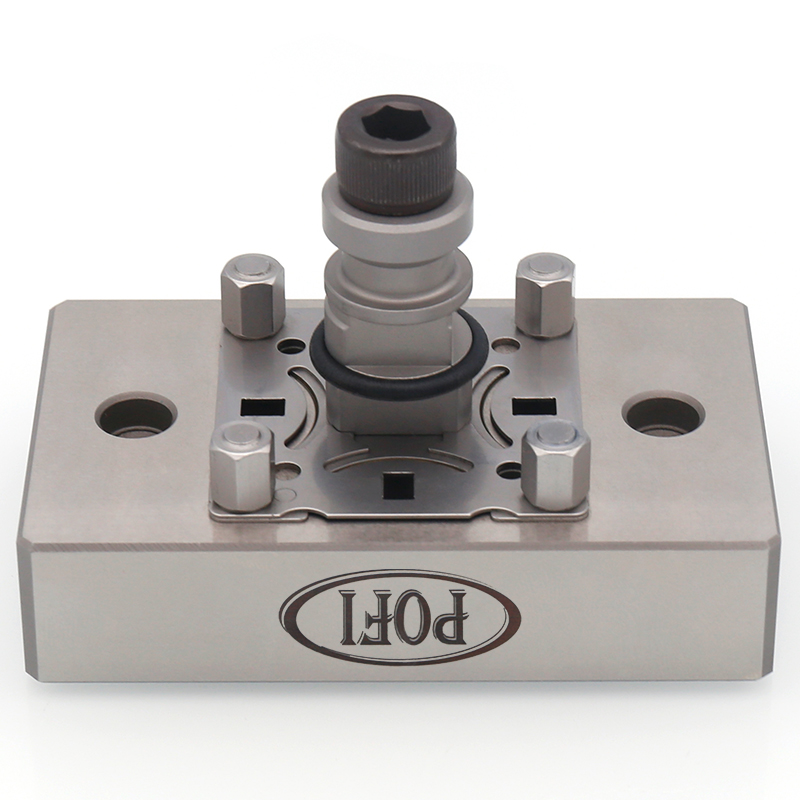

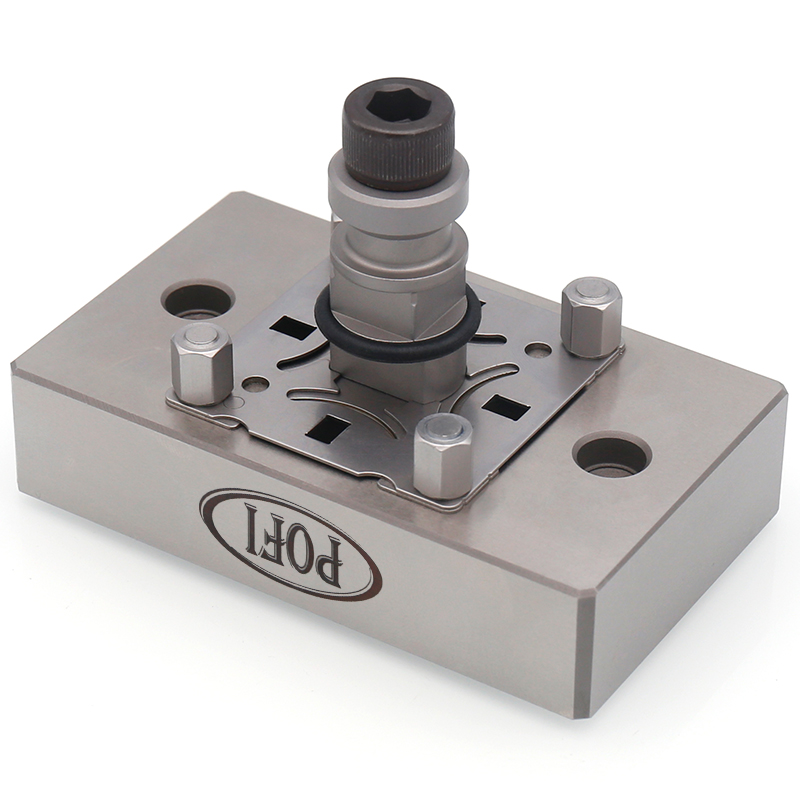

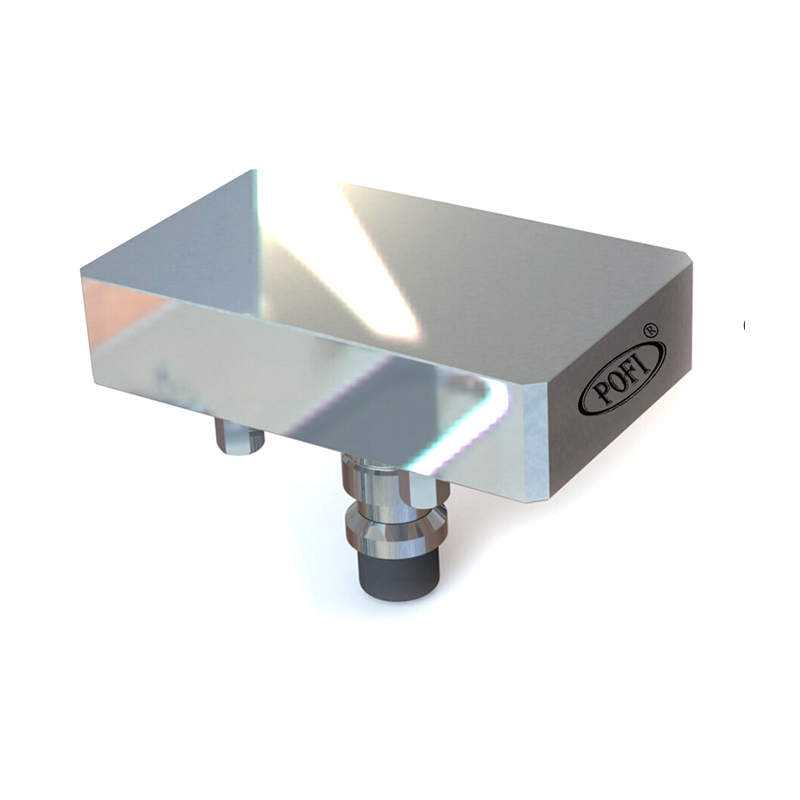

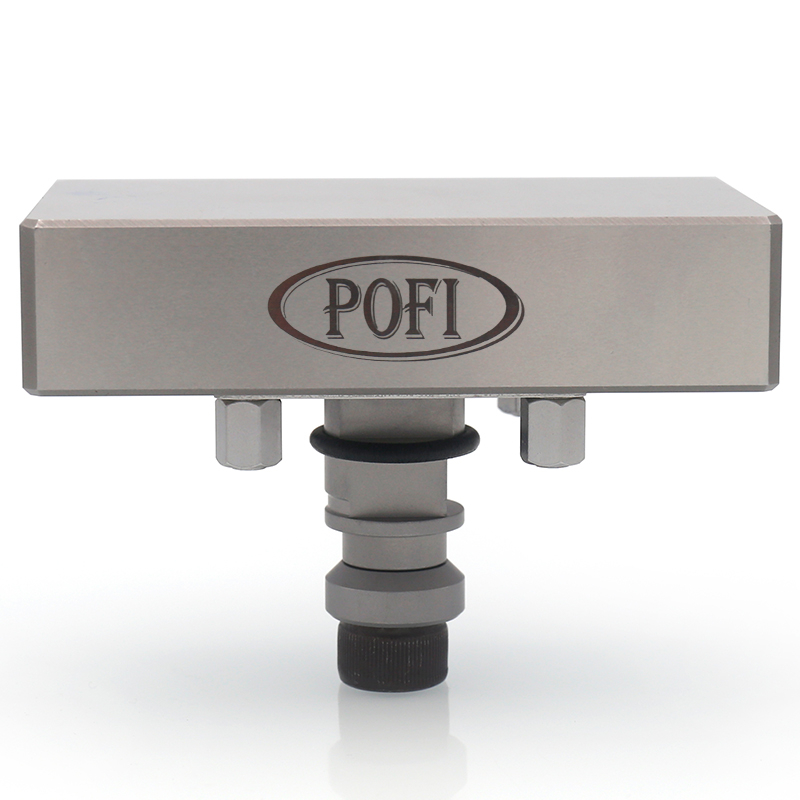

PO-N0006-ER-100x60零位基准座加LOGO4 PO-N0006-ER-100x60零位基准座加LOGO7 PO-N0006-ER-100x60零位基准座加LOGO8 PO-N0006-Parallel Gauging Pin

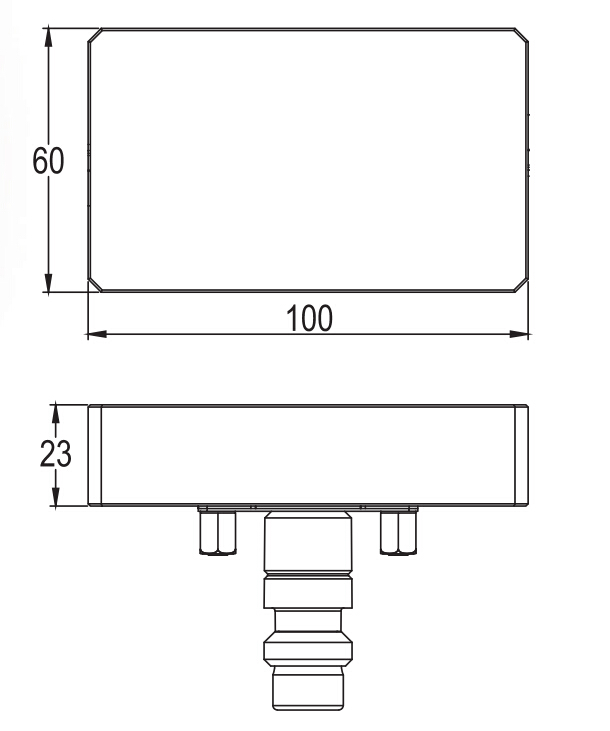

PO-N0006-Parallel Gauging Pin-Specification

Product Name: Parallel Gauging Pin

Item No.: PO-N0006

Description: Parallel gauging pin is compatible with EROWA ITS System. Centering Plate 50 ER-009214 is mounted on the buttom. It is able to check the flatness and linear tolerance by two sides and the top. It is a useful prodcut to help you to installed and adjust the chuck position on CNC milling, CMM and EDM sink Machine center.

Parallel Gauging Pin Centering Used on EDM CNC Machine
