POFI Pneumatic Chuck, Macro 3R-602.81RS System 3R compatible

POFI Pneumatic Chuck, Macro compatible 3R-602.81RS Low-profile, this chuck required drawbar 3R-605.10, clamping force 6000N. Fixed index positions 4x90°. Air blast cleaning of Z-reference. Rus resistant, weight 1kg.


Availability:



Inquire

Model:
PO-602.81RS

Product Description

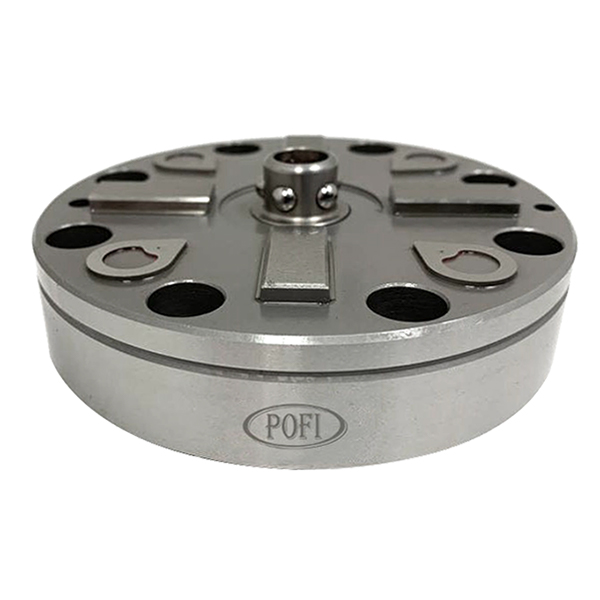

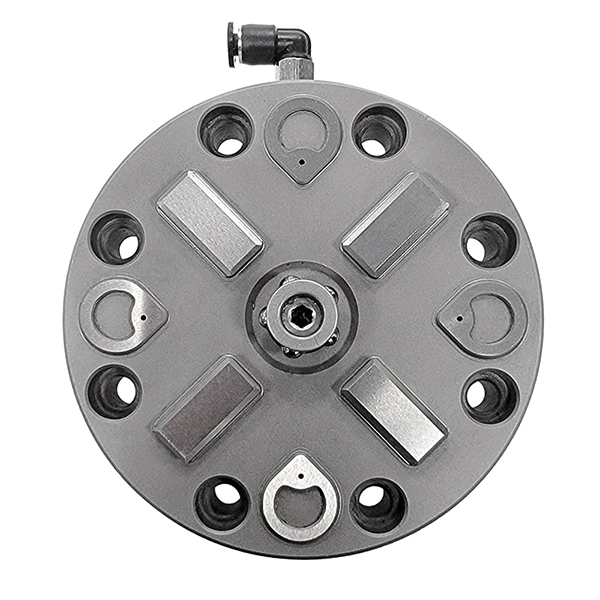

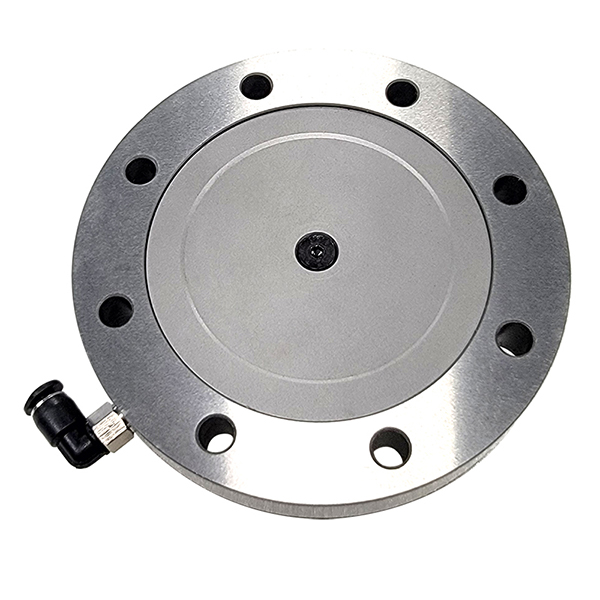

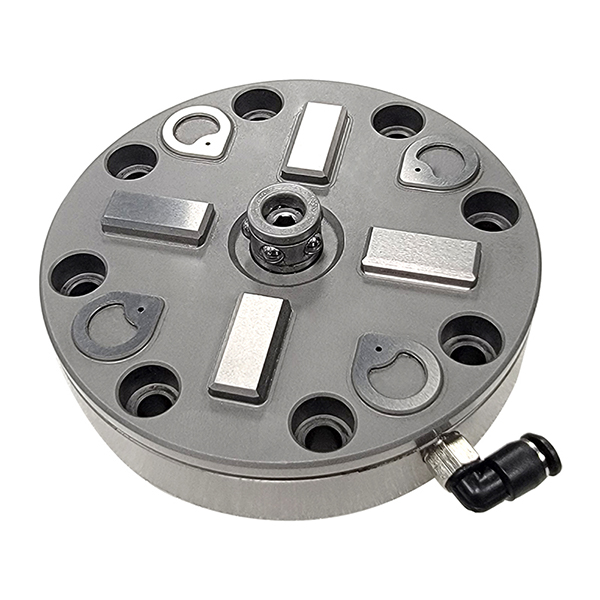

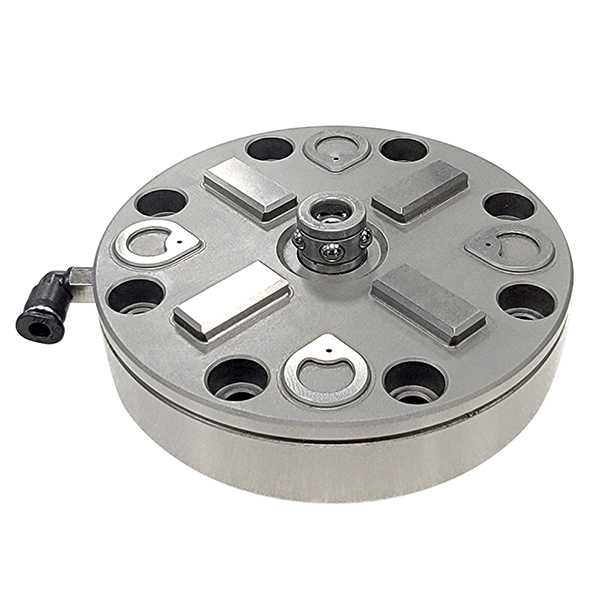

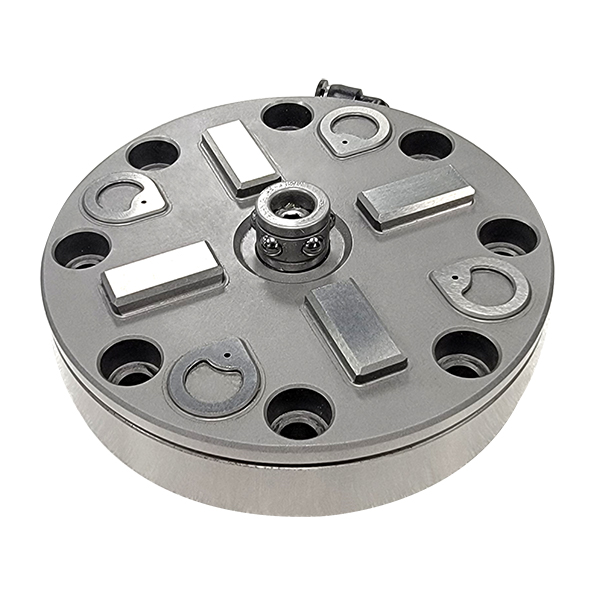

POFI Pneumatic Chuck, Macro 3R-602.81RS

POFI Pneumatic Chuck, MacroHP compatible 3R-602.81RS Low-profile, this chuck required drawbar 3R-605.10, clamping force 6000N. Fixed index positions 4x90°. Air blast cleaning of Z-reference. Rus resistant, weight 1kg.

Clamping power: 6000N
Material: Stainless Steel, Hardened.
Hardness: 56~60HRC
Fixed index postions: 4 x 90°
Drawbar: 3R-605.10 is required.
Cleaning fuction: Integrated, air-blast cleaning of Z-reference.
Net weight: 1 kg

3R-602.81-Pneumatic Chuck Low Profile Std-1-600

3R-602.81-Pneumatic Chuck Low Profile Std-2-600

3R-602.81-Pneumatic Chuck Low Profile Std-3-600

3R-602.81-Pneumatic Chuck Low Profile Std-4-600

3R-602.81-Pneumatic Chuck Low Profile Std-5-600

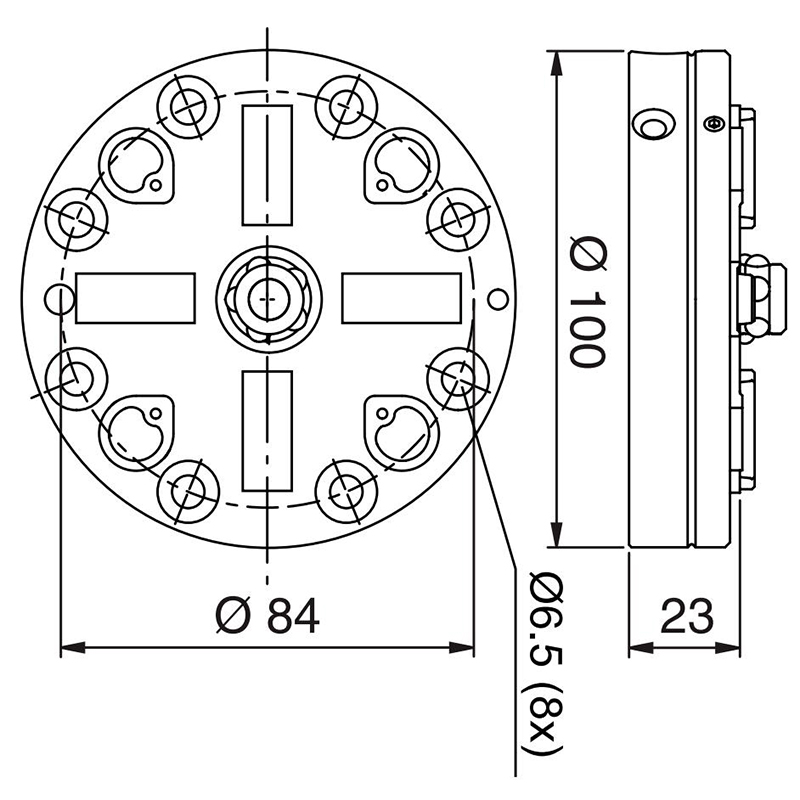

3R-602.81-Pneumatic Chuck Low Profile Std-Spec

3R compatible Pneumatic Chuck 3R-602.81RS Pneumatic chuck Macro 3R-602.81RS 3R-602.81RS POFI Pneumatic chuck 3R-602.81RS System 3R compatible Pneumatic Chuck 3R-602.81RS
