China Made User Kit Compatible To System 3R 3R-242HP

China Made User Kit Compatible To System 3R 3R-242HP

China Made User Kit Compatible To System 3R 3R-242HP
For manual mounting of SuperVice, a holder or a fixture in the WEDM system.
Note: All holders including HP can be mounted.
Note: Also fits the ICS system if the clamping jaw (17850-00) is changed.
• Adjustable in three axes
• Supplied without drawbar

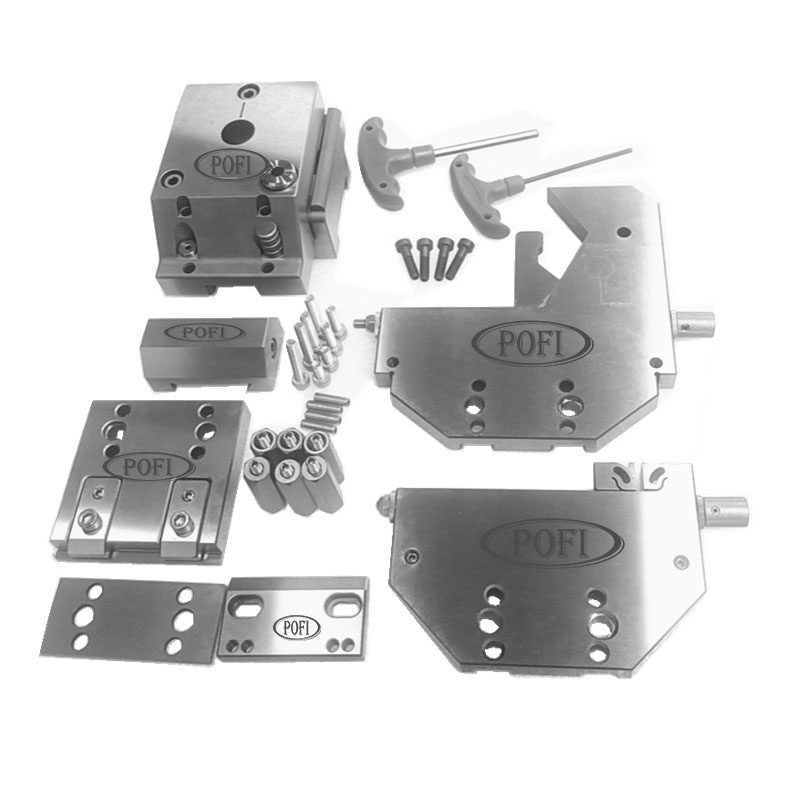

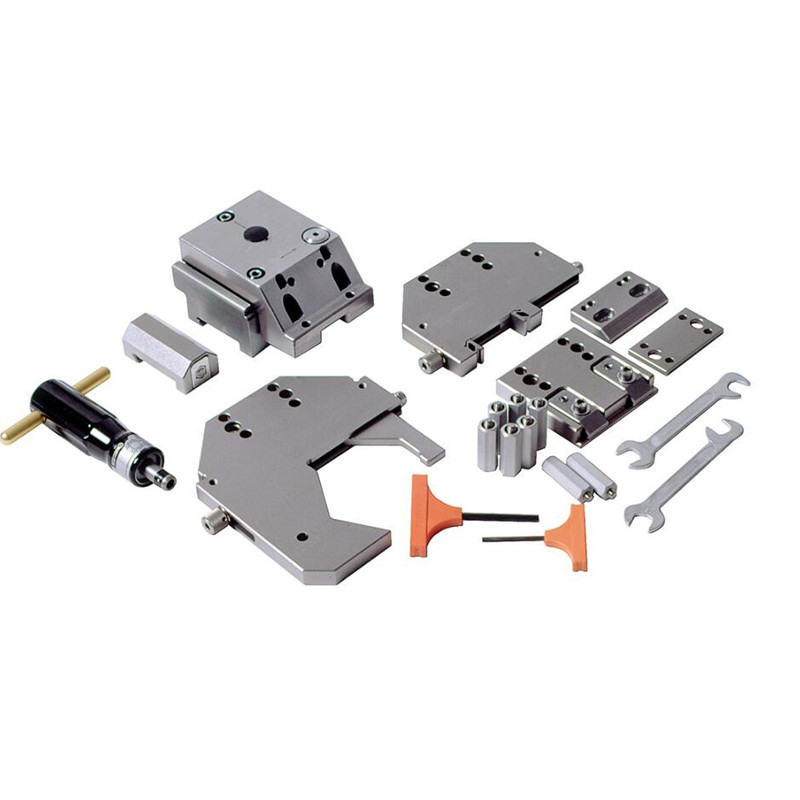

Including:
Reference stop x1, compatible to 3R-225
Levelling adapter HP x1, compatible to 3R-272HP
SuperVice<100 mm x1, compatible to 3R-292.3
SuperVice Ø8-90 mm x1, compatible to 3R-293.3
Vice<100 mm x1, compatible to 3R-294.3
Torque wrench, 7Nm x1, compatible to 3R-914.07 (Option)
Allen key, 3 mm x1, compatible to 3R-333-03
Allen key, 5 mm x1,compatible to 3R-333-05
