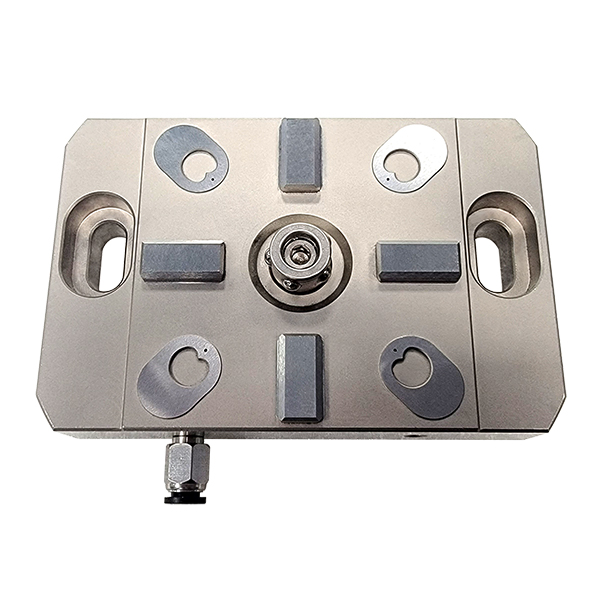

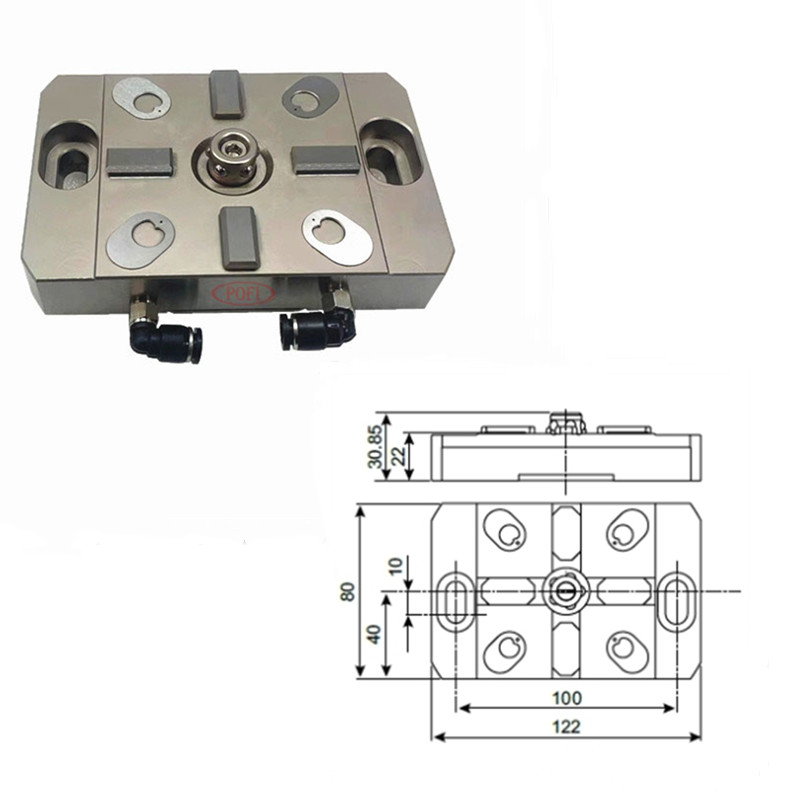

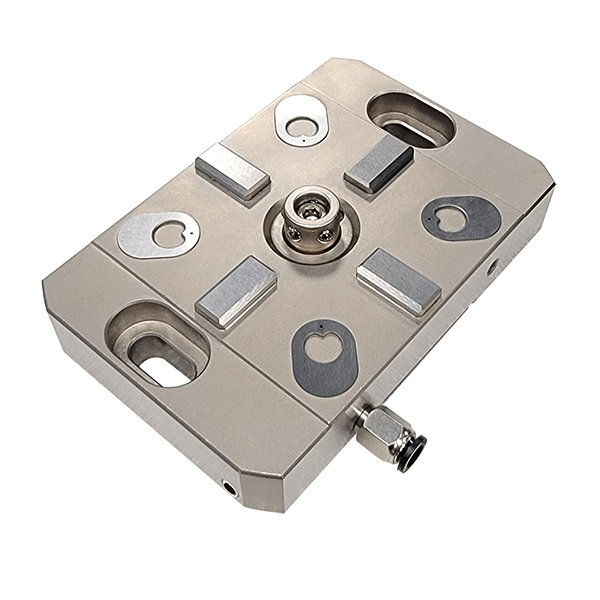

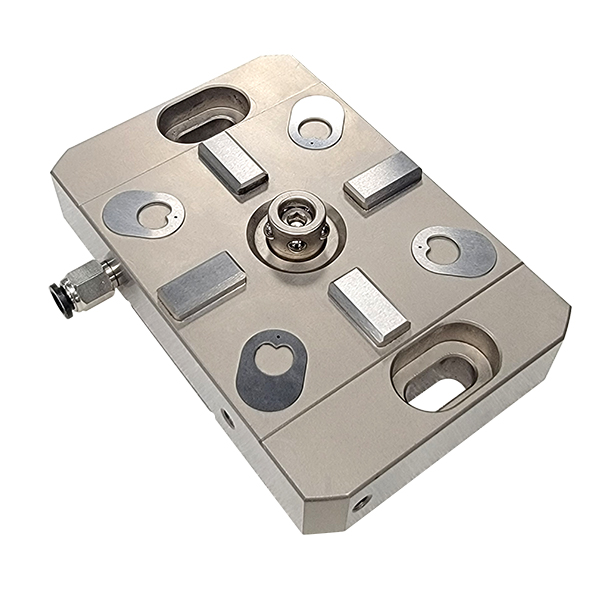

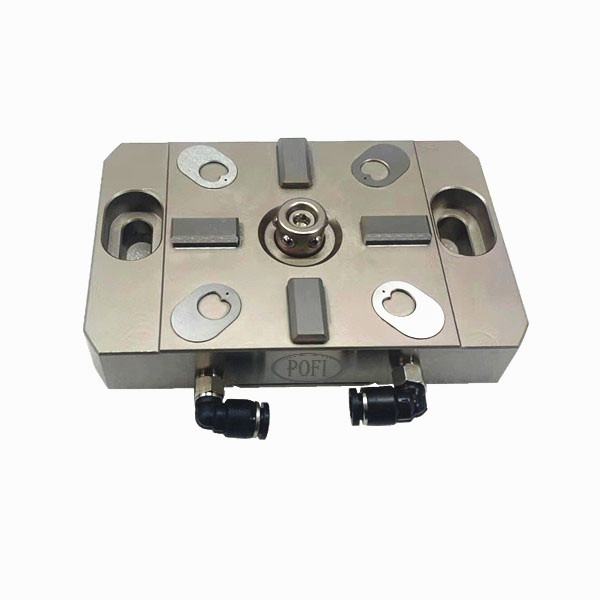

POFI 3R Pneumatic WEDM Chuck 3R-602.10-1
POFI 3R Pneumatic WEDM Chuck 3R-602.10-1POFI 3R Pneumatic WEDM Chuck is comaptible to system 3R 3R-602.10-1 Pneumatic chuck, Marco. As a basic equipment on machine table, it helps people to interconnect all their machines to create a single system. Move the workpieces from the wire EDM machine to the grinding machine or die-sinking machine without subsequent aligment.
Drawbar: 3R-605.10 is required;
Fixed index position: 4 × 90 °;
Cleaning function: Integrated, Z reference air jet cleaning;
Clamping force: 7000 N ;
Net weight: 1.1 kilograms.
POFI 3R Pneumatic WEDM Chuck 3R-602.10-1POFI 3R Pneumatic WEDM Chuck is comaptible to system 3R 3R-602.10-1 Pneumatic chuck, Marco. As a basic equipment on machine table, it helps people to interconnect all their machines to create a single system. Move the workpieces from the wire EDM machine to the grinding machine or die-sinking machine without subsequent aligment.
Drawbar: 3R-605.10 is required;
Fixed index position: 4 × 90 °;
Cleaning function: Integrated, Z reference air jet cleaning;
Clamping force: 7000 N ;
Net weight: 1.1 kilograms.
