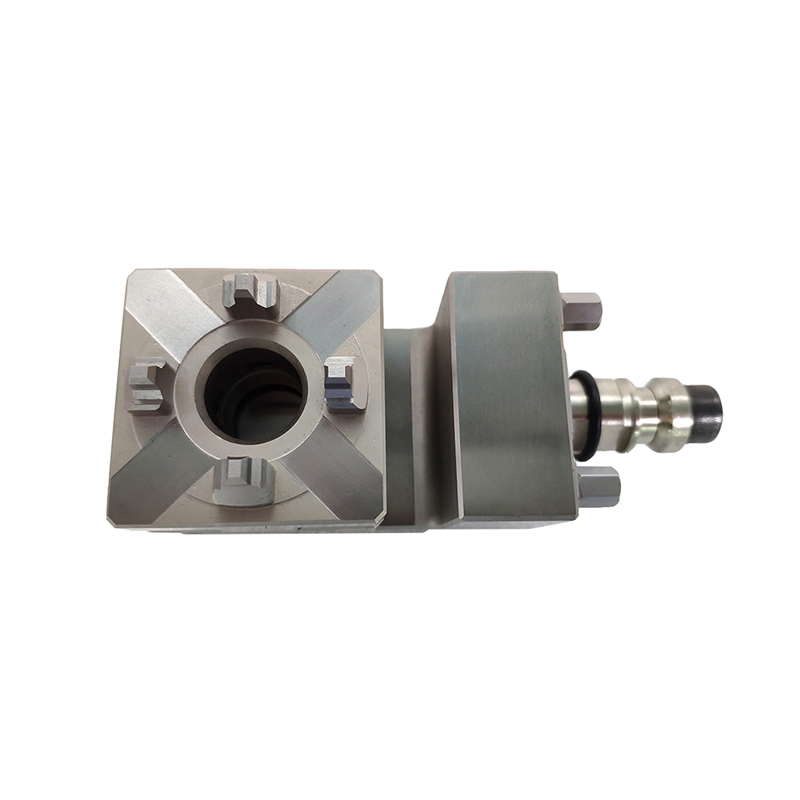

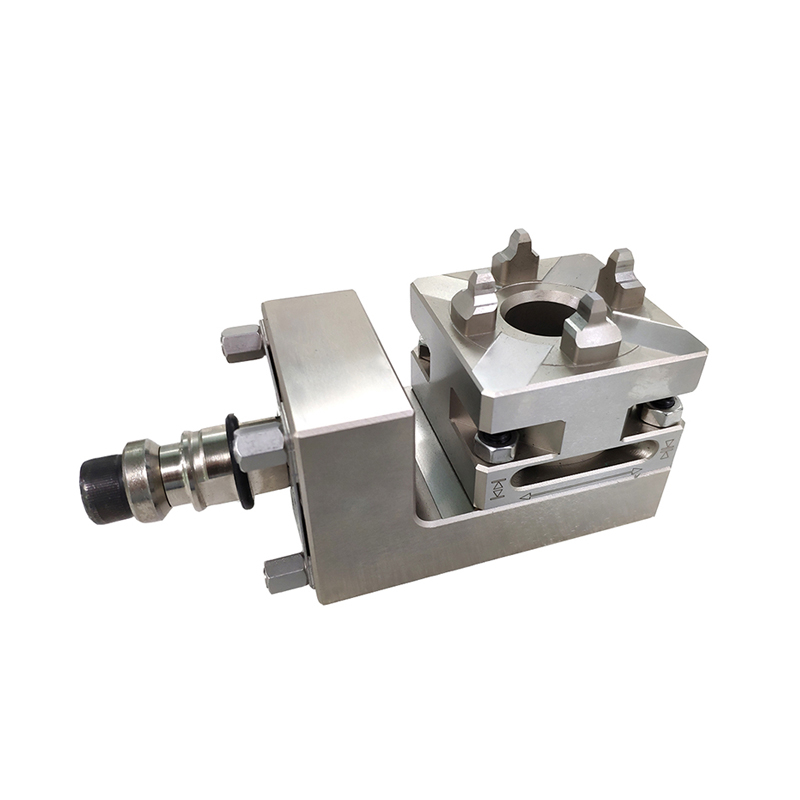

Extension Arm Unoset ER-020596

Description: Extension Arm UnoSet Chuck 50 is compatible with EROWA Wire EDM Tooling and it is equivalent to ER-020596.It applies to accommdate workpieces and electrordes which have to be machined in a vertical and in a horizontal position. The weight maximum it can load up to 6 kgs.
Availability:
Inquire

sharethis sharing button

Extension Arm Unoset ER-020596-3

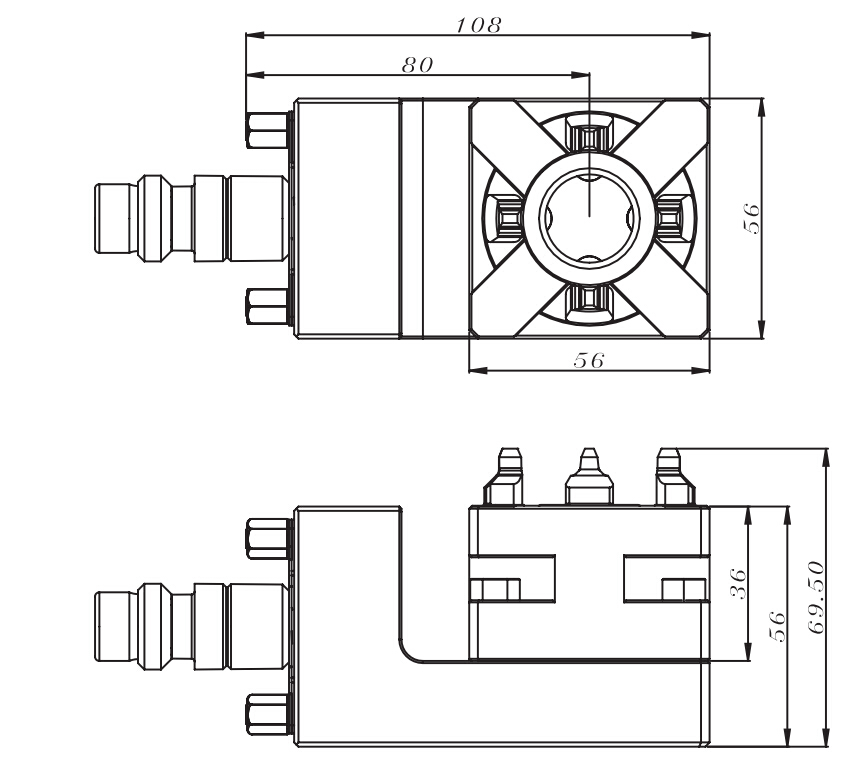

PO-L0005-VERTICAL EDM QUICK CHUCK 50-Specification


Product Name: Extension Arm UnoSet Chuck 50 ER-020596

Item No.:PO-L0005

Description: Extension Arm UnoSet Chuck 50 is compatible with EROWA Wire EDM Tooling and it is equivalent to ER-020596.It applies to accommdate workpieces and electrordes which have to be machined in a vertical and in a horizontal position. The weight maximum it can load up to 6 kgs.
