Optimized Pneumatic Chuck with CNC Base Plate ER-035519

POFI Optimized Pneumatic Chuck with CNC base plate, it is compatible with #EROWA ITS system. We integrated advantages of ER-035519 ITS chuck 100 P with base plate to developed our own design. Making the chuck inner parts integrated with the base, product in low-profile, its clamping force still can up to 10000N. It is controlled by air gun or control unit and connection is at the rear. It applies to accommodating pallets Φ115/Φ148, electrode holders and pallets PM85 same as ER-035519.
Availability:
sharethis sharing button
  • PO-Y0002

  • POFI

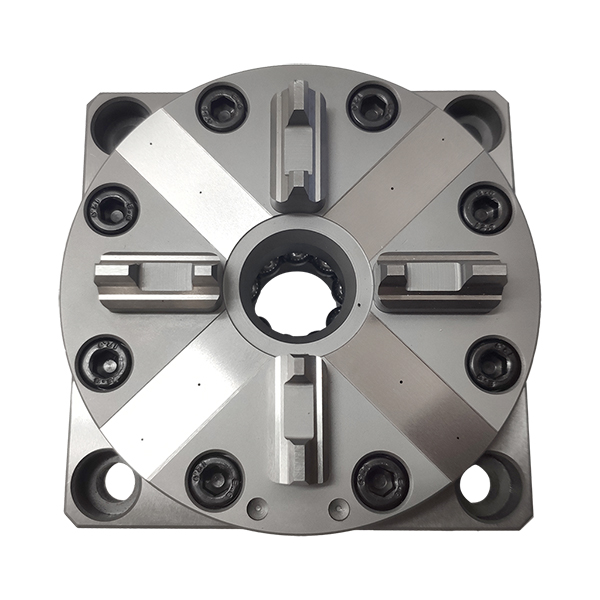

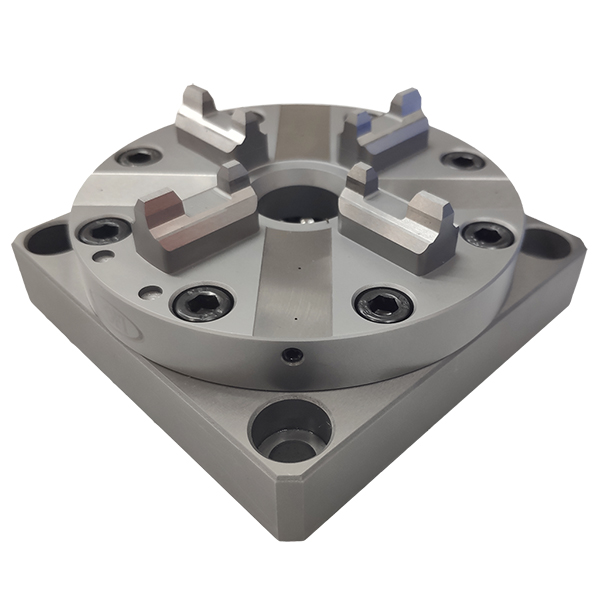

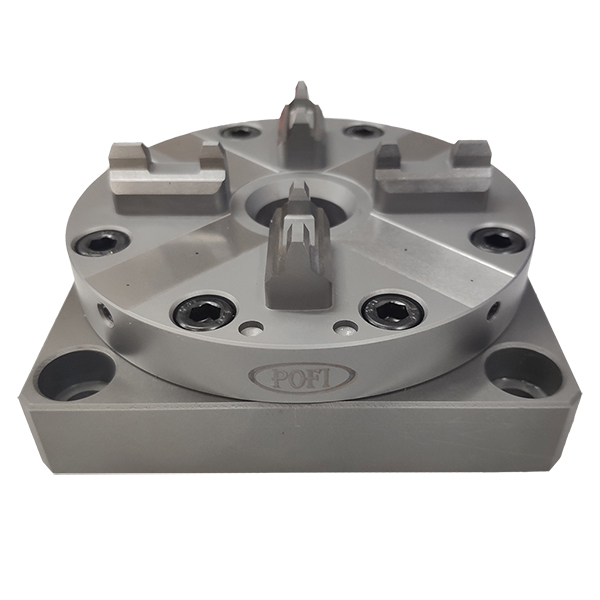

Optimized Pneumatic Chuck with CNC Base Plate

Optimized D101 Power Chuck with Functional Base-1-600

Optimized D101 Power Chuck with Functional Base-2-600

Optimized D101 Power Chuck with Functional Base-3-600

Optimized D101 Power Chuck with Functional Base-4-600

Product Name: Optimized Pneumatic Chuck with CNC Base Plate ER-035519

Item No.: PO-Y0002

Description: POFI Optimized Pneumatic Chuck with CNC base plate, it is compatible with #EROWA ITS system. We integrated advantages of ER-035519 ITS chuck 100 P with base plate to developed our own design. Making the chuck inner parts integrated with the base, product in low-profile, its clamping force still can up to 10000N.  It is controlled by air gun or control unit and connection is at the rear. It applies to accommodating pallets Φ115/Φ148, electrode holders and pallets PM85 same as ER-035519.
