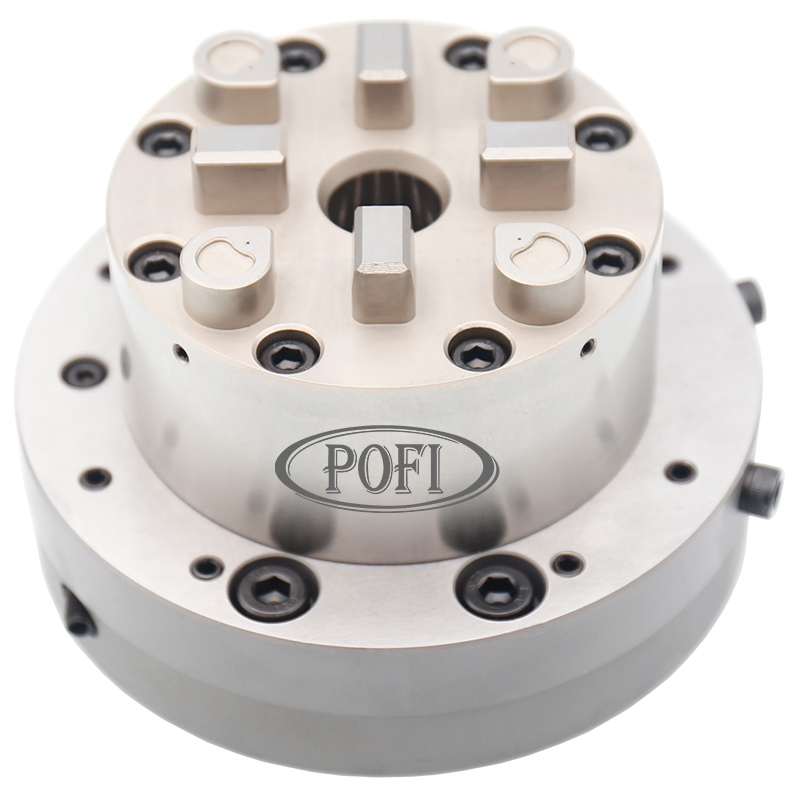

Pneumatic Chuck MacroStd 3R-600.1-30

Description: D100 3M EDM pneumatic chuck MacroStd is compatible with System 3R and it is equivalent to 3R-600.1-30 moldes . It mouted on sinker EDM machine Head, With 3R pallet 54*54mm .suitable for plastic injection mould making industry.Be used on CNC machine center processing EDM electrode for mould industry.
Availability:
Inquire

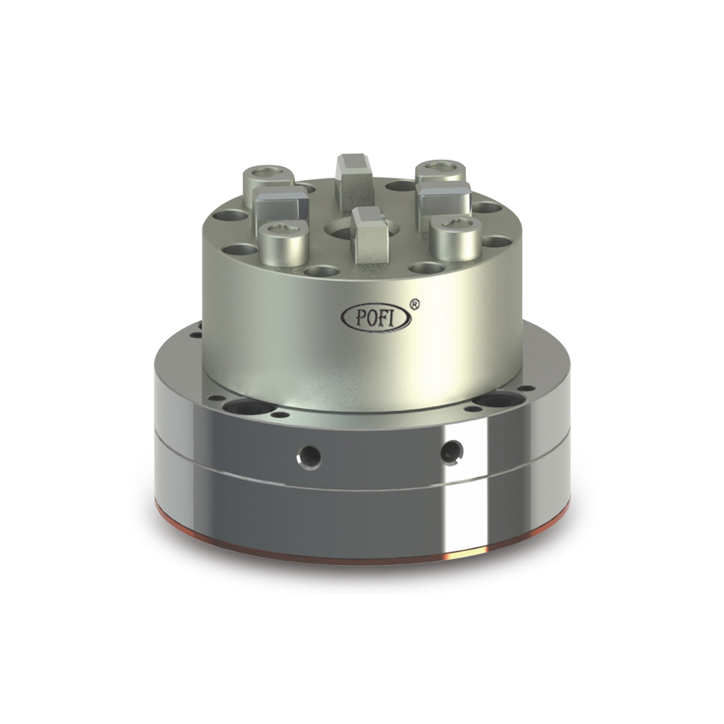

PO-3M0041-D100 3M EDM Pneumatic Chuck

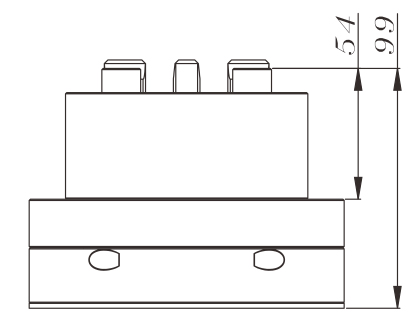

PO-3M0041-D100 3M EDM Pneumatic Chuck-Specification-1

PO-3M0041-D100 3M EDM Pneumatic Chuck-Specification-2


Product Name: D100 3M EDM pneumatic chuck  3R-600.1-30

Item No.: PO-3M0041

Description: D100 3M EDM pneumatic chuck MacroStd is compatible with System 3R and it is equivalent to 3R-600.1-30 moldes . It mouted  on sinker EDM machine Head, With 3R pallet 54*54mm .suitable for plastic injection mould making industry.Be used on CNC machine center processing EDM electrode for mould industry.
