Fixture for Tiny Component 100x150mm

Fixture for Tiny Component 100x150mm is particularly for clamping workpiece size maximum to 100x150mm while doing EDM machining. It can compatible with EROWA or System 3R depends on what centering segments you choose. If fixture comes with Centering Plaet G INOX ER-036658, it would use with EROWA chuck. Or if fixture comes with 70x70 Pallet Macro 3R-601.7E-P, it would be used with System 3R chuck.
  • PO-V0011
  • POFI

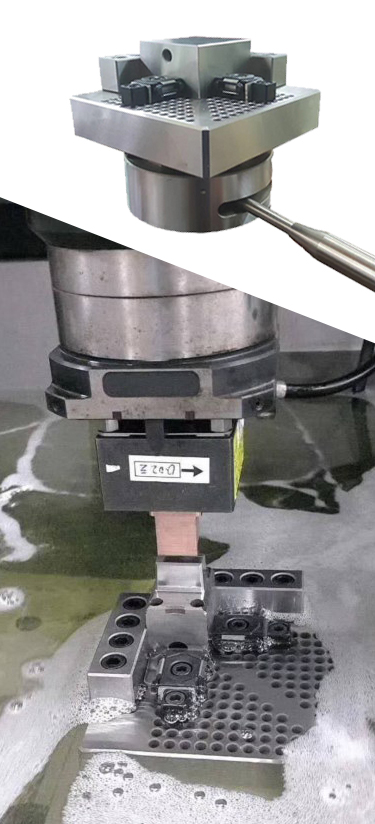

cse

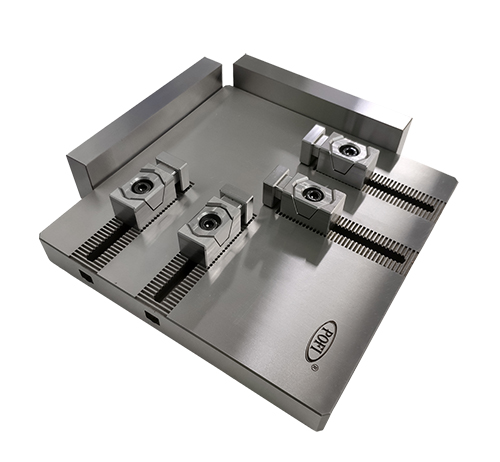

Clamping tools special use for tiny component 100x150mm-1-500

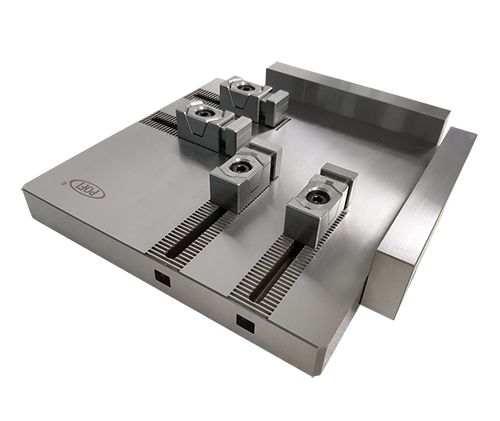

Clamping tools special use for tiny component 100x150mm-2-500

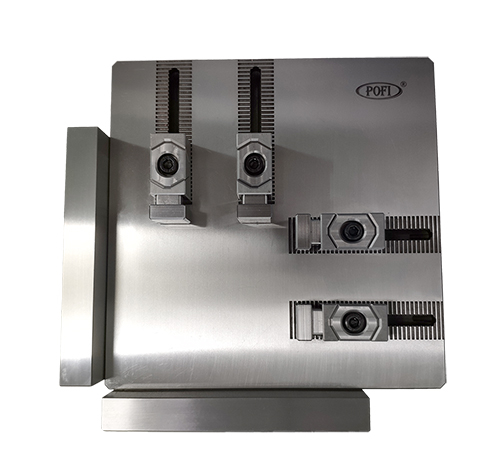

Clamping tools special use for tiny component 100x150mm-3-500

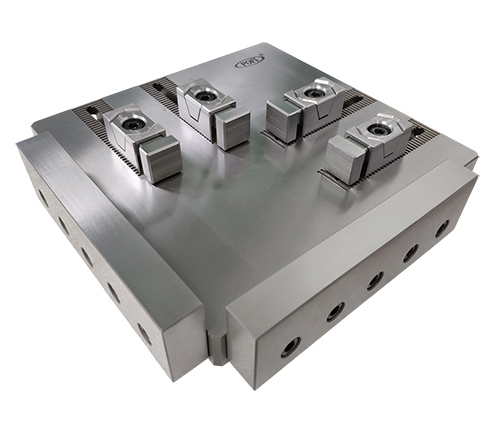

Clamping tools special use for tiny component 100x150mm-4-500

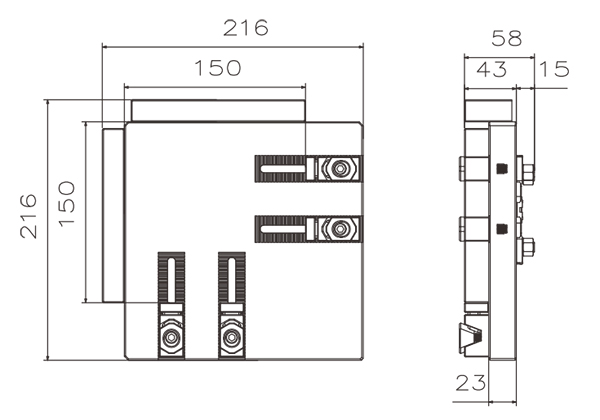

Clamping tools special use for tiny component 100x150mm-Specification


Product Name: Fixture for Tiny Component 100x150mm

Item No.: PO-V0011

Description: Fixture for Tiny Component 100x150mm is particularly for clamping workpiece size maximum to 100x150mm while doing EDM machining. It can compatible with EROWA or System 3R depends on what centering segments you choose. If fixture comes with Centering Plaet G INOX ER-036658, it would use with EROWA chuck. Or if fixture comes with 70x70 Pallet Macro 3R-601.7E-P, it would be used with System 3R chuck.
