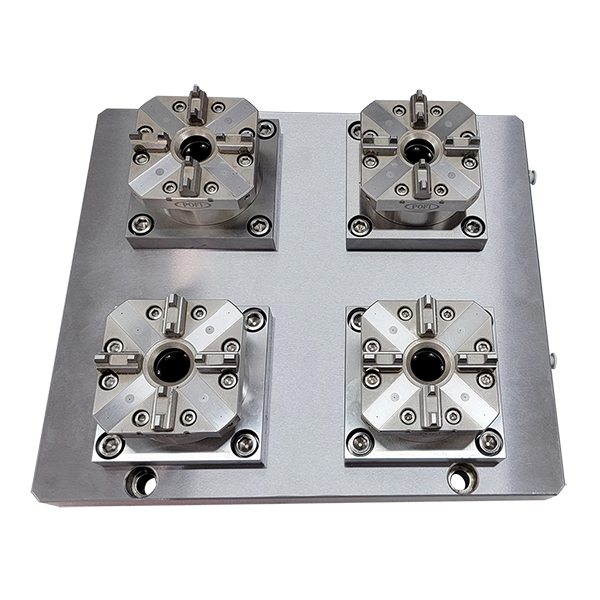

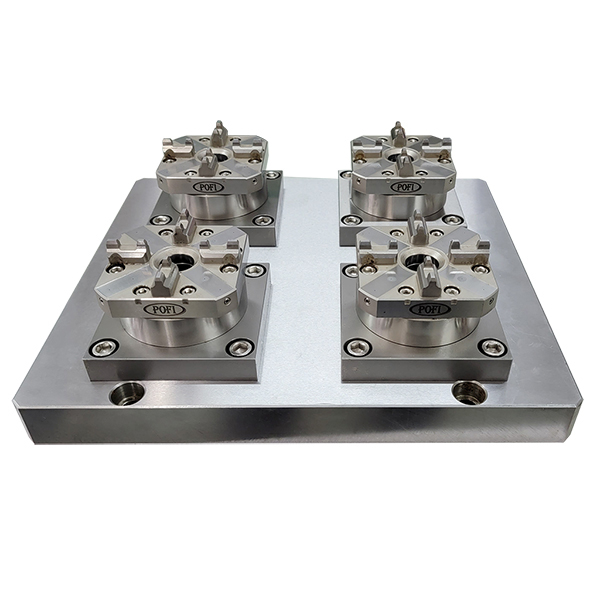

4-Fold Rapid-action Chuck Automatic with Baseplate 330x290 ER-012299

4-Fold Rapid-action Chuck Automatic with Baseplate 330x290 is equivalent of 4 Rapid-action Chuck on plate ER-012299 mounting on a baseplate 330x290mm. It applies to 4 electrodes fabrication once at a setup time. Clamping power of each chuck is up to 8000N. Small holes on top of each chuck is for cleaning contact face of support feet.
Availability:
  • PO-E
  • POFI
  • PO-E0012

4-Fold Rapid-action Chuck Automatic with Baseplate 330x290 ER-012299


4 Fold Rpaid-action Chuck with Baseplate-6-600

4 Fold Rpaid-action Chuck with Baseplate-1-600

4 Fold Rpaid-action Chuck with Baseplate-2-600

4 Fold Rpaid-action Chuck with Baseplate-3-600

specification


Product Name: 4-Fold Rapid-action Chuck Automatic with Baseplate 330x290 ER-012299

Item No.: PO-E0012

Description: 4-Fold Rapid-action Chuck Automatic with Baseplate 330x290 is equivalent of 4 Rapid-action Chuck on plate ER-012299 mounting on a baseplate 330x290mm. It applies to 4 electrodes fabrication once at a setup time. Clamping power of each chuck is up to 8000N. Small holes on top of each chuck is for cleaning contact face of support feet.
