EROWA Compatible U25 Electrode Holder Uniholder ER-010793 ER-009223

U25 Electrode Holder Uniholder is compatible with EROWA ITS system and it is equivalent to ER-010793 and ER-009223. Product groove milled out 25.5 mm faced in the middle, and slot part can be customized as you required. RIFD chip hole and chip are provided if they are needed. Product material has 3 option: Stainless steel(B), Bras(C) and Aluminum(D). It applies to mount electrodes and workpieces with shaft sizes of up to 25mm.
Material:
Availability:
sharethis sharing button

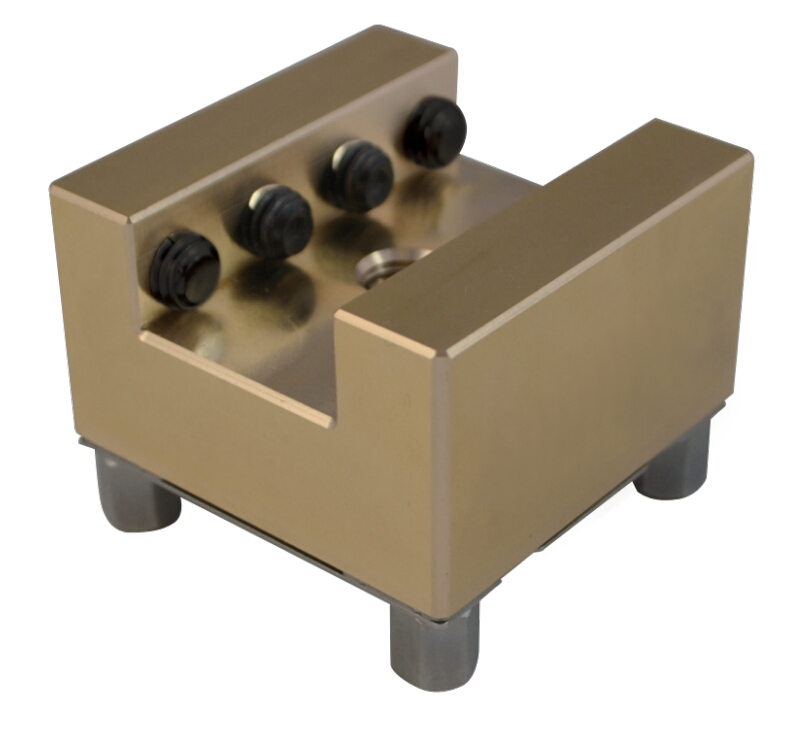

Brass Electrode Holder

C0003

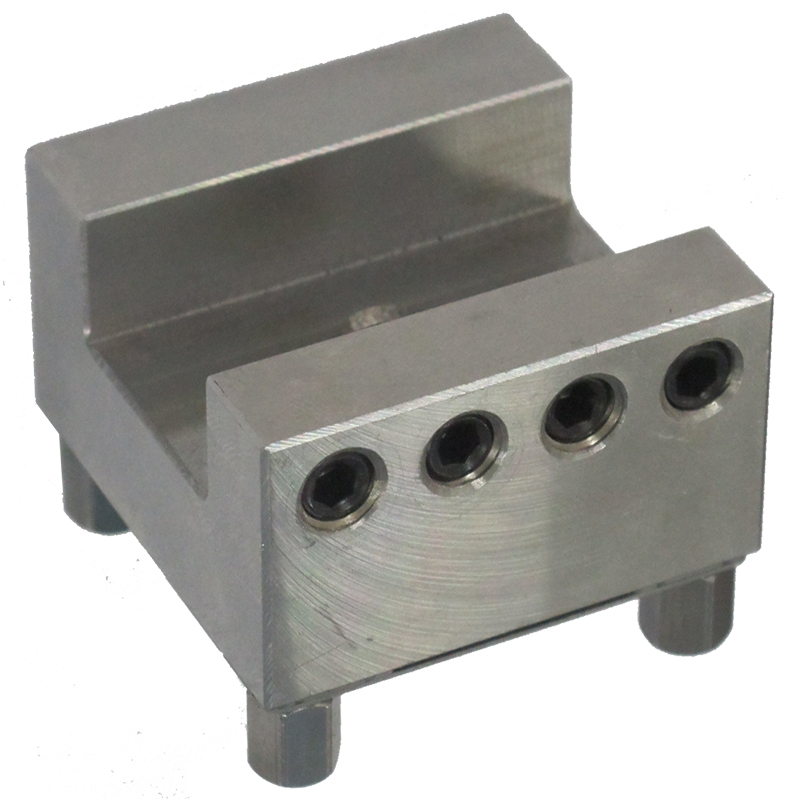

Stainless Steel Electrode Holder

PO-B0003-

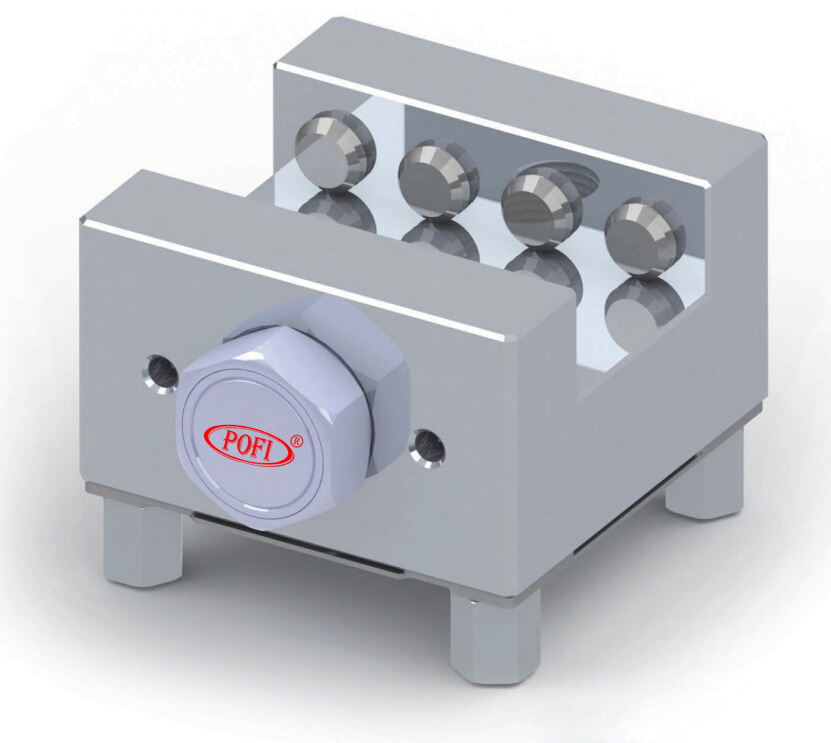

Aluminum Electrode Holder

PO-D0003-U25 Aluminum Holder

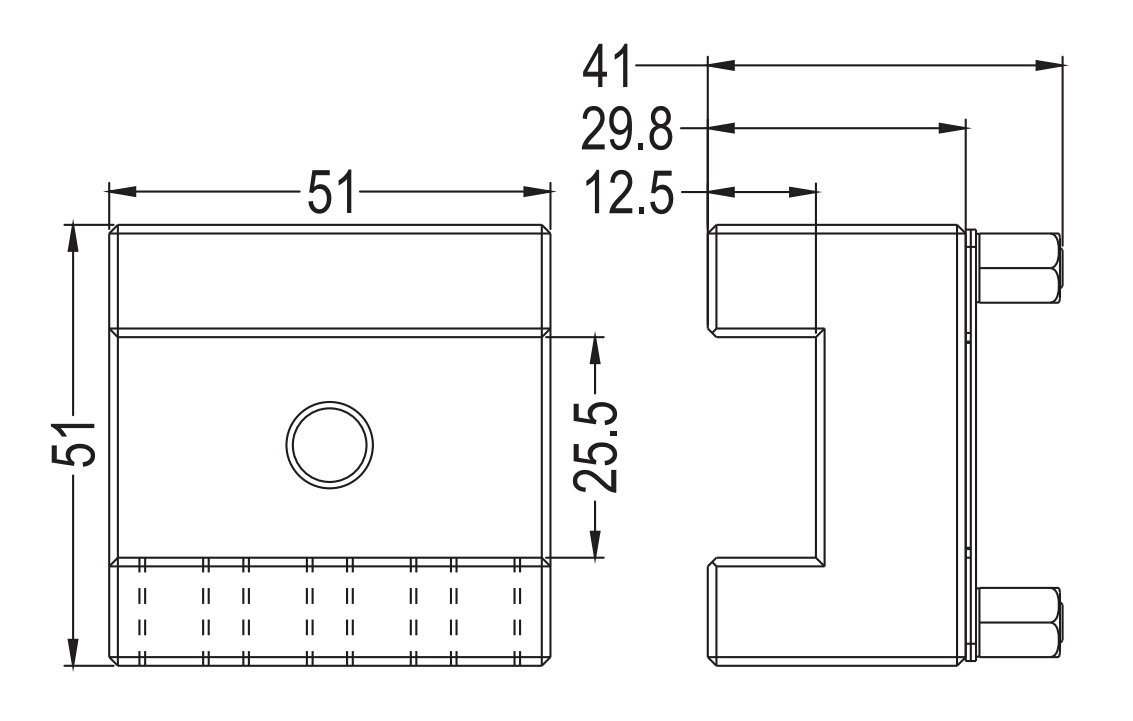

PO-C0003-U25-Specification

Product Name: EROWA Compatible U25 Electrode Holder Uniholder ER-010793 ER-009223

Item No.: PO-B0003 / PO-C0003 / PO-D0003

Description: U25 Electrode Holder Uniholder is compatible with EROWA ITS system and it is equivalent to ER-010793 and ER-009223. Product groove milled out 25.5 mm faced in the middle, and slot part can be customized as you required. RIFD chip hole and chip are provided if they are needed. Product material has 3 option: Stainless steel(B), Bras(C) and Aluminum(D). It applies to mount electrodes and workpieces with shaft sizes of up to 25mm.
