6 in 1 3M D100 Pneumatic Chuck with CNC Base 3R-600 EX8

POFI 6 in 1 3M D100 Pneumatic Chuck with CNC Base 3R-600.EX8 is compatible with System 3R. It equivalent 6 pcs of D100 pneumatic chuck which is equivalent to 3R-600.EX8 Machine-adapted pneumatic chuck mounting on a CNC base. It applies for various of CNC machine center. Clamping force of each chuck reaches to 10000N. Product requires 6 bar air pressure at least. Every 3 chucks control by 1 air control.
Availability:
Inquire

  • PO-3M0045
  • POFI

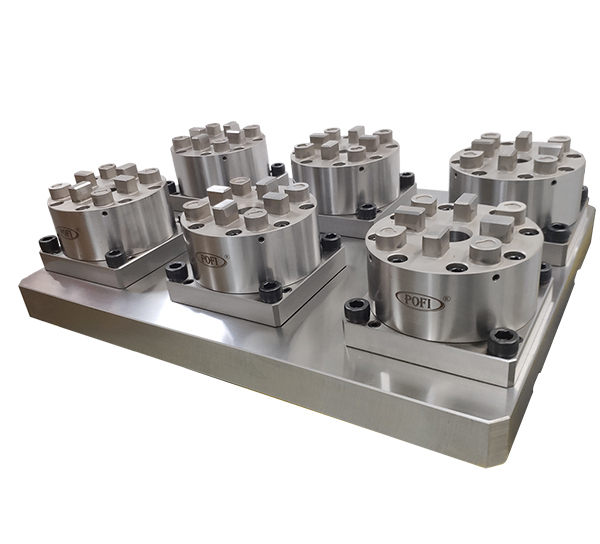

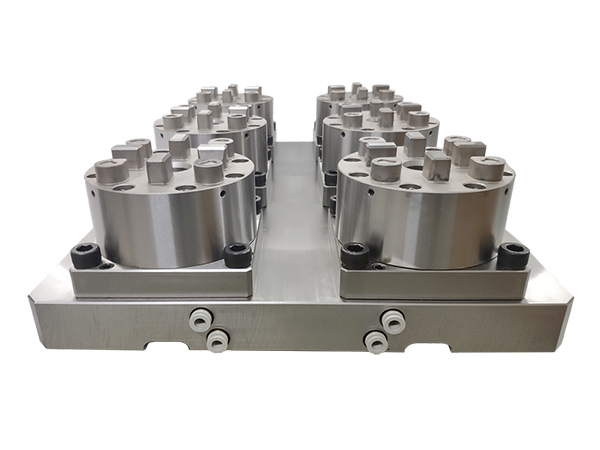

3R-600.EX8 Pneumatic Chuck-1-600

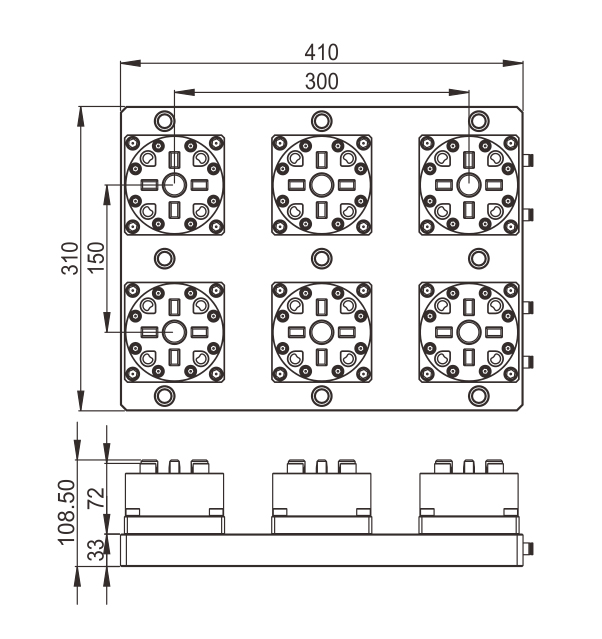

3R-600.EX8 Pneumatic Chuck-Specification


Product Name: 6 in 1 3M D100 Pneumatic Chuck with CNC Base 3R-600.EX8

Item No.: PO-3M0045

Description: POFI 6 in 1 3M D100 Pneumatic Chuck with CNC Base 3R-600.EX8 is compatible with System 3R. It equivalent 6 pcs of D100 pneumatic chuck which is equivalent to 3R-600.EX8 Machine-adapted pneumatic chuck mounting on a CNC base. It applies for various of CNC machine center. Clamping force of each chuck reaches to 10000N. Product requires 6 bar air pressure at least.  Every 3 chucks control by 1 air control.
