Fixture for Tiny Components 50x100mm

Fixture for Tiny Component 50x100mm is particularly for clamping workpiece size maximum to 50x100mm. It can compatible with EROWA or System 3R depends on what centering segments you choose. If fixture comes with Centering Plaet G INOX ER-036658, it would use with EROWA chuck. Or if fixture comes with 70x70 Pallet Macro 3R-601.7E-P, it would be used with System 3R chuck.
  • PO-V0009
  • POFI

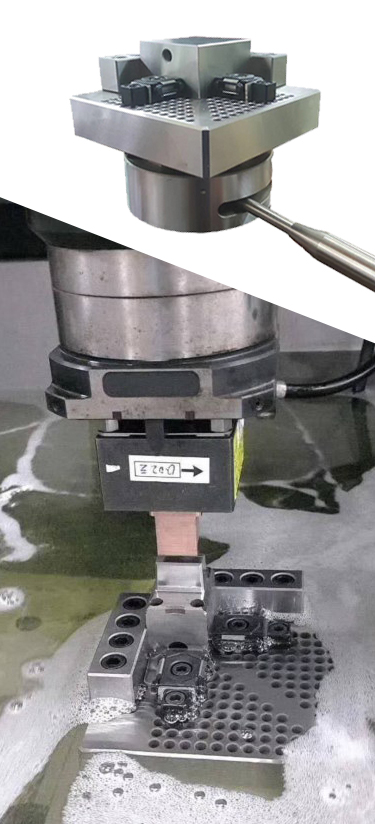

cse

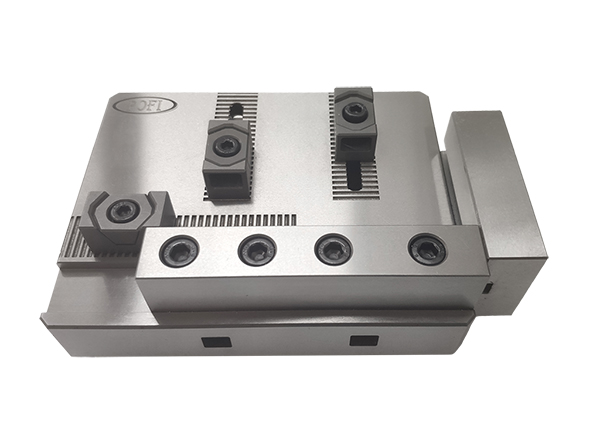

Fixture for 50x100 Tiny components-3-600

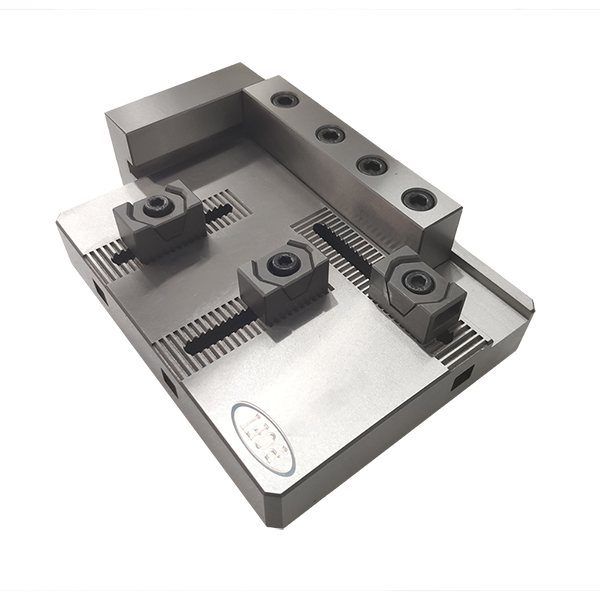

Fixture for 50x100 Tiny components-2-600

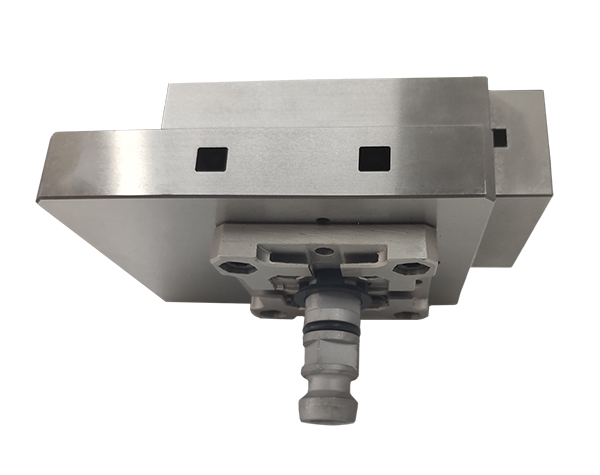

Fixture for 50x100 Tiny components-5-600

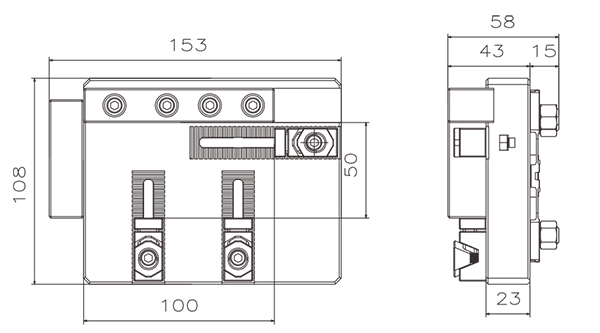

Fixture for 50x100 Tiny components-Specification


Product Name: Fixture for Tiny Component 50x100mm

Item No.: PO-V0009

Description: Fixture for Tiny Component 50x100mm is particularly for clamping workpiece size maximum to 50x100mm. It can compatible with EROWA or System 3R depends on what centering segments you choose. If fixture comes with Centering Plaet G INOX ER-036658, it would use with EROWA chuck. Or if fixture comes with 70x70 Pallet Macro 3R-601.7E-P, it would be used with System 3R chuck.
