Optimized EDM Pneumatic Chuck D100 ER-007580

POFI Optimized EDM Pneumatic Chuck D100. It is compatible EROWA ITS system, its function is equivalent to ER-007580 rapid-action chuck with flange, retrofitting on EDM sinking machines. We integrate advantages of rapid-action chuck and ITS Chuck 100 to developed our own design, make chuck diameter from the top to the bottom in same diameter and perfectly fit into EDM machine spindle. Minimize the chuck volume and weight but also capable of accommodating pallets Φ115/Φ148, electrodes holders and pallets PM85.
  • POFI

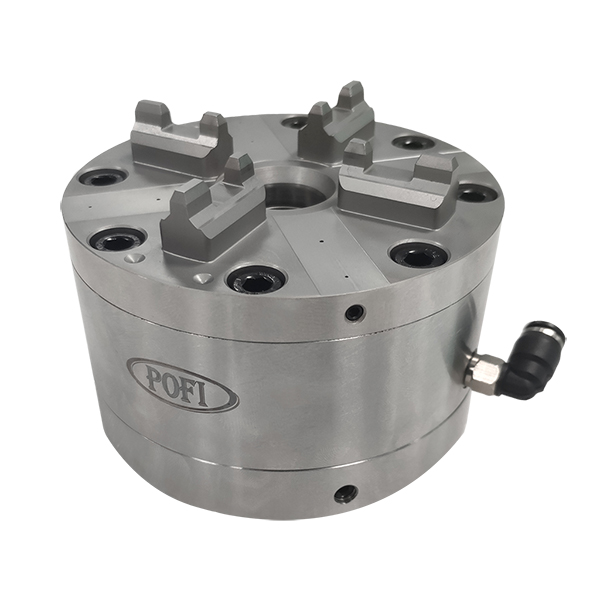

Optimized EDM Pneumatic Chuck D100

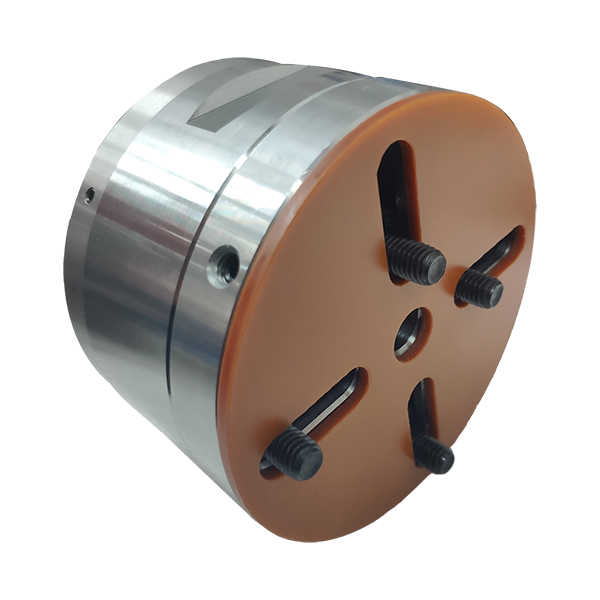

Optimized EDM Pneumatic Chuck D100-1-600

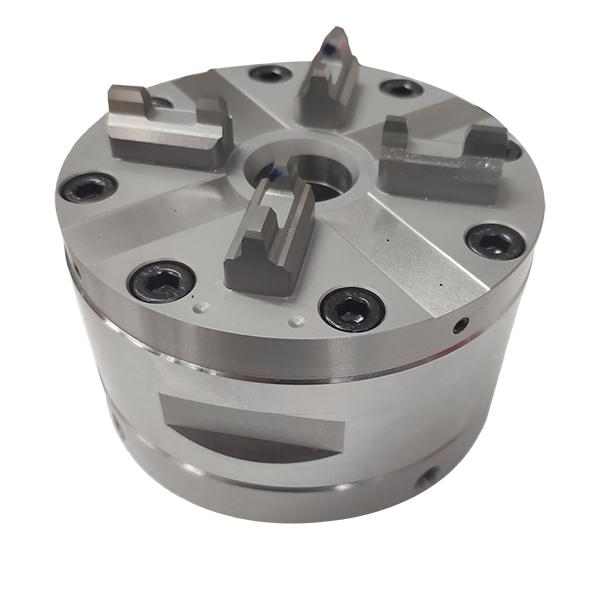

Optimized EDM Pneumatic Chuck D100-9-600

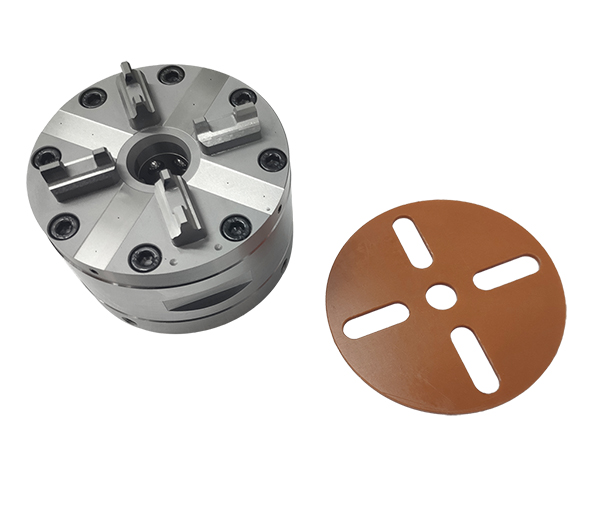

Optimized EDM Pneumatic Chuck D100-3-600

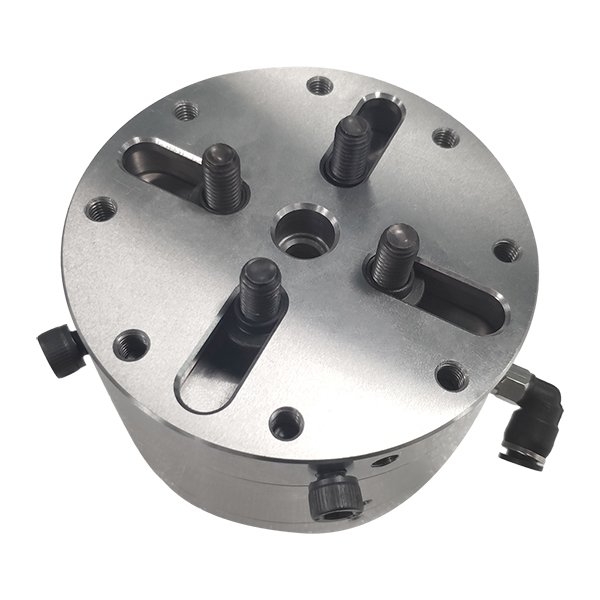

Optimized EDM Pneumatic Chuck D100-4-600

Optimized EDM Pneumatic Chuck D100-6-600

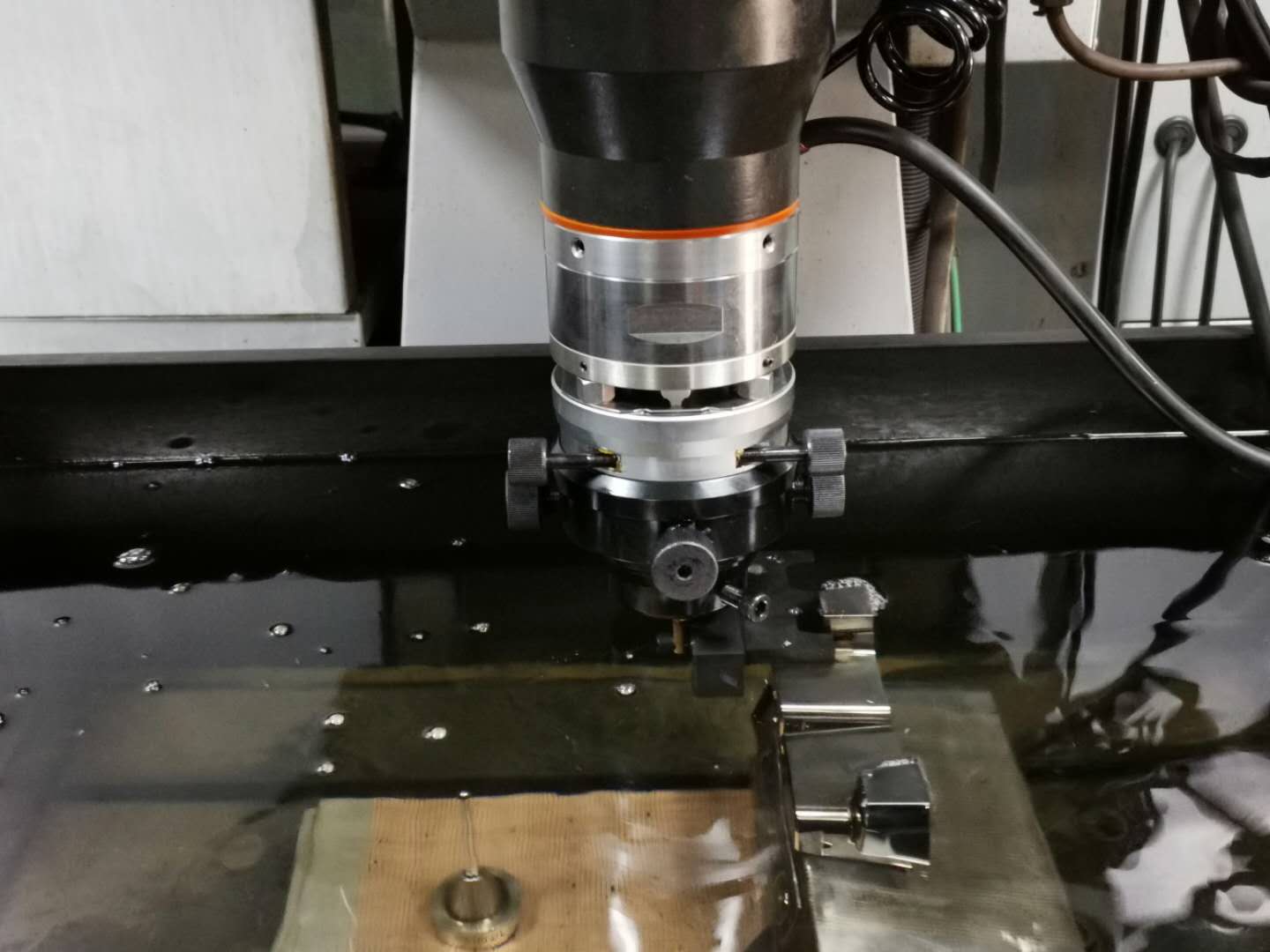

EDM machining



Product Name: Optimized EDM Pneumatic Chuck D100 ER-007580

Item No.:  PO-Y0001

Description: New design, POFI Optimized EDM Pneumatic Chuck. It is compatible EROWA ITS system, its function is equivalent to ER-007580 rapid-action chuck with flange, retrofitting on EDM sinking machines. We integrate advantages of rapid-action chuck and ITS Chuck 100 to developed our own design, make chuck diameter from the top to the bottom in same diameter and perfectly fit into EDM machine spindle. Minimize the chuck volume and weight but also capable of accommodating pallets Φ115/Φ148, electrodes holders and pallets PM85.
