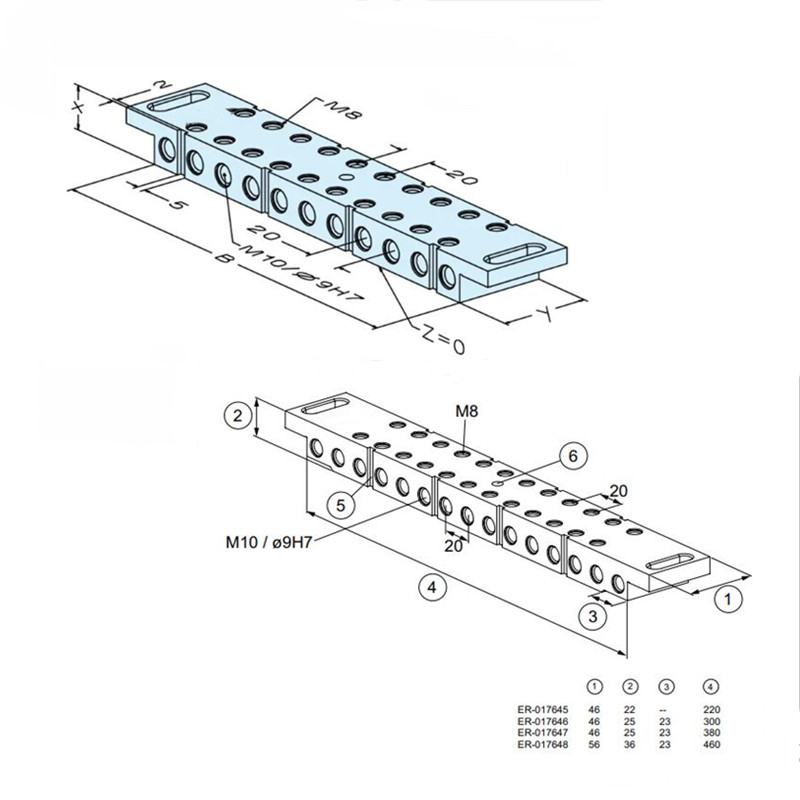

POFI Wire Edm Tooing Clamping Beam 300mm ER-017646

POFI Wire Edm Tooing Clamping Beam 300mm compatible to ER-017646, the clamping beams are used for clamping workpieces on WEDM machines.
Cross boreholes, ground version.
Clamped: manually
Width of clamping beam:46mm
Height of clamping beam:25mm
Recess for base:23mm
Length of clamping beam:300mm
Borehole ø 6.7 mm
Availability:
Inquire

sharethis sharing button

POFI Wire Edm Tooing Clamping Beam 300mm compatible to ER-017646, the clamping beams are used for clamping workpieces on WEDM machines.

Cross boreholes, ground version.

Clamped: manually

Width of clamping beam:46mm

Height of clamping beam:25mm

Recess for base:23mm

Length of clamping beam:300mm

Borehole ø 6.7 mm

ER-017647 ER-017646
