Syestem 3R compatible Electrode Calibration Adapter

Syestem 3R compatible Electrode Calibration Adapter is compatible System 3R and product comes with centering plate 54x54 mounting on the bottom. It applies to adjust X, Y axis in slightly angle without removing the chuck from EDM center spindle while doing EDM die sinking.
Availability:
sharethis sharing button

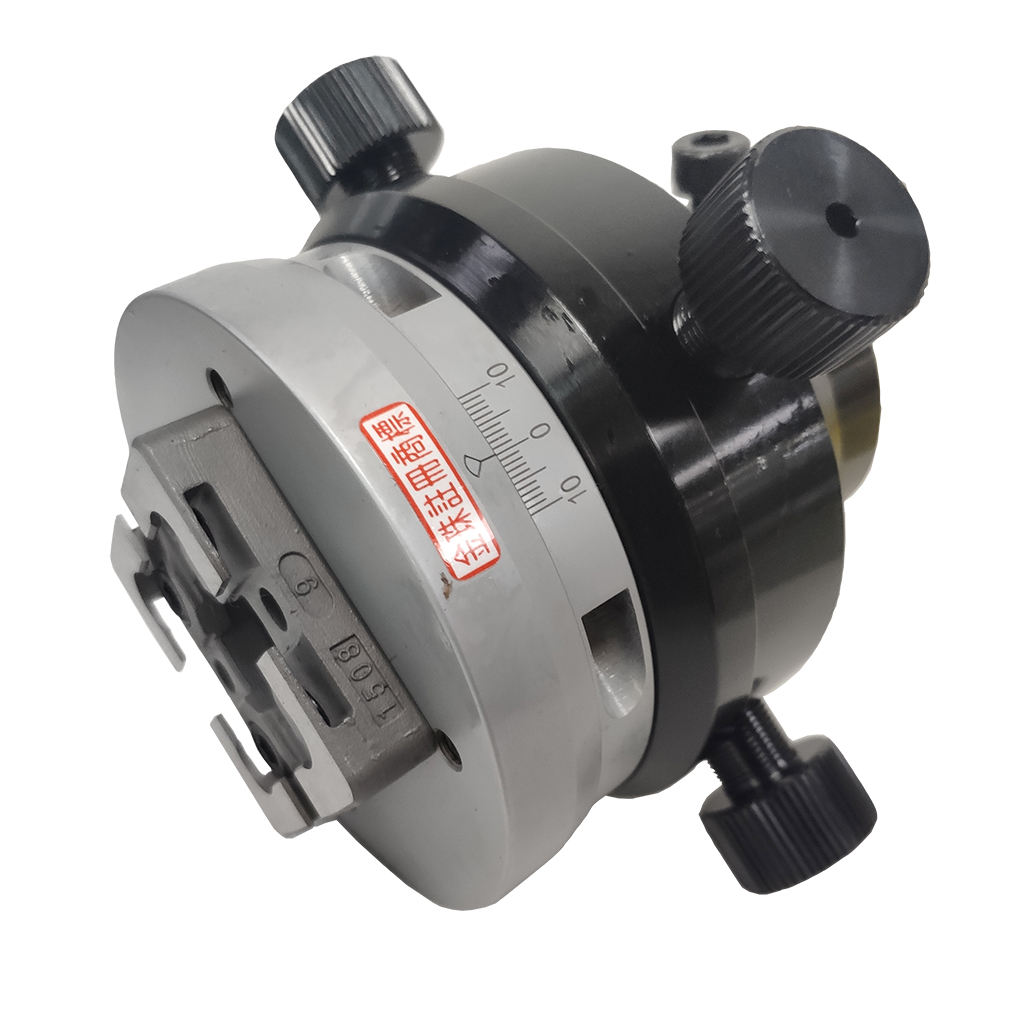

3M Electrode Calibration-1-1024

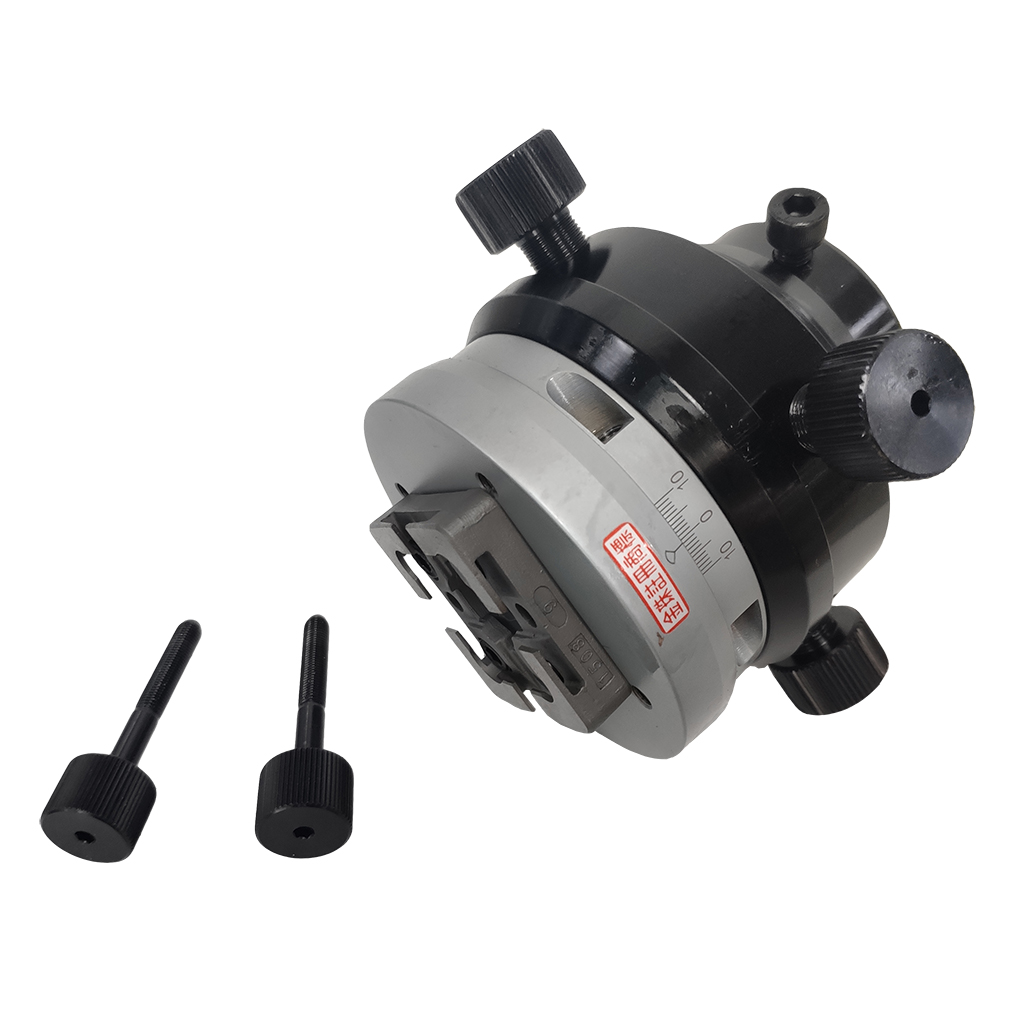

3M Electrode Calibration-3-1024

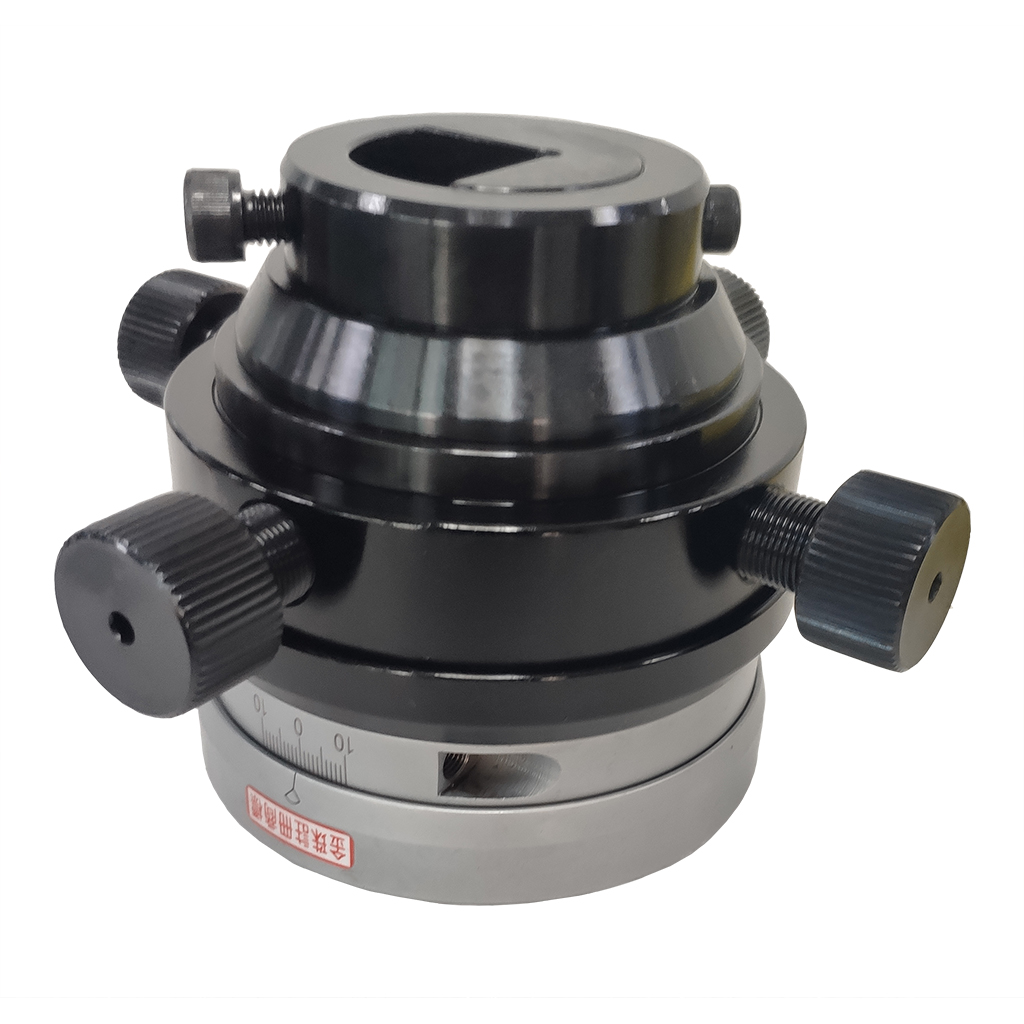

3M Electrode Calibration-2-1024


Product Name: Syestem 3R compatible Electrode Calibration Adapter


Item No.: PO-3M0014


Description: Syestem 3R compatible Electrode Calibration Adapter is compatible System 3R and product comes with centering plate 54x54 mounting on the bottom. It applies to  adjust X, Y axis in slightly angle without removing the chuck from EDM center spindle while doing EDM die sinking.
