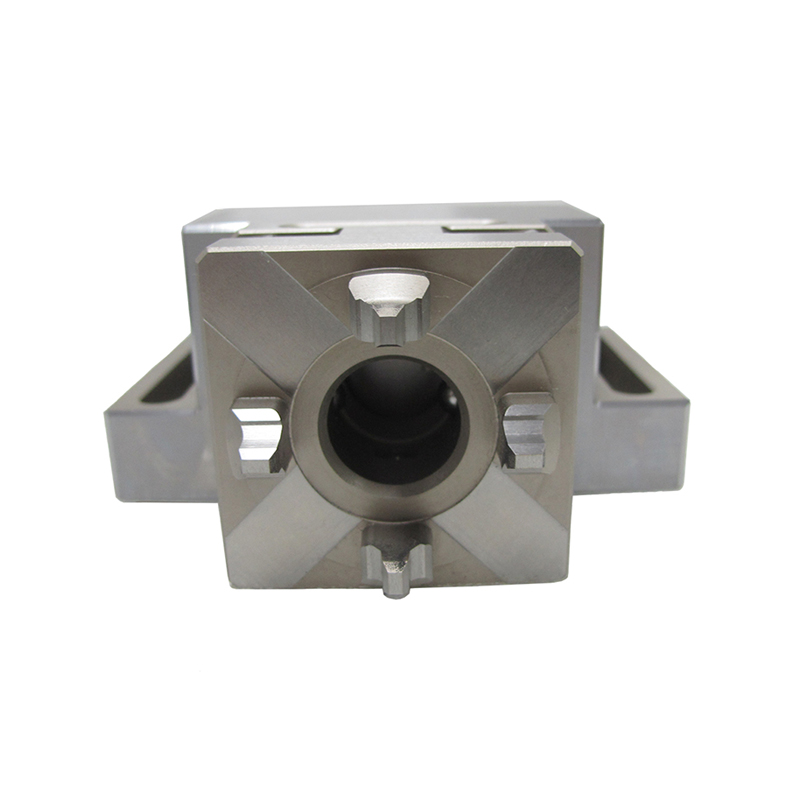

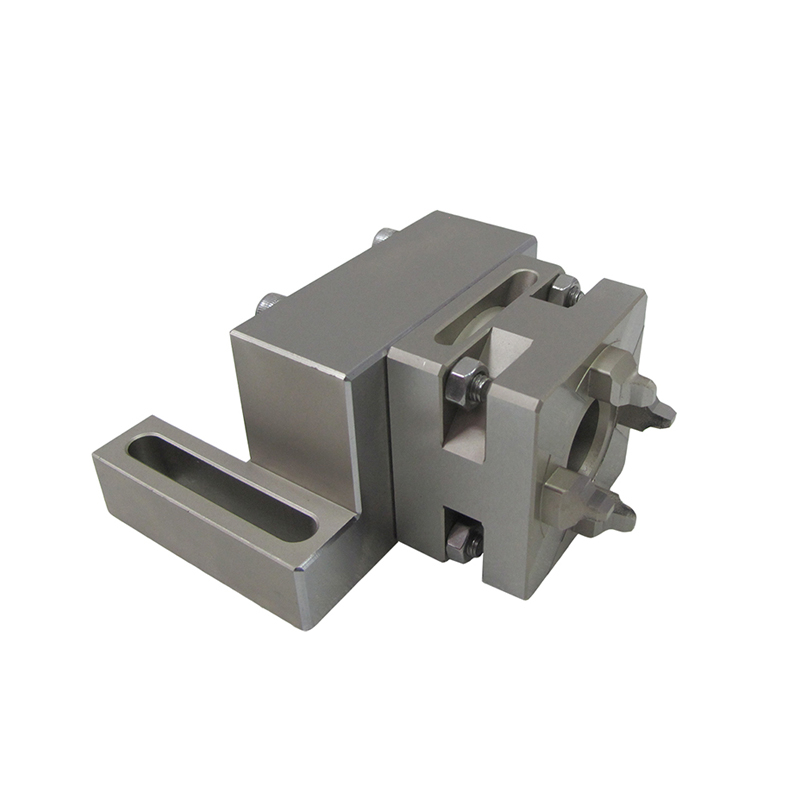

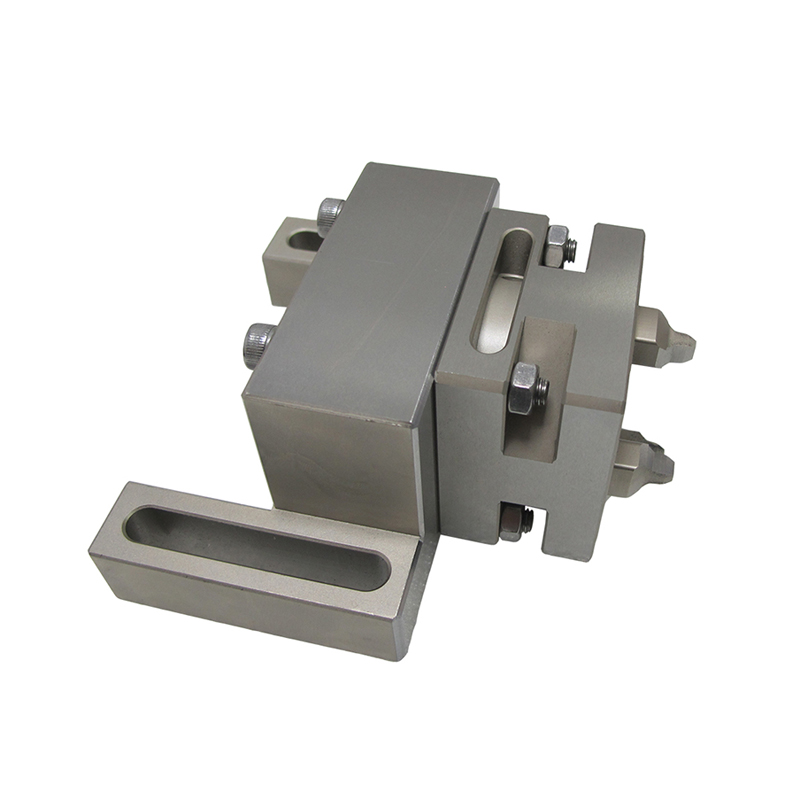

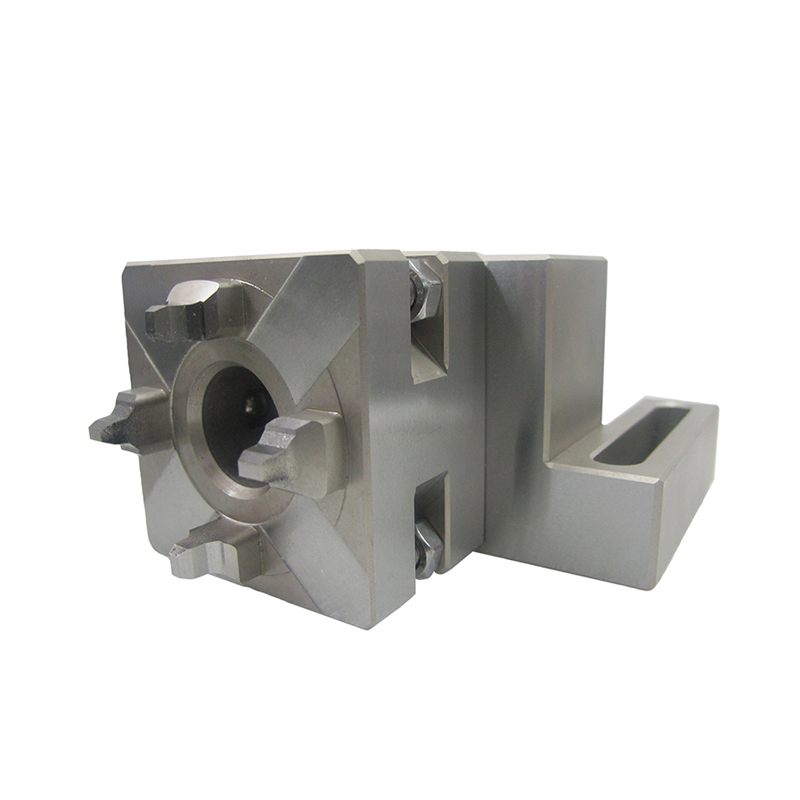

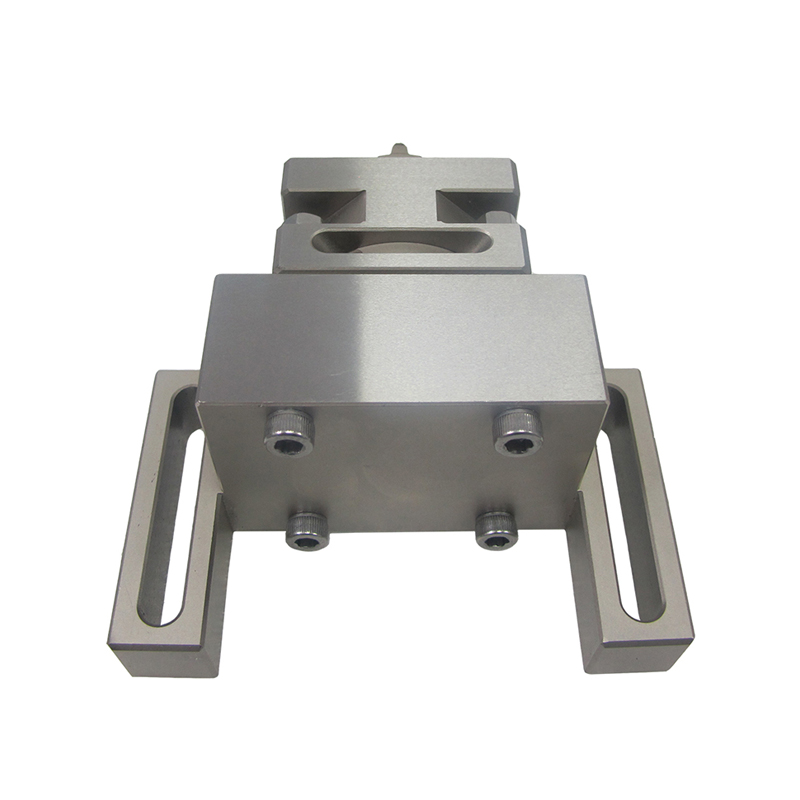

QuickChuck 50 RSM UnoSet ER-022584

Description: POFI QuickChuck 50 RSM UnoSet is compatible with EROWA WEDM Tooling. It is equivalent to ER-022584, a quick chuck 50 mounting on a adapter palte. It is manual operation. Product comes with a stainless steel handle.Clamping power maximum up to 4000N. It applies to be fitted directly to any machine bases with attachement boreholes in a 100mm grid.


Availability:



Inquire

Product Description

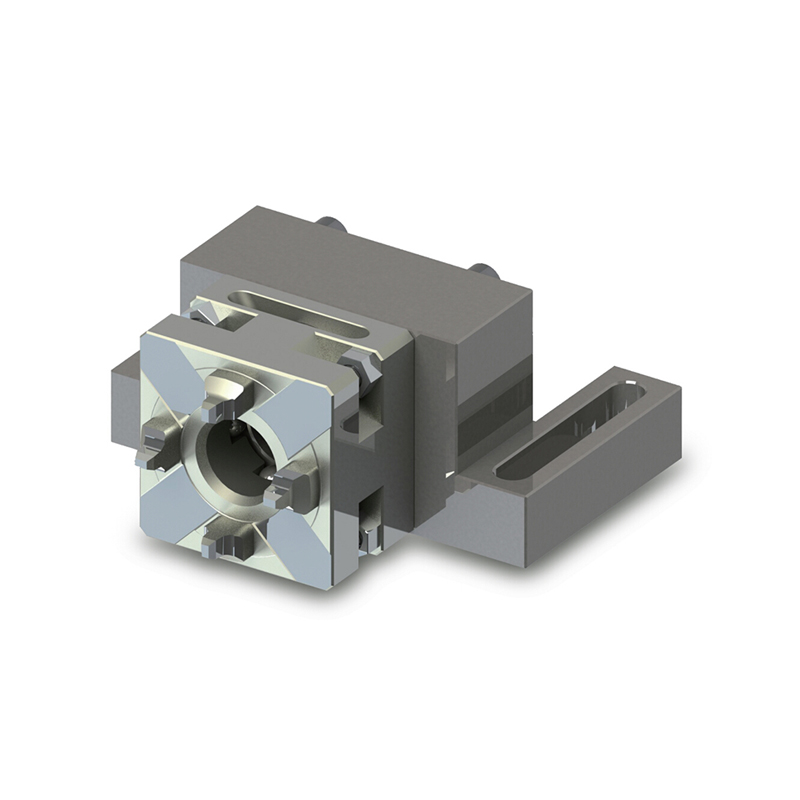

PO-T0003-Fixed Wire-Cut EDM Chuck

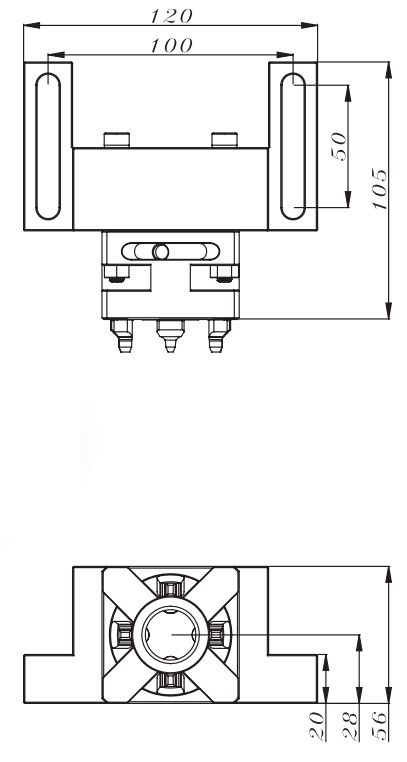

PO-T0003-Fixed Wire-Cut EDM Chuck-Specification

Product Name: QuickChuck 50 RSM UnoSet ER-022584

Item No.:PO-T0003

Description: POFI QuickChuck 50 RSM UnoSet is compatible with EROWA WEDM Tooling. It is equivalent to ER-022584, a quick chuck 50 mounting on a adapter palte. It is manual operation. Product comes with a stainless steel handle.Clamping power maximum up to 4000N. It applies to be fitted directly to any machine bases with attachement boreholes in a 100mm grid.

QuickChuck 50 RSM UnoSet ER-022584 EROWA Quick Chuck 50 EROWA Chuck ITS Chuck Equivalent EROWA models
