Flexible Tooling Fixture 85x65x102mm

Flexible tooling fixture 85x65x102mm is a module for flexible clamping system. It comprises of 61 pins in range of mm. This module applies to testing and measuring requirements. The pins, which cradle the workpiece, are made of stainless steel and the modules are made of aluminum alloy.The molded jaws are formed within seconds by the workpiece itself and locked in position with a single movement of a lever.

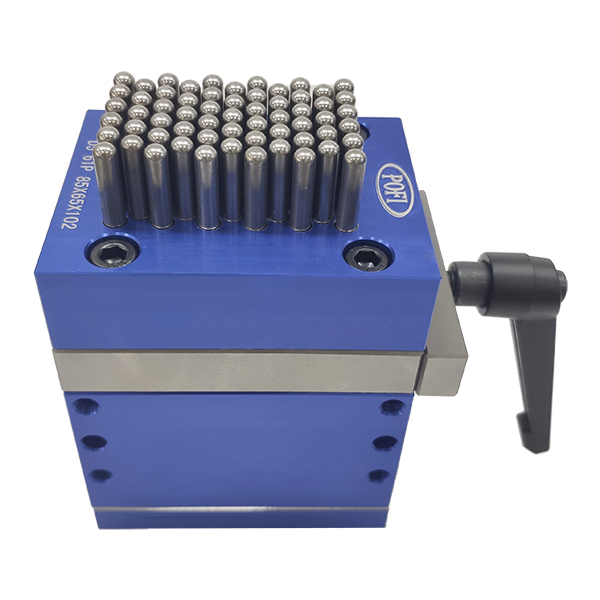

Flexible Tooling Fixture-85x65x102-1-600

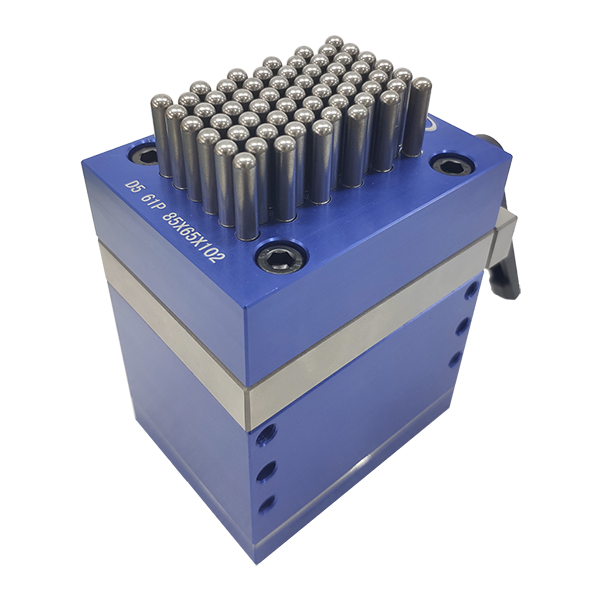

Flexible Tooling Fixture-85x65x102-2-600

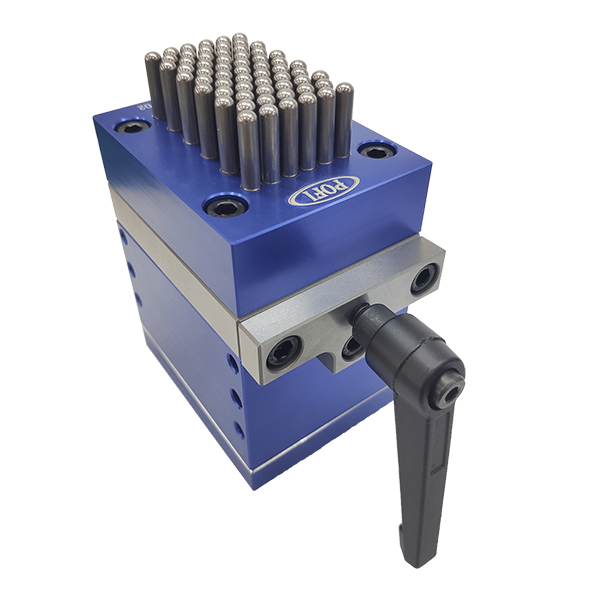

Flexible Tooling Fixture-85x65x102-3-600

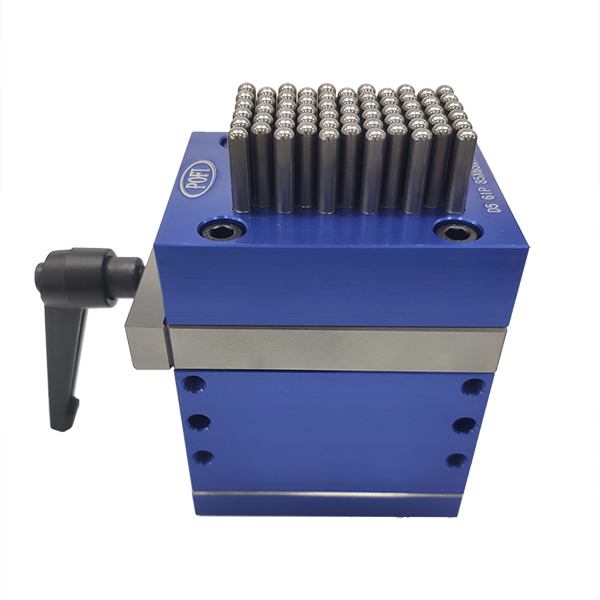

Flexible Tooling Fixture-85x65x102-5-600

Flexible tooling fixture

Product name: Flexible tooling fixture 85x65x102mm

Description: Flexible tooling fixture 85x65x102mm is a module for flexible clamping system. It comprises of 61 pins in range of mm. This module applies to testing and measuring requirements. The pins, which cradle the workpiece, are made of stainless steel and the modules are made of aluminum alloy.The molded jaws are formed within seconds by the workpiece itself and locked in position with a single movement of a lever.
