C-Axis EDM Spindle Pneumatic Chuck 3R-600.86-30

POFI C-Axis EDM Spindle Pneumatic Chuck is compatible with System 3R. It is equivalent to 3R-600.86-30 Pneumatic Chuck, Macro HP. This chuck is for mounting directly the machine spindle. Four M6 clearance holes, 67x20mm and four M5 clearance holes, 63x26mm. Drawbar 3R-605.1 is required for mounting workpiece with centering plate 54x54. Require air pressure 6±1 bar, fixed index position 4x90°. Air-blast cleaning of Z-references.


Availability:



Inquire

Product Description

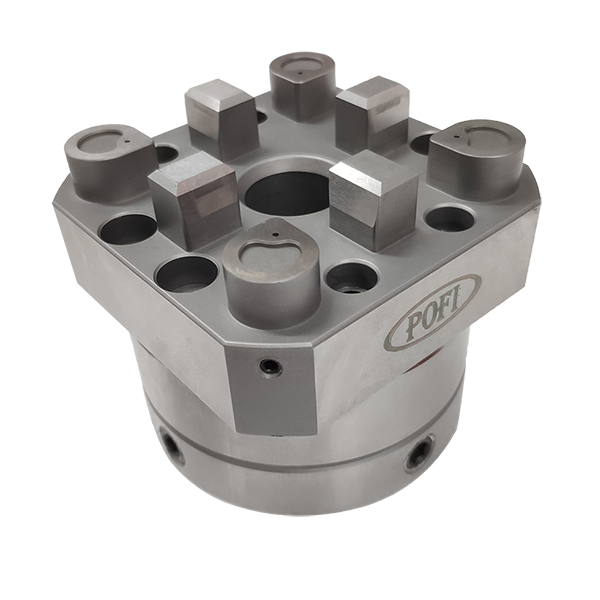

3R-600.86-3N-Pneumatic chuck, MacroNano-1-600

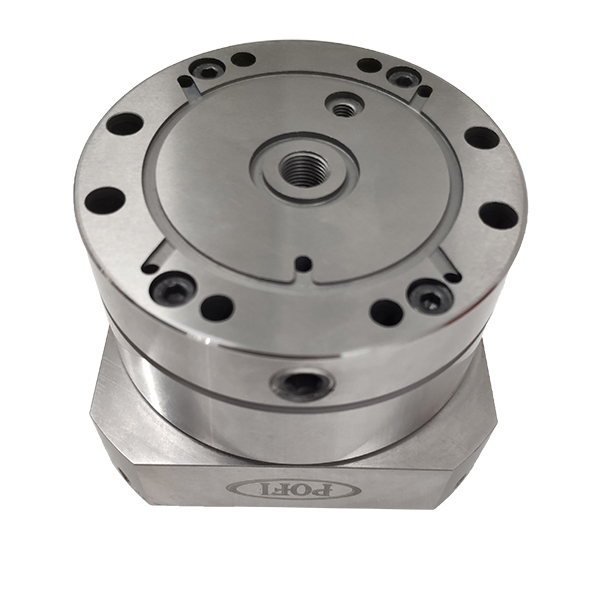

3R-600.86-3N-Pneumatic chuck, MacroNano-2-600

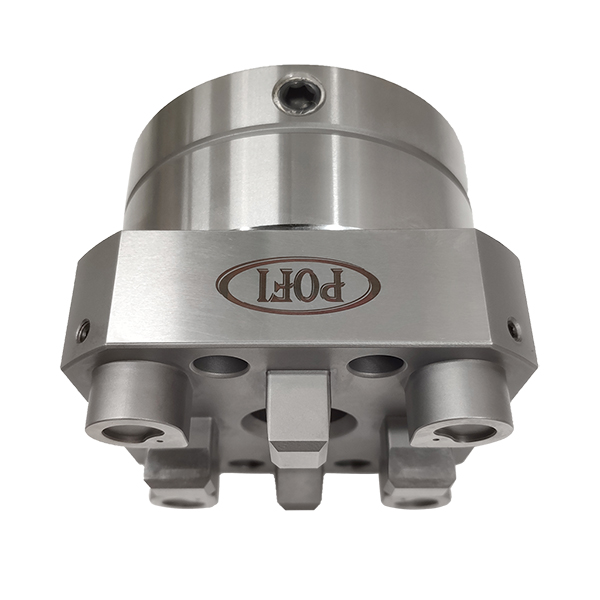

3R-600.86-3N-Pneumatic chuck, MacroNano-3-600

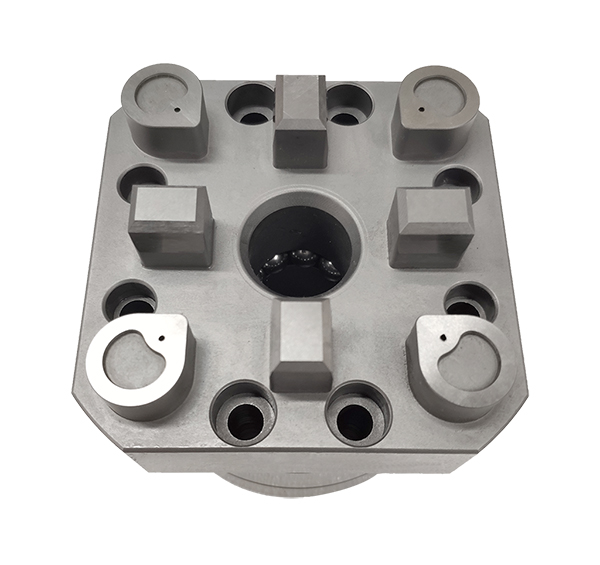

3R-600.86-3N-Pneumatic chuck, MacroNano-4-600

Product Name: C-Axis EDM Spindle Pneumatic Chuck 3R-600.86-30

Item No.: PO-3M0075 (PO-VB0019)

Description: POFI C-Axis EDM Spindle Pneumatic Chuck is compatible with System 3R. It is equivalent to 3R-600.86-30 Pneumatic Chuck, Macro HP. This chuck is for mounting directly the machine spindle. Four M6 clearance holes, 67x20mm and four M5 clearance holes, 63x26mm. Drawbar 3R-605.1 is required for mounting workpiece with centering plate 54x54. Require air pressure 6±1 bar, fixed index position 4x90°. Air-blast cleaning of Z-references.
