POFI Pendulum Holder 3D PalletSet W For WEDM Machine ER-030923

9

POFI Pendulum Holder 3D PalletSet W For WEDM Machine ER-030923

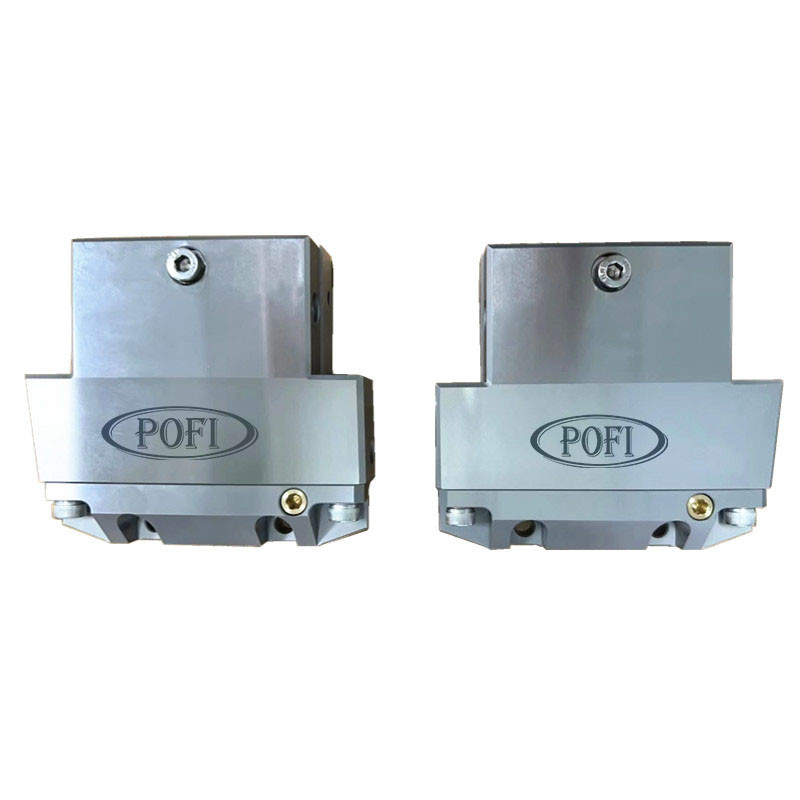

POFI Pendulum Holder 3D PalletSet W For WEDM Machine, compatible to ER-030923.
Version:Pendulum head for automatic and manual loading. G-Centerning plates for increased durability
Application:Basis for all the other clamping elements such as UniVise square, frame pallet, vise and beam pallet.

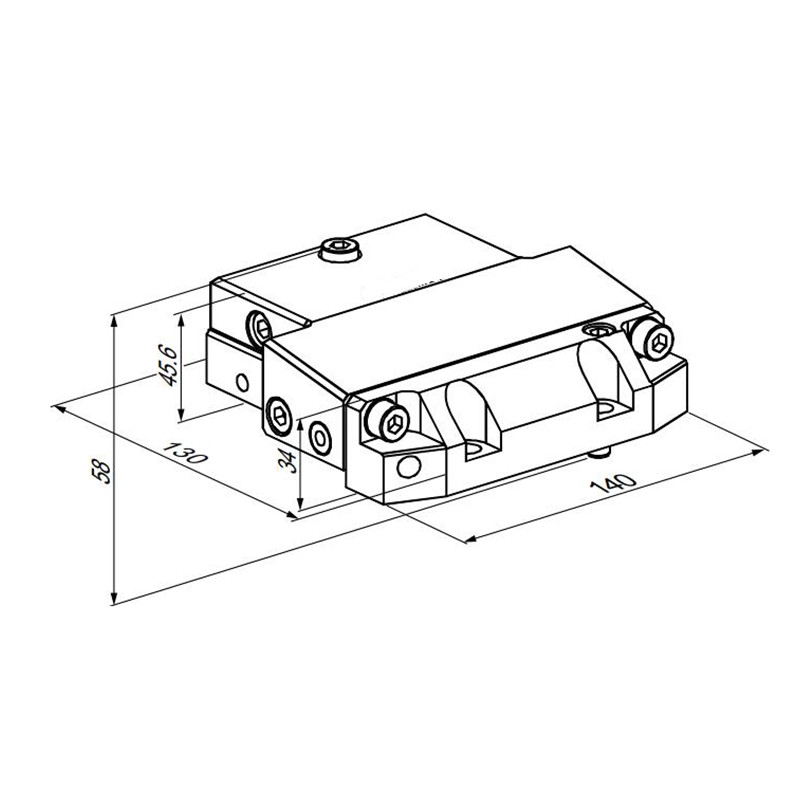

1.Dimensions:130 x 140 x 45.6 mm
2.Repeatability:0.002 mm
3.Automation possible: yes
4.Height:58mm
5.Max. loading:15KG
6.Weight:4.1KG
Note: Adjustable in the X-, Y- and Z-axes.
