70x70 Pallet Macro 3R-601.7E-P

Description: 3M Centering Plate 70x70 is compatible with System 3R and it is equivalent to 3R-601.7E-P moldes.It is machined from solid block 440C Stainless Steel with clearance holes for four fixing screws.


Availability:



Inquire

Product Description

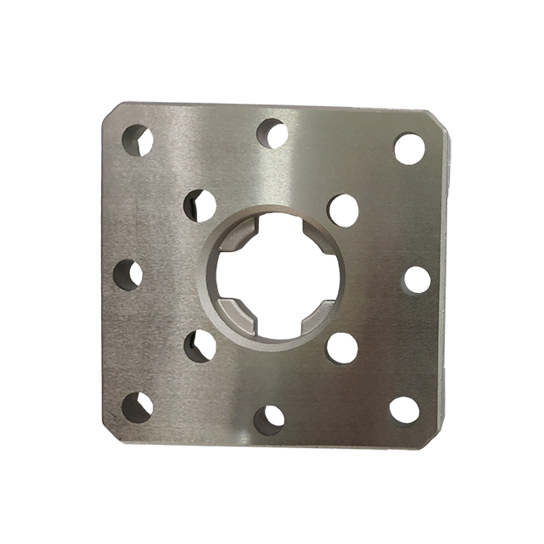

PO-3M0002-3M Centering Plate 70x70-infornt

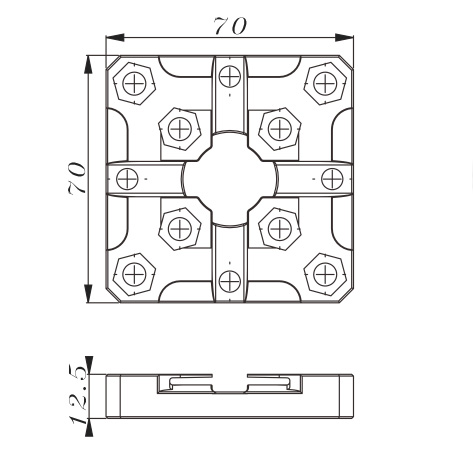

PO-3M0002-3M Centering Plate 54x54-Specifciation

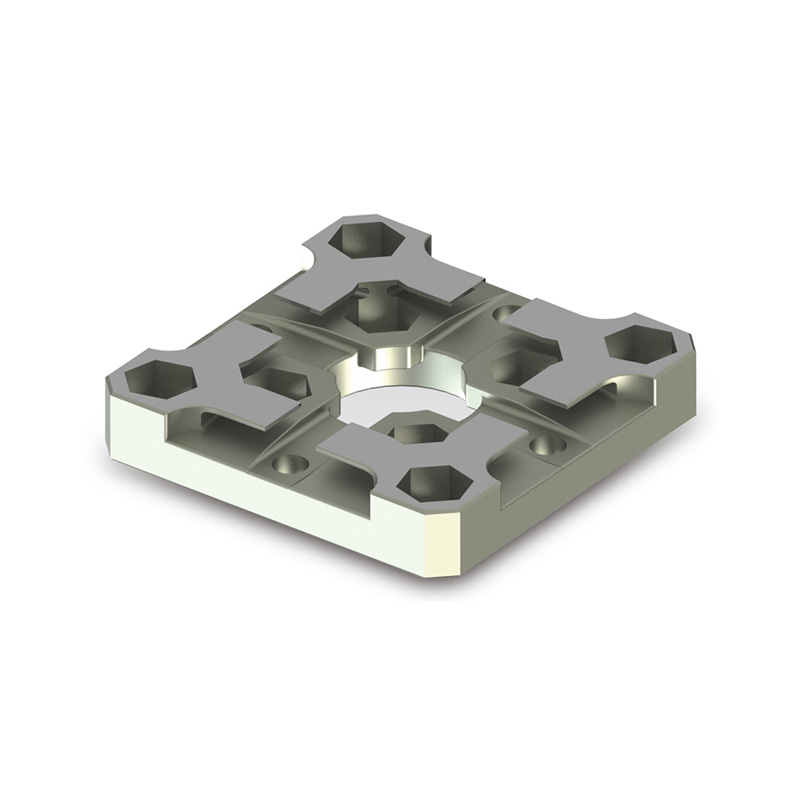

Product Name: 3M Centering Plate 70x70 3R-601.7E-P

Item No.: PO-3M0002

Description: 3M Centering Plate 70x70 is compatible with System 3R and it is equivalent to 3R-601.7E-P moldes.It is machined from solid block 440C Stainless Steel with clearance holes for four fixing screws.

70x70 Pallet Macro 3R-601.7E-P MacroStd System 3R
