M10 Strong Pressure Slider OK Vise

Name: M10 Strong Pressure Slider OK Vise
Brand: POFI
Rating: 5.0 (11 reviews)

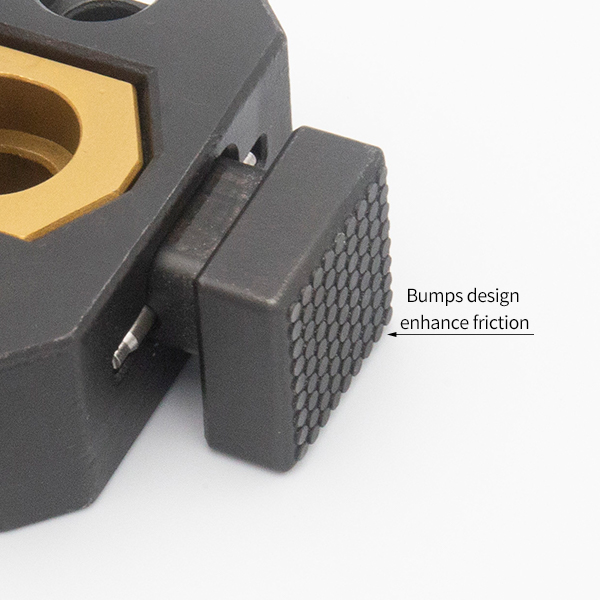

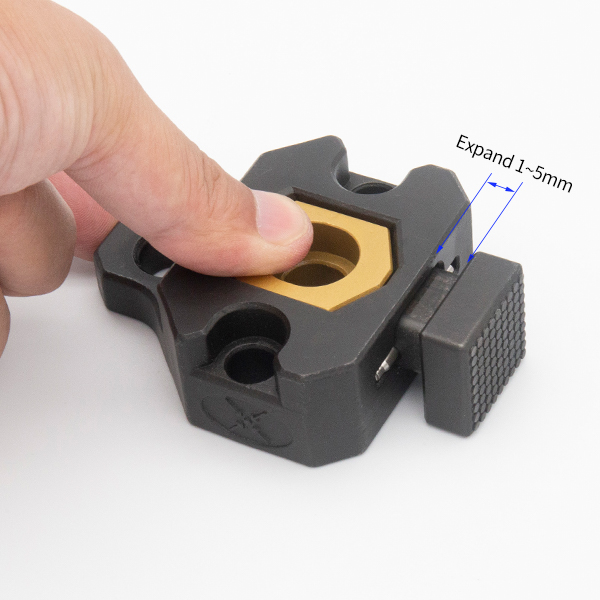

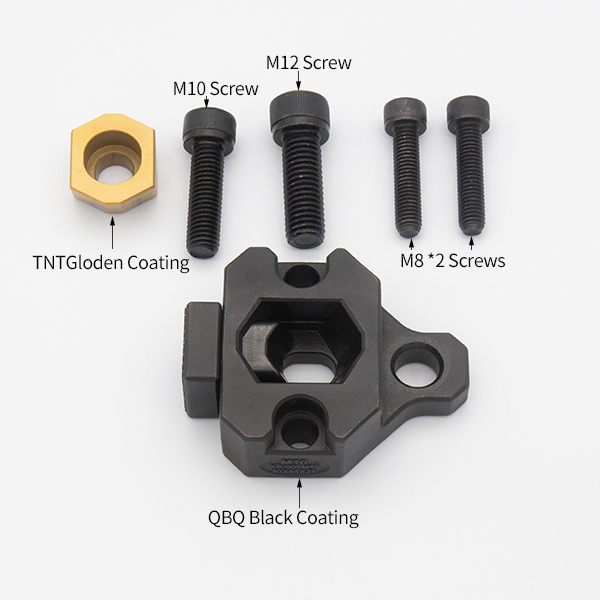

M10 Strong Pressure Slider OK Vise is able to expand when the M10 bolt in the middle is tighten down, simultaneously pressing the workpieces against the guide and preventing their movement. The vise has an excellent clamping force of up to 10 kN which guarantee a holding capacity that clearly exceeds the load of machining forces. Fastening with only one bolt ensures quick set-up times.The manual clamping is normally applied using an allen key with torque guage, however a power tool can also be utilised for convenience. To lengthen the durability of vise, QBQ coating with full body and TNT golden coating with pressed block is our standard surface treatment. Bumped jaw is able to enhance friction between vise and workpieces.


Availability:



Inquire

Brand:
POFI
Code:
PO-XP001M10

Product Description

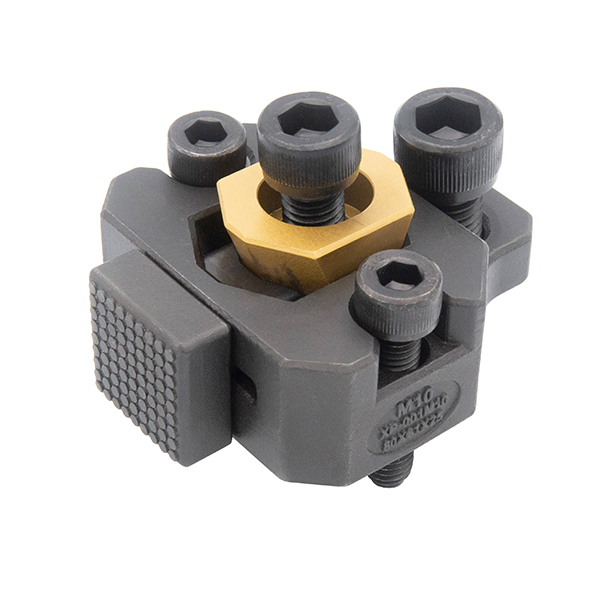

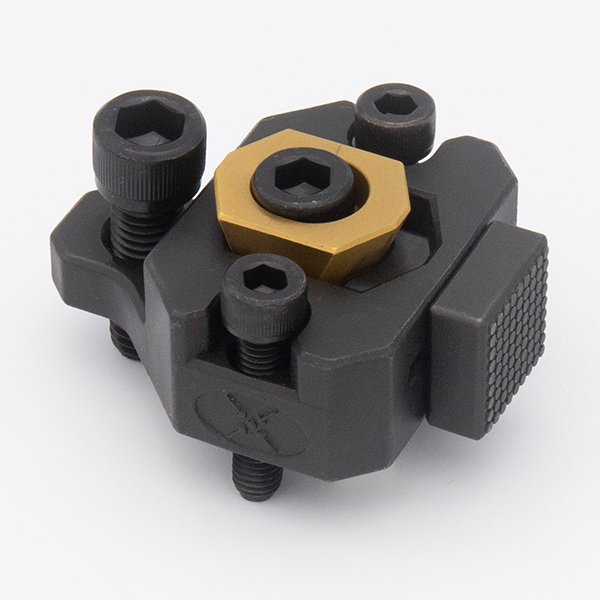

M10 Strong Pressure Slider OK Vise

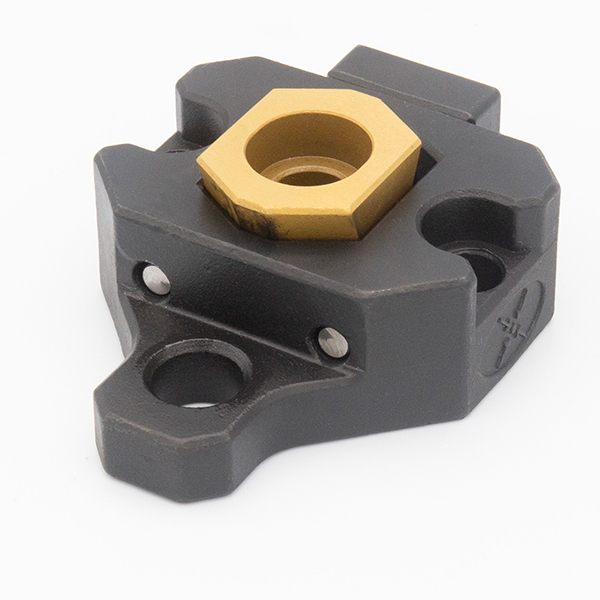

M10 Strong pressure Slider Vise-1

M10-Strong-pressure-Slider-Vise-2

M10-Strong-pressure-Slider-Vise-4

M10-Strong-pressure-Slider-Vise-5

M10-Strong-pressure-Slider-Vise-6

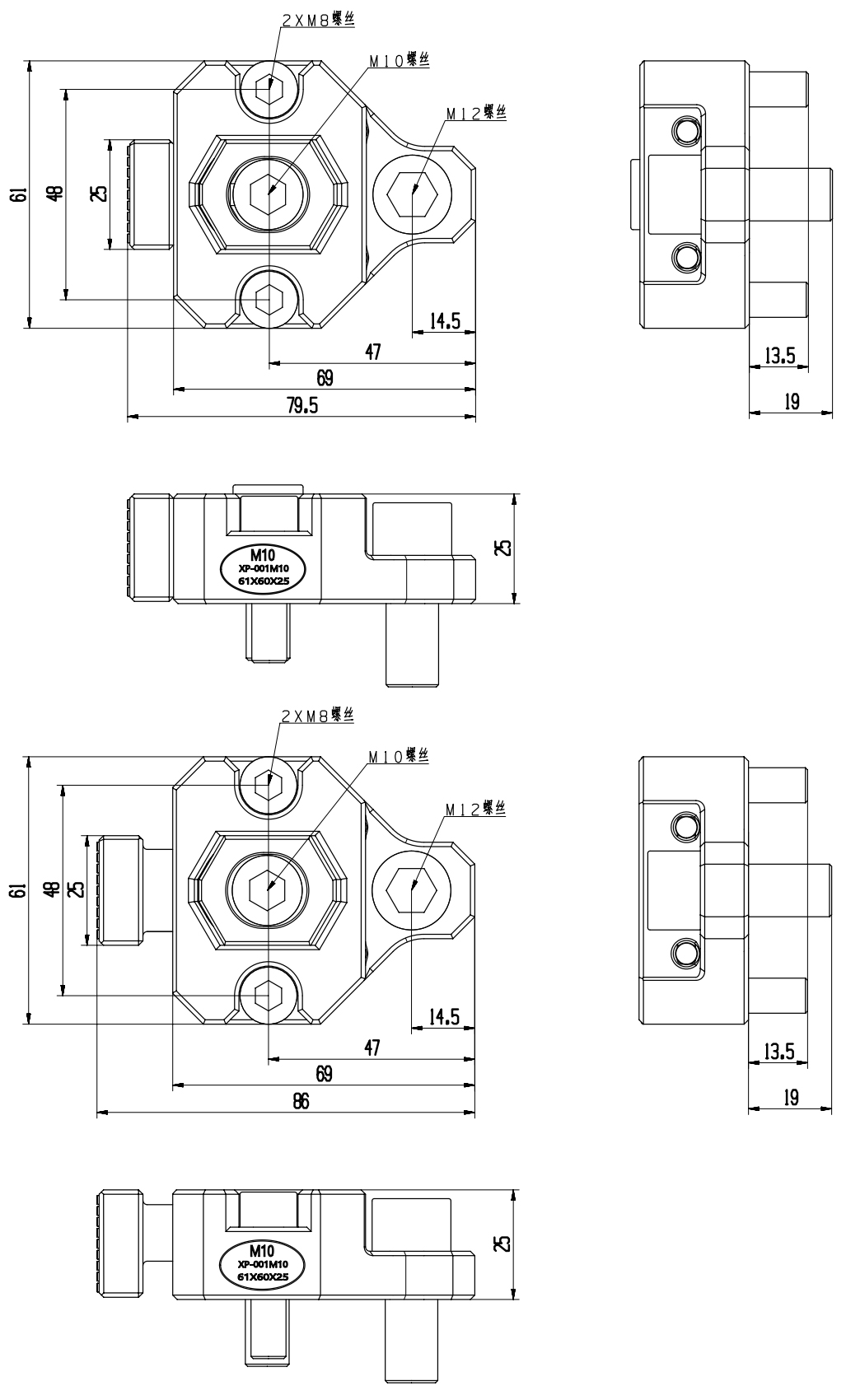

Specification-M10 Srtong Press Slider Vise

Product Name: M10 Strong Pressure Slider OK Vise

Item No.: XP-001M10

Description: M10 Strong Pressure Slider OK Vise is able to expand when the M10 bolt in the middle is tighten down, simultaneously pressing the workpieces against the guide and preventing their movement. The vise has an excellent clamping force of up to 10 kN which guarantee a holding capacity that clearly exceeds the load of machining forces. Fastening with only one bolt ensures quick set-up times.The manual clamping is normally applied using an allen key with torque guage, however a power tool can also be utilised for convenience. To lengthen the durability of vise, QBQ coating with full body and TNT golden coating with pressed block is our standard surface treatment. Bumped jaw is able to enhance friction between vise and workpieces.
