Optimized CNC Pneumatic Chuck ER-043123

POFI Optimized CNC Pneumatic Chuck, it is compatible with EROWA, it is equivalent a chuck ER-043123 ITS Chuck 100 INOX integrated into a CNC base plate. There are 2 air connections on lateral side of chuck, one is for controlling chuck open or close, the other one is for controlling air go through the holes on top surface. Product requires air pressure 6 bar, clamping force is up to 10000N. It applies to accomdate pallet φ115/φ148, electrode holders and milling on CNC lathe.
Availability:
  • POFI
  • PO-Y0003

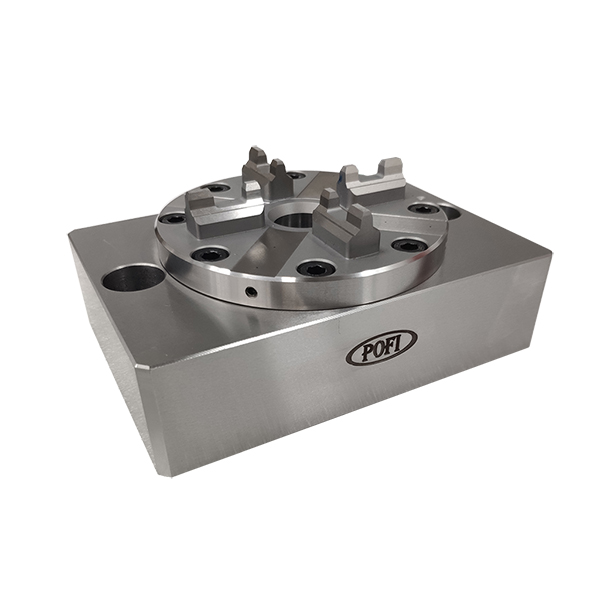

PO-Y0003-Optimized CNC D100 Power Chuck-1-600

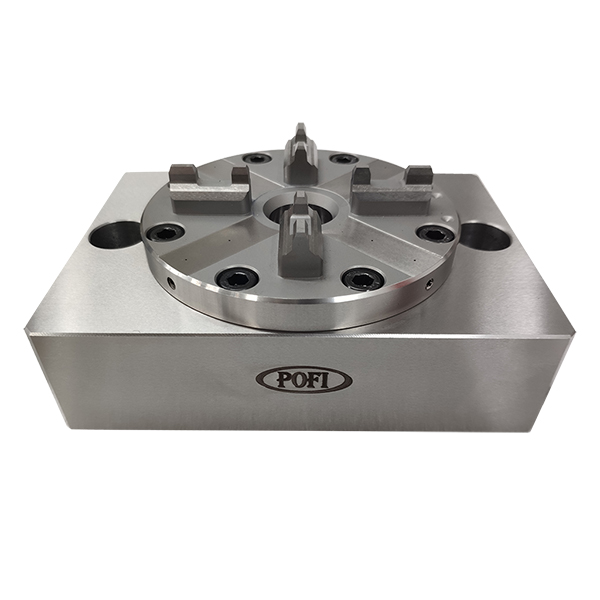

PO-Y0003-Optimized CNC D100 Power Chuck-2-600

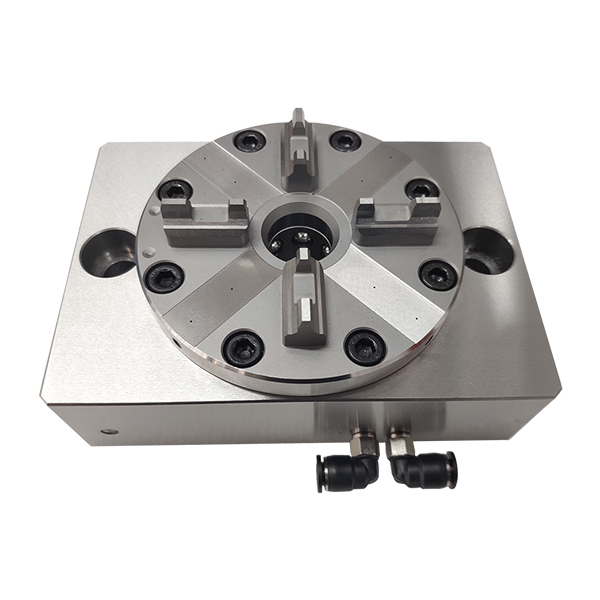

PO-Y0003-Optimized CNC D100 Power Chuck-3-600

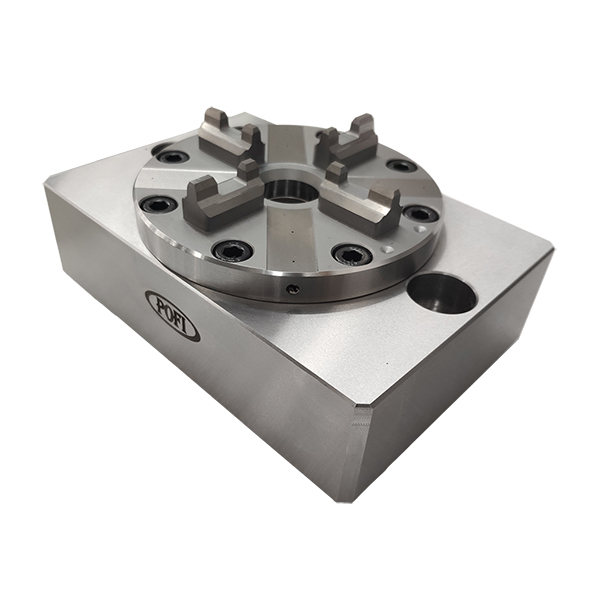

PO-Y0003-Optimized CNC D100 Power Chuck-4-600

Product Name:  Optimized CNC Pneumatic Chuck ER-043123

Item No.: PO-Y0003

Description: POFI Optimized CNC Pneumatic Chuck, it is compatible with EROWA, it is equivalent a chuck ER-043123 ITS Chuck 100 INOX integrated into a CNC base plate. There are 2 air connections on lateral side of chuck, one is for controlling chuck open or close, the other one is for controlling air go through the holes on top surface. Product requires air pressure 6 bar, clamping force is up to 10000N. It applies to accomdate pallet φ115/φ148, electrode holders and milling on CNC lathe.
