POFI WEDM Prism Holder 120mm ER-031179

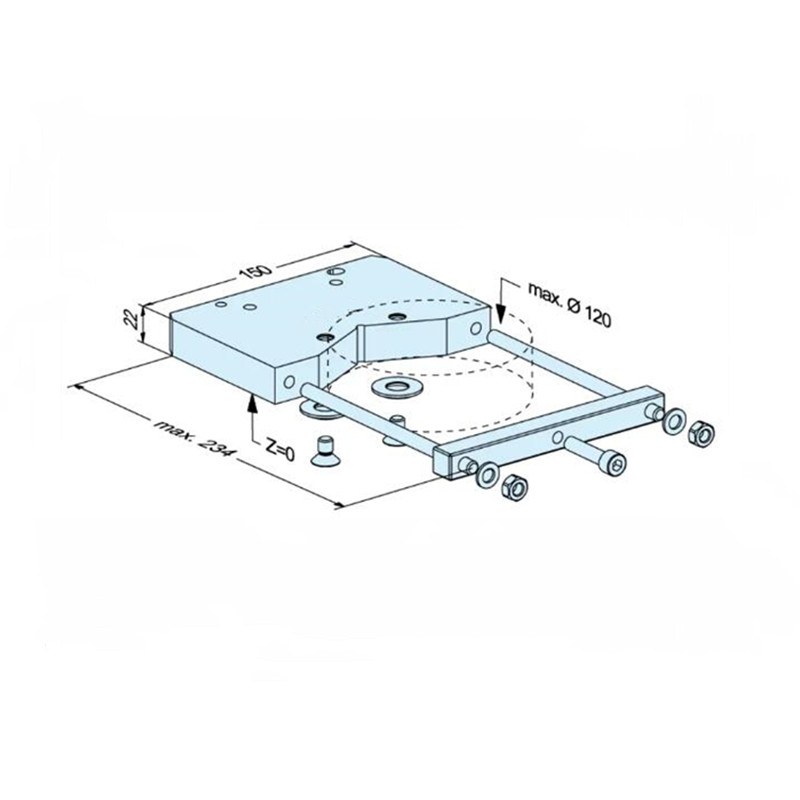

POFI WEDM Prism Holder 120mm ER-031179, for use on EROWA Tooling System Basic WEDM. To clamp cylindrical workpieces of at least ø 15 mm to ø 120 mm.
Material: rust-resistant steell
Dimensions:234 x 150 x 22 mm
Dead weight:2,8 kg
Max. load:10 kg
Workpiece-dimension:min. ø 15 mm,max. ø 120 mm
Availability:
Inquire

sharethis sharing button

POFI WEDM Prism Holder 120mm ER-031179, for use on EROWA Tooling System Basic WEDM. To clamp cylindrical workpieces of at least ø 15 mm to ø 120 mm.

Material: rust-resistant steell

Dimensions:234 x 150 x 22 mm

Dead weight:2,8 kg

Max. load:10 kg

Workpiece-dimension:min. ø 15 mm,max. ø 120 mm

ER031179Prism holder 120mm logo

ER-031179
