6 in 1 Optimized Pneumatic Chucks with Base Plate ER-035519

Name: 6 in 1 Optimized Pneumatic Chucks with Base Plate ER-035519
Brand: POFI
Rating: 5.0 (52 reviews)

POFI 6 in 1 Optimized Pneumatic Chucks with base plate, it is compatible with EROWA ITS system. We integrated advantages of ER-035519 ITS chuck 100 P with base plate to developed our own design. Making 6 chucks inner parts integrated into one base plate. It leads product to be in low-profile. Clamping force of each chuck can up to 10000N. Air connections are at lateral side which are controlled by air gun or control unit. It applies to accommodating 6 pcs electrode holders or workpieces to do machining once at a time.


Availability:


Inquire

Brand: POFI
Code: PO-Y0007

Product Description

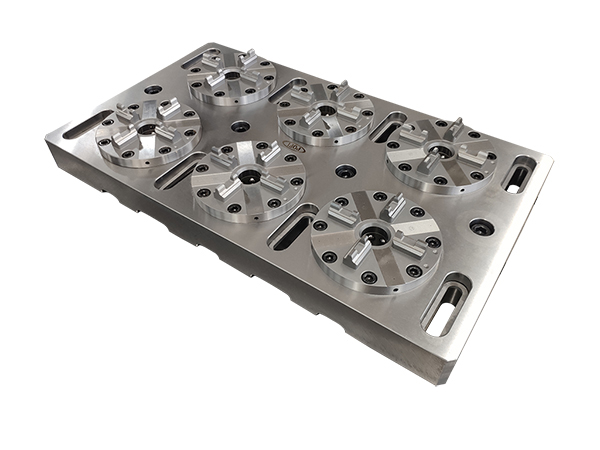

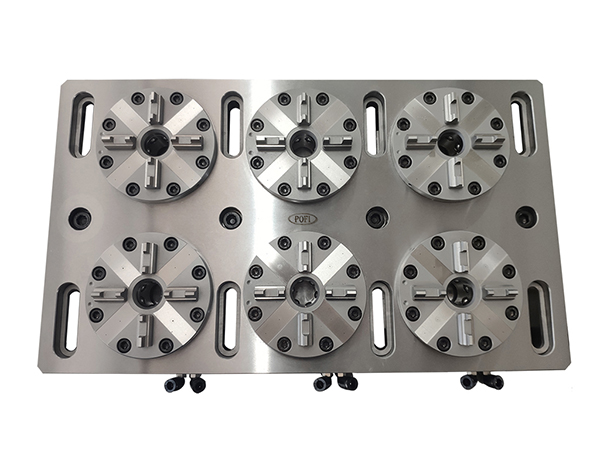

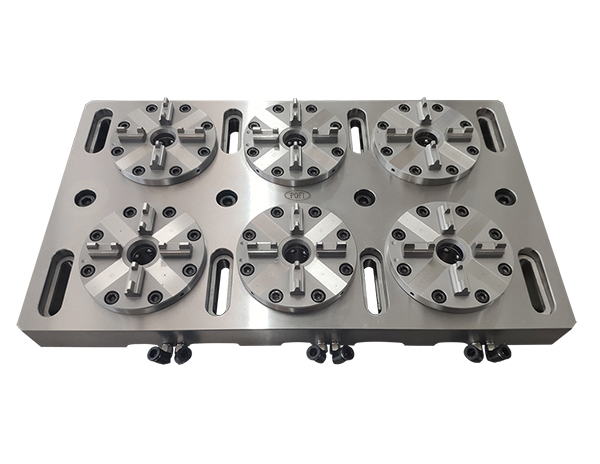

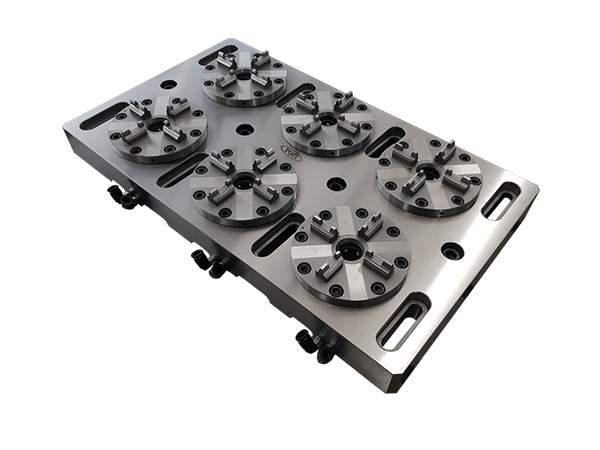

6 in 1 Optimized Pneumatic Chucks

PO-Y0007-6 IN 1Optimized CNC D100 Power Chuck-2-600

PO-Y0007-6 IN 1Optimized CNC D100 Power Chuck-3-600

PO-Y0007-6 IN 1Optimized CNC D100 Power Chuck-4-600

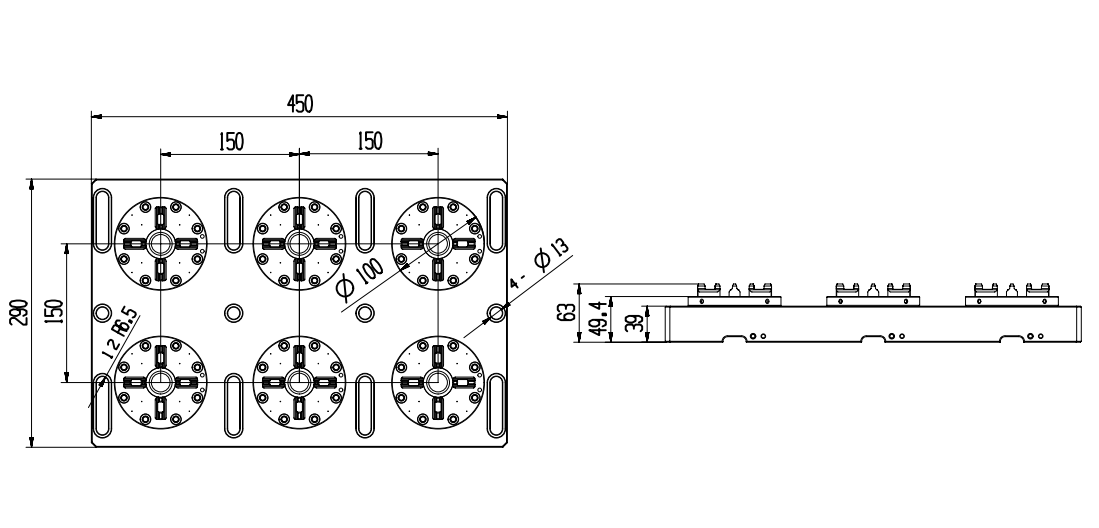

6 in 1 Optimized Pneumatic Chuck D100 Specification

Product Name: 6 in 1 Optimized Pneumatic Chucks with Base Plate ER-035519

Item No.: PO-Y0007

Description: POFI 6 in 1 Optimized Pneumatic Chucks with base plate, it is compatible with EROWA ITS system. We integrated advantages of ER-035519 ITS chuck 100 P with base plate to developed our own design. Making 6 chucks inner parts integrated into one base plate. It leads product to be in low-profile. Clamping force of each chuck can up to 10000N. Air connections are at lateral side which are controlled by air gun or control unit. It applies to accommodating 6 pcs electrode holders or workpieces to do machining once at a time.
