EROWA Compatible S20 Pocket Electrode Holder Prisround ER-009222 ER-010063

9

EROWA Compatible S20 Pocket Electrode Holder Prisround ER-009222 ER-010063

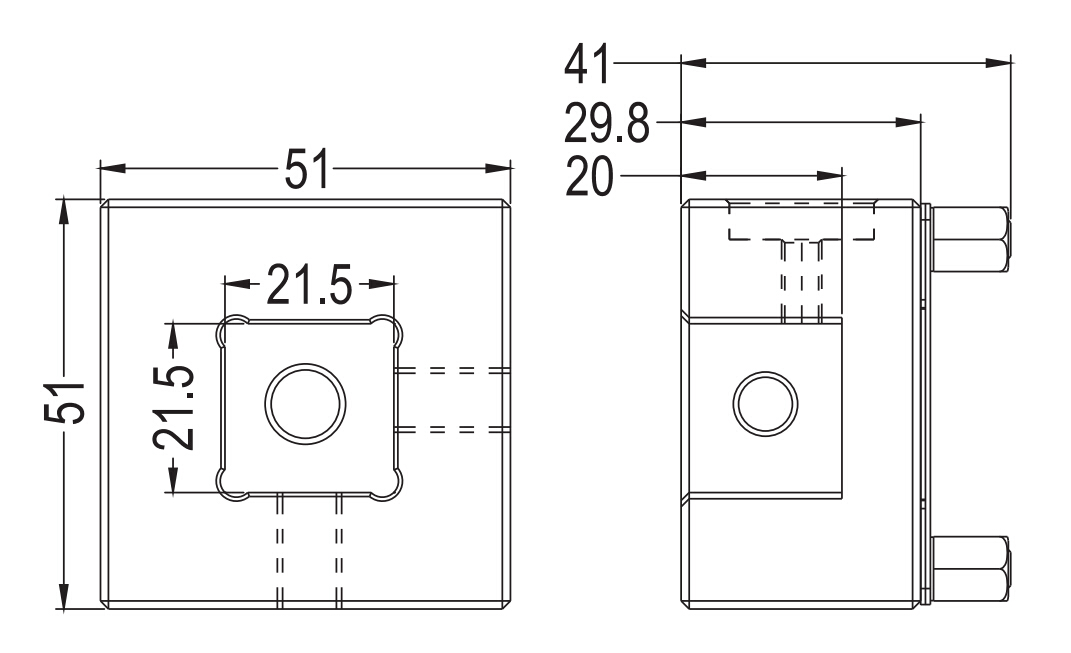

POFI S20 Pocket Electrode Holder is compatible with EROWA ITS system, and it is similar with ER-009222 and ER-010063. Product is milled out square 21.5mm in the middle, and slot part can be customized as you required. RIFD chip hole and chip are provided if they are needed. Product material has 3 option: Stainless steel(B), Bras(C) and Aluminum(D). It applies to mount electrodes and workpieces with a base surface of more than 50mm.


Material:	(B)Stainless Steel (C)Brass (D)Aluminum
Availability:



Inquire

Product Description

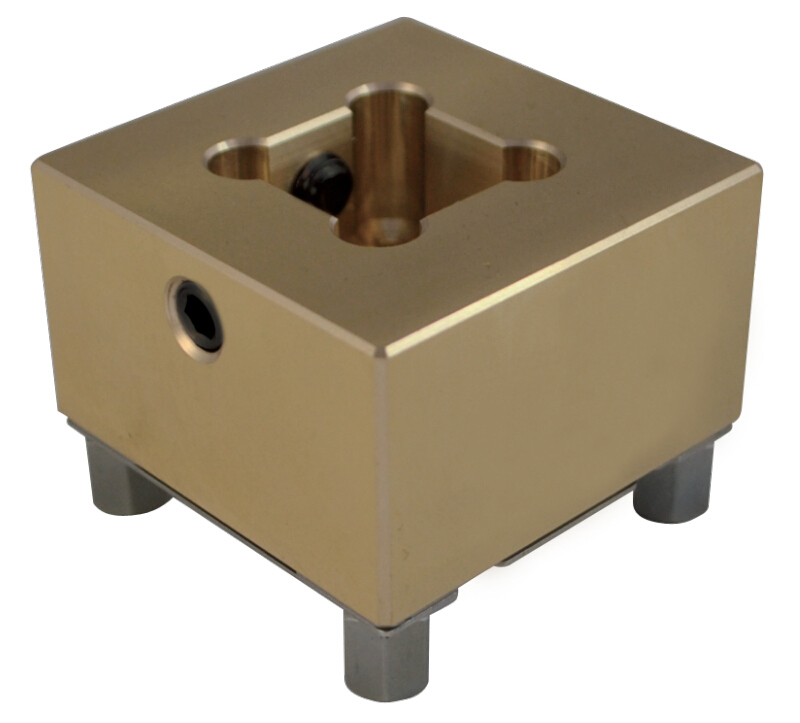

S20 Brass Electrode Holder

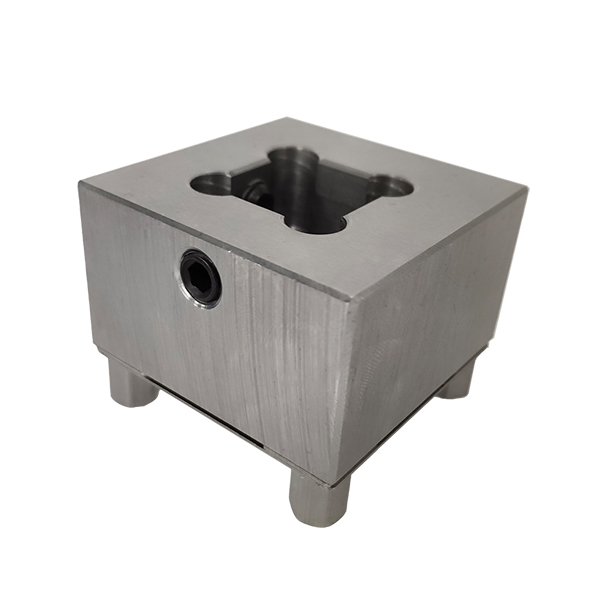

S20 Stainless Steel Electrode Holder

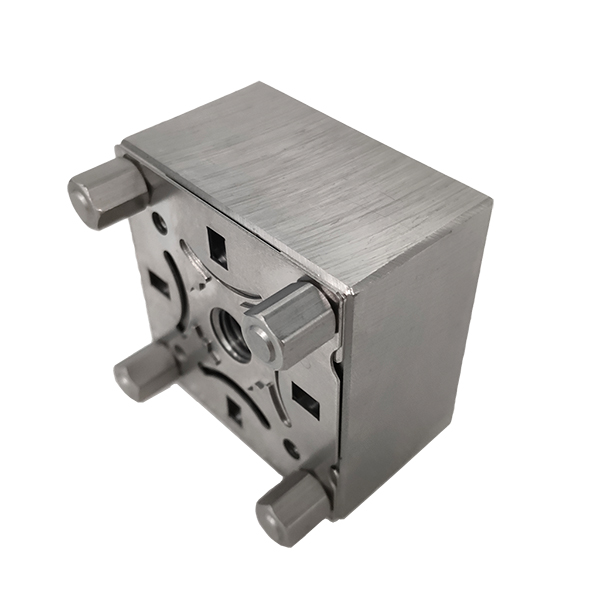

S20 Stainless Steel Holder-4-600

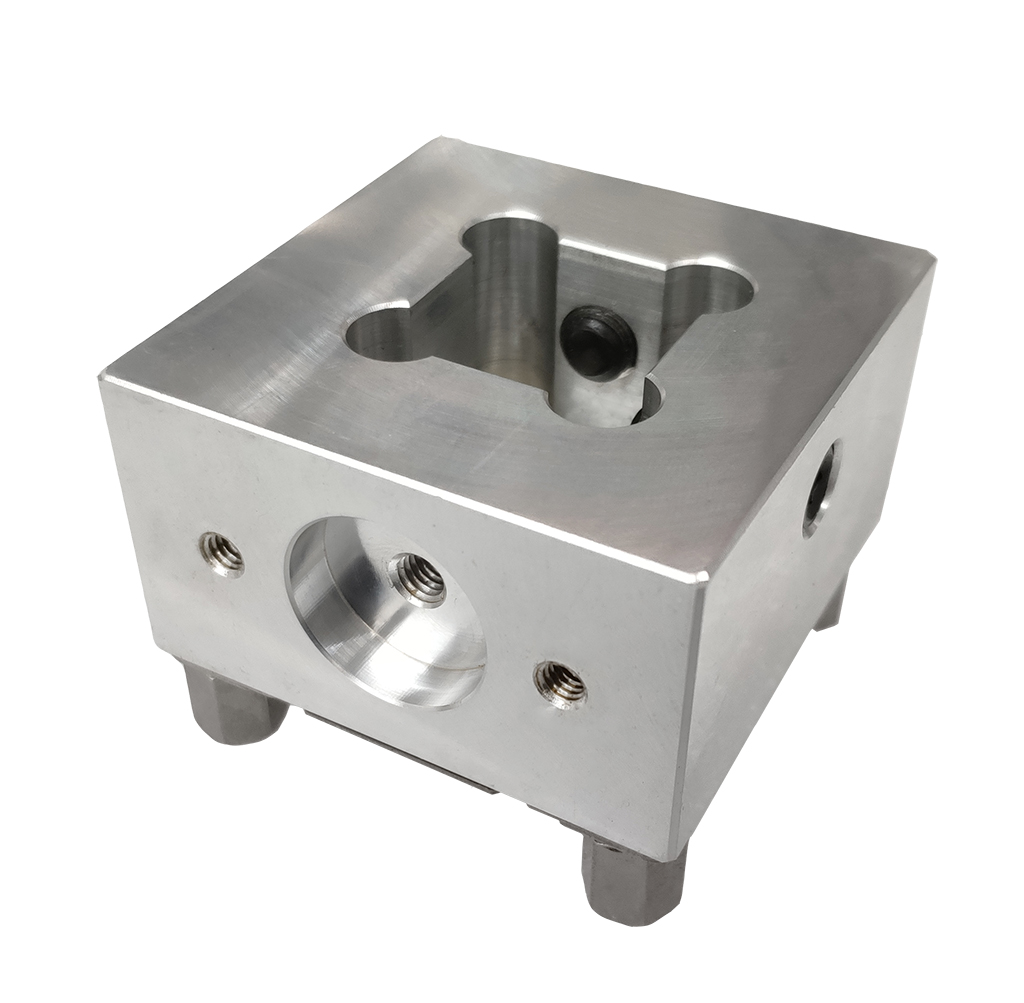

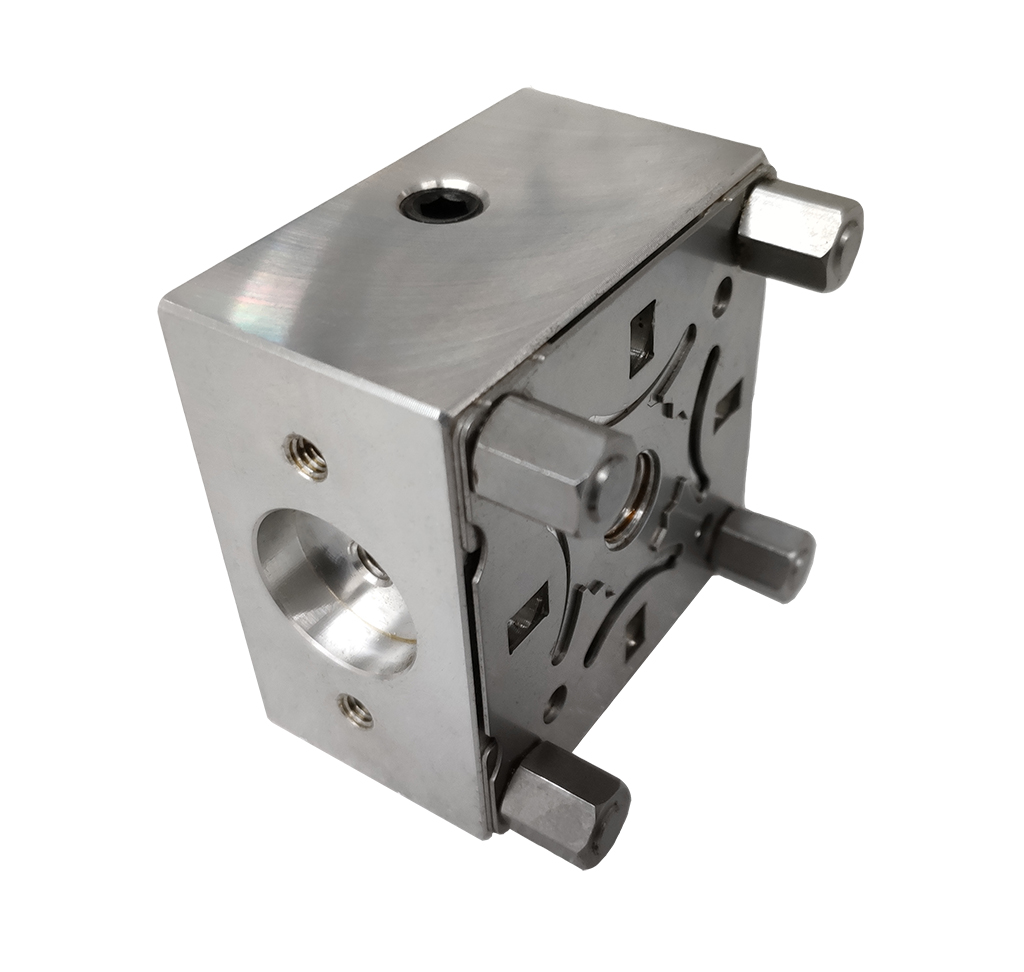

S20 Aluminum Electrode Holder

Product Name: EROWA Compatible S20 Pocket Electrode Holder Prisround ER-009222 ER-010063

Item No.: PO-B0006 / PO-C0006 / PO-D0006

Description: POFI S20 Pocket Electrode Holder is compatible with EROWA ITS system, and it is similar with ER-009222 and ER-010063. Product is milled out square 21.5mm in the middle, and slot part can be customized as you required. RIFD chip hole and chip are provided if they are needed. Product material has 3 option: Stainless steel(B), Bras(C) and Aluminum(D). It applies to mount electrodes and workpieces with a base surface of more than 50mm.
