V-Block Holder Unoset ER-016691

Description: V-shape Wire Cut EDM Holder is compatible with EROWA EDM Tooling and it is equivalent to ER-016691 V-Block Holder UnoSet. Its loading weight maximun up to 1.5kgs. It applies to clamp parts in prismatic slot. Parallel and angular precision 0.01mm.


Availability:



Inquire

Product Description

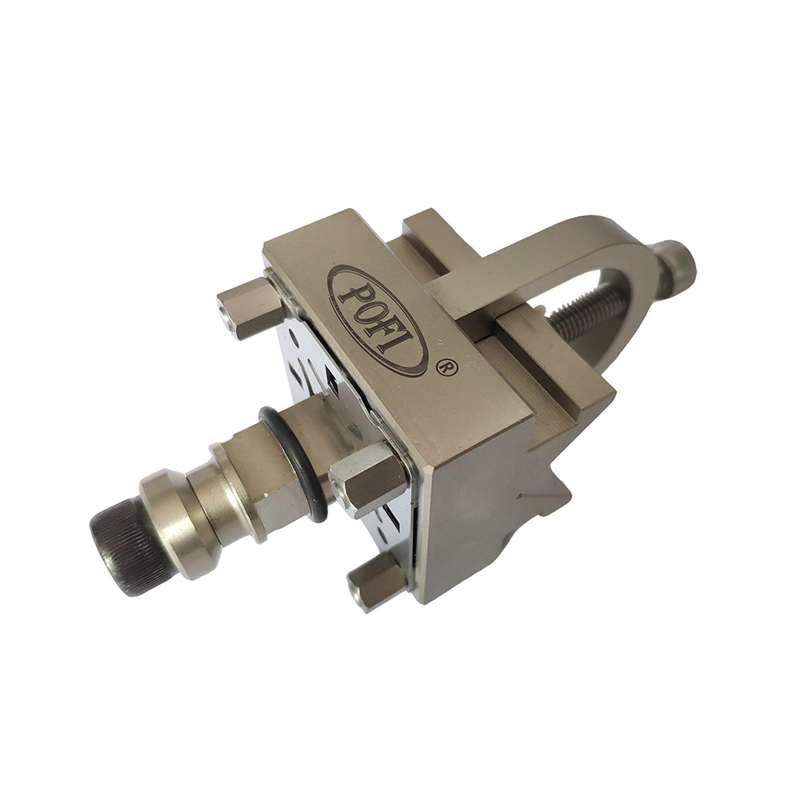

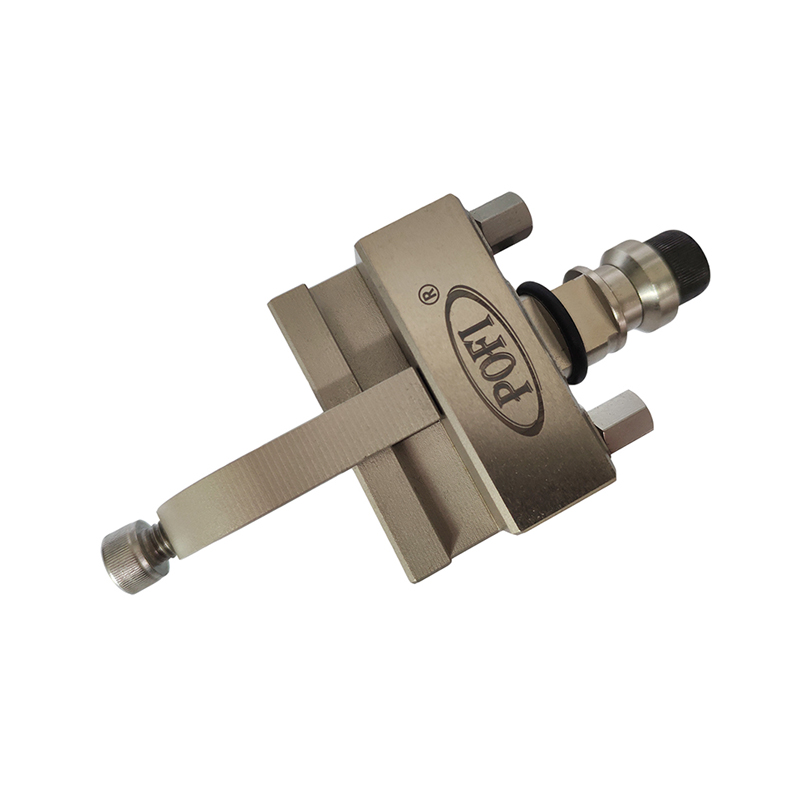

V-Block Holder holder Unoset-2

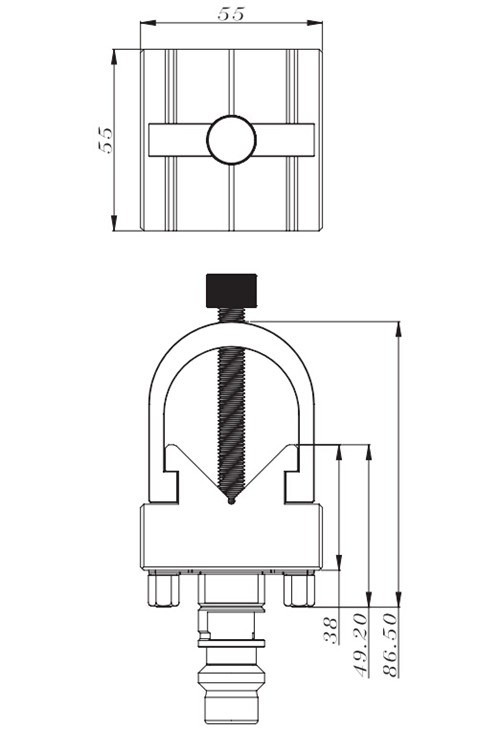

PO-T0001-V-SHARP WIRE CUT EDM HOLDER-Specification

Product Name: V-shape Wire Cut EDM Holder ER-016691

Item No.: PO-T0001

Description: V-shape Wire Cut EDM Holder is compatible with EROWA EDM Tooling and it is equivalent to ER-016691 V-Block Holder UnoSet. Its loading weight maximun up to 1.5kgs. It applies to clamp parts in prismatic slot. Parallel and angular precision 0.01mm.

V-Block Holder Unoset ER-016691 Electrode Holder EROWA Holders Equivalent EROWA models
