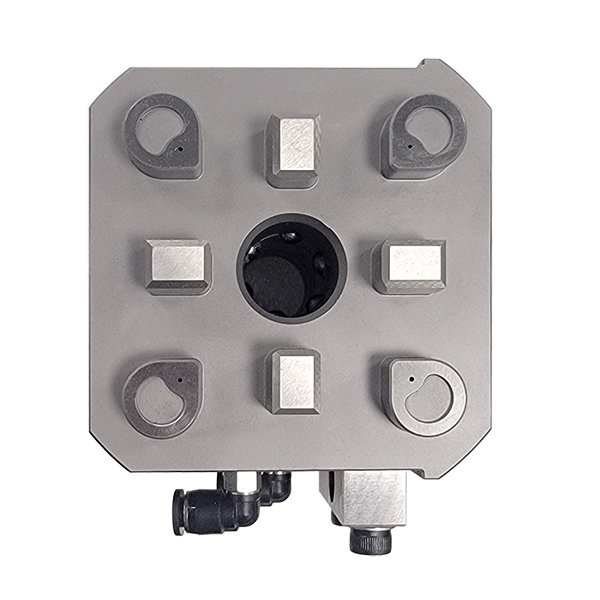

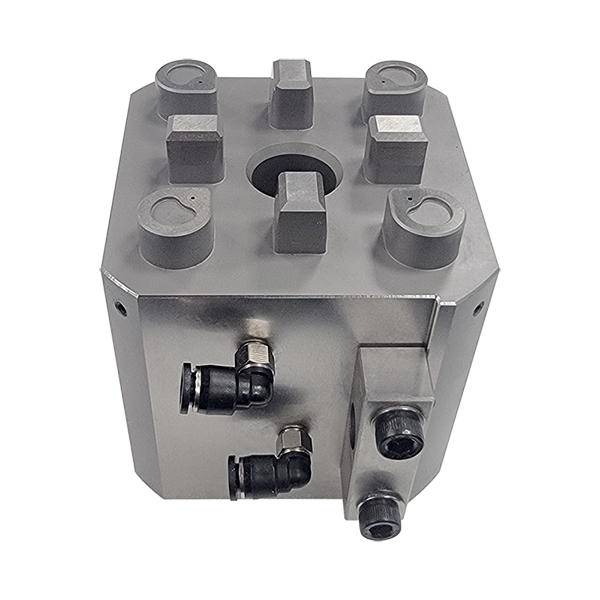

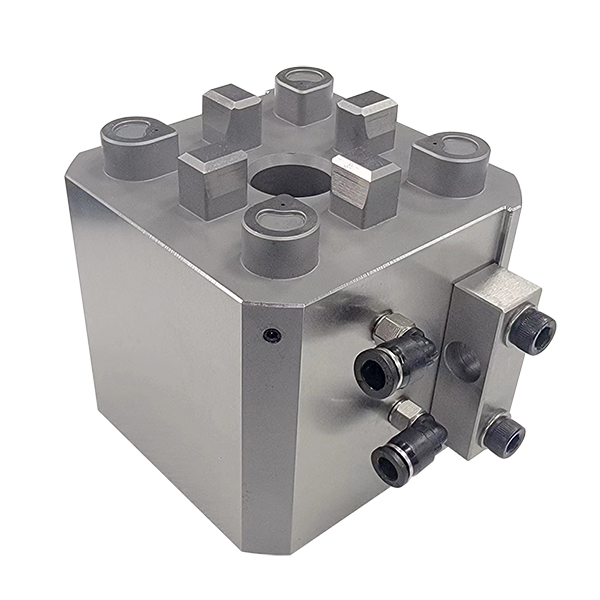

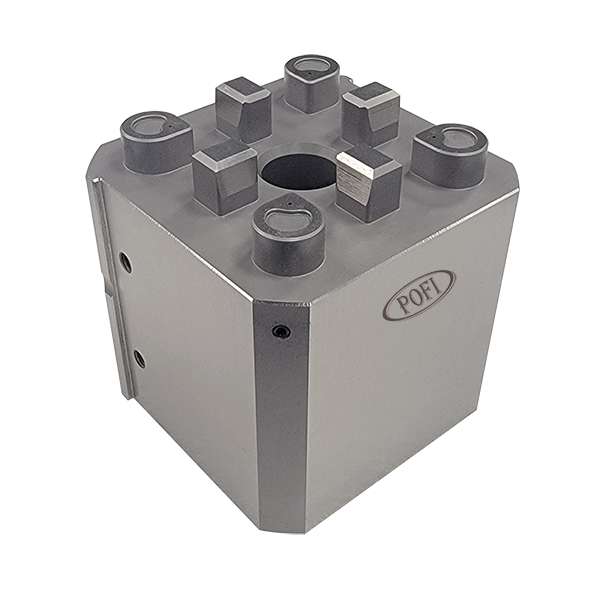

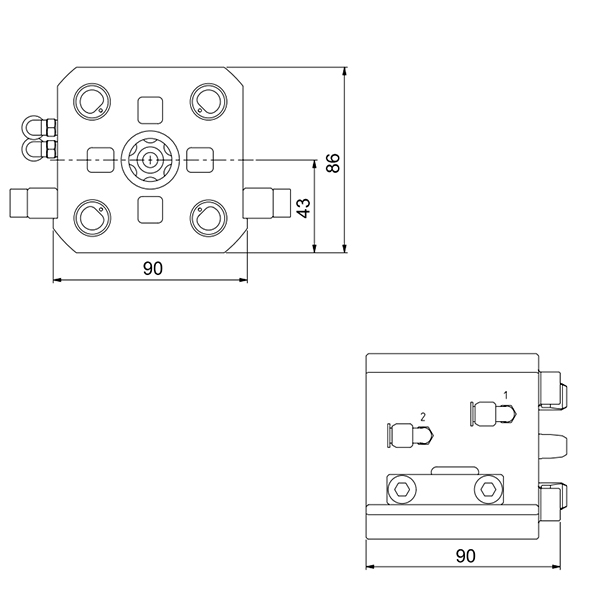

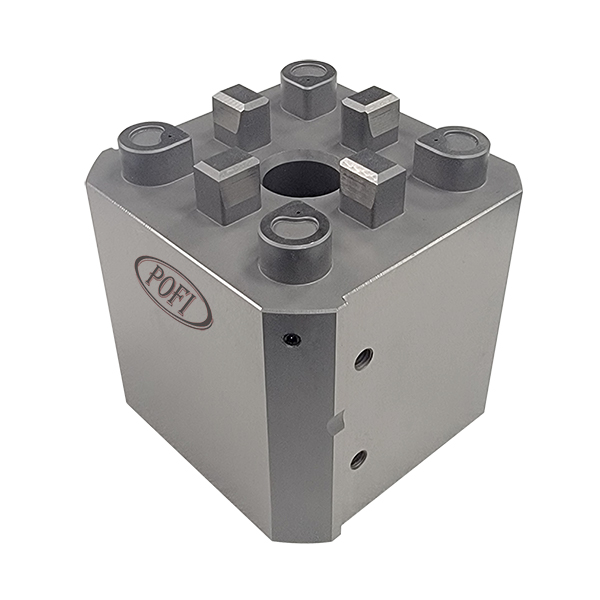

POFI Pneumatic Chuck for Macro 3R-602.4.1

POFI Pneumatic Chuck for Macro compatible to 3R-602.4.1. Required drawbar 3R-605.1RS, Pneumatic chuck for Macro holder.
• Clamping force 6000 N
• Fixed index positions 4x90º
• Air-blast cleaning of Z-references
• Weight 3.7 kg
Availability:
Inquire

sharethis sharing button

  • PO-3M602.4.1

  • POFI

POFI Pneumatic Chuck for Macro compatible to 3R-602.4.1. Required drawbar 3R-605.1RS, Pneumatic chuck for Macro holder.

• Clamping force 6000 N

• Fixed index positions 4x90º

• Air-blast cleaning of Z-references

• Weight 3.7 kg

Pneumatic chuck Macro1a System 3R 3R-602.4System 3R OEM 3R-602.4.1 Pneumatic chuck Macro
