Alignment Pallet φ115 ER-032819

POFI Alignment Pallet φ115 is compatible with EROWA system. It is euqivalent to ER-032819. The alignment length in the middle of pallet upper surface is 110mm. Center borehole is φ12mm. It applies to be alignment of radial, axial and angular position of ITS Chucks,PowerChuck P and PC 210 Combi Chucks. Moreover, there is 2 option for alignment pallet. One comes with ER-011599 Centering Plate 100 M8, another one comes with ER-036658 Centering Plate G INOX. Customer can choose it according to your requirement.


Availability:



Inquire

Product Description

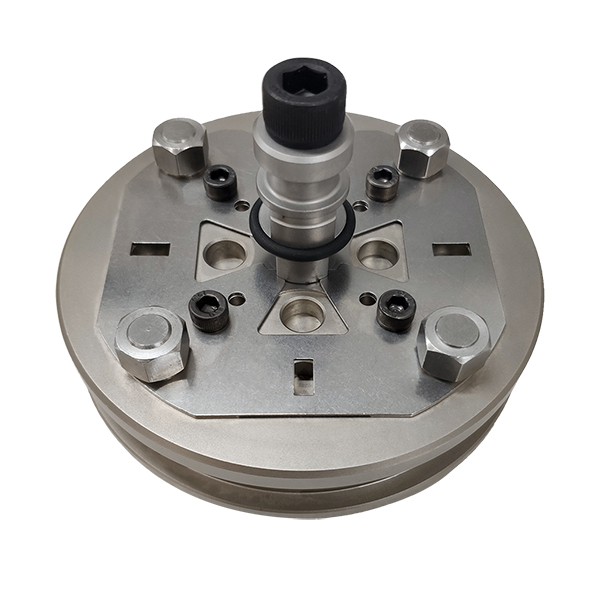

ER-032819-Alignment Pallet D115-1-600

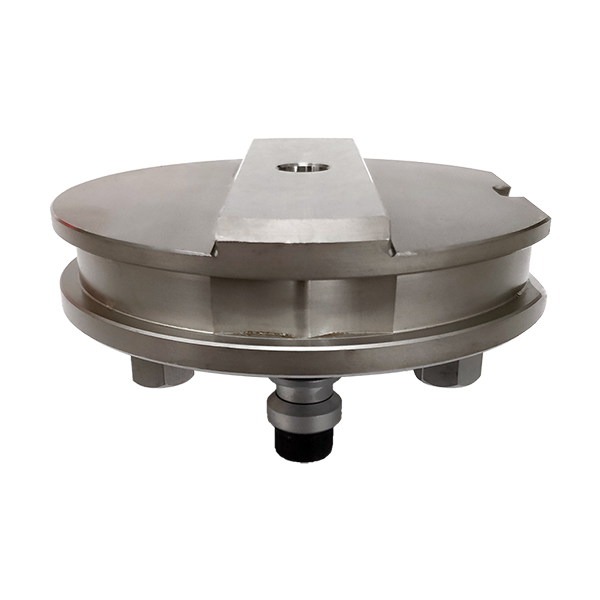

ER-032819-Alignment Pallet D115-3-600

Comes with ER-011599 Centering Plate 100 M8

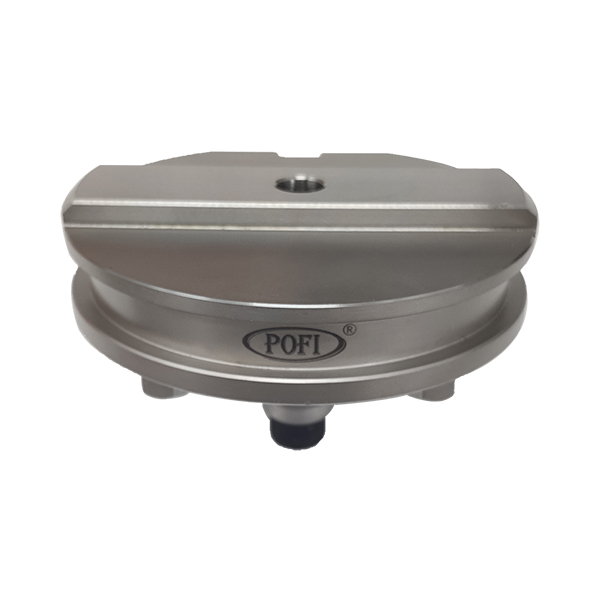

ER-032819-Alignment Pallet D115-6-600

Comes with ER-036658 Centering Plate G INOX

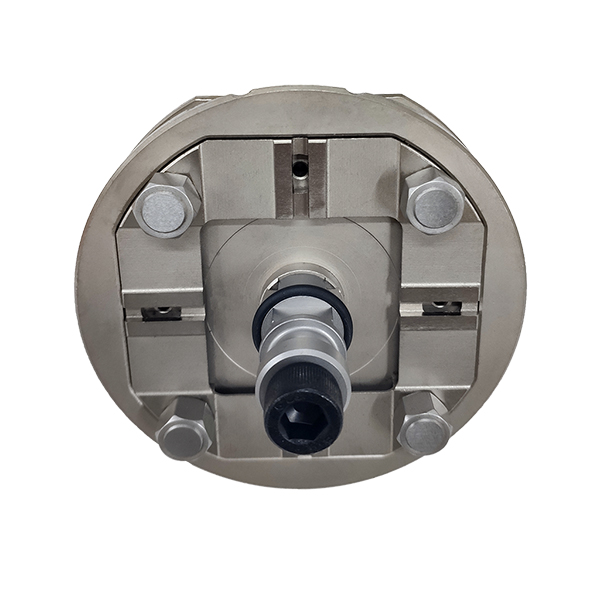

ER-032819-Alignment Pallet D115-4-600

PO-U0005-D115 ITS REFERENCE PALLET-Specification

Product Name: Alignment Pallet φ115 ER-032819

Item No.:PO-U0005

Description: POFI Alignment Pallet φ115 is compatible with EROWA system. It is euqivalent to ER-032819. The alignment length in the middle of pallet upper surface is 110mm. Center borehole is φ12mm. It applies to be alignment of radial, axial and angular position of ITS Chucks,PowerChuck P and PC 210 Combi Chucks.Moreover, there is 2 option for alignment pallet. One comes with ER-011599 Centering Plate 100 M8, another one comes with ER-036658 Centering Plate G INOX. Customer can choose it according to your requirement.
