What Is EDM,EDM machinning and EDM toolings?

What is EDM?

EDM stands for Electrical Discharge Machining.

Simply put, EDM is the reverse of welding. The EDM process uses electricity to remove material from a conductive metal workpiece. The electrode uses an electric spark, without ever touching the part, to remove material in the shape required. There are three forms of EDM: Wire EDM, Sinker EDM, and Small Hole EDM Drilling.

Why Choose EDM?

The EDM process allows for complex setups that conventional machining cannot achieve.

It creates simple or complex shapes or patterns that would be challenging to produce with conventional cutting tools.

Hold demanding tolerances that cannot be achieved with traditional machining methods.

What is EDM machining?

Electrical Discharge Machining (EDM), also known as Spark Machining or Die Sinking, is a non-traditional, thermoelectric manufacturing process. It is renowned for its ability to machine exceptionally hard, conductive materials with high precision and complex geometries that are difficult or impossible to achieve with conventional cutting methods.

Electrical Discharge Machining is a cornerstone of modern precision manufacturing. By harnessing the power of controlled electrical sparks, it provides a unique and vital capability for shaping the hardest and most challenging materials into complex, high-precision components, pushing the boundaries of design and engineering.

What is EDM fixture?

Common Types of EDM Fixtures

· Vises: Precision machinist vises (often made of stainless steel to prevent corrosion) are versatile for holding rectangular or block-shaped workpieces.

· Tombstones: A modular, cube-shaped fixture mounted on a rotary table. It allows multiple parts to be set up on different faces, enabling the machining of several sides in a single setup. This is highly efficient for production work.

· Modular Fixturing Systems: These consist of a library of standardized components (base plates, angle plates, clamps, locators) that can be quickly assembled and disassembled to create custom fixtures for a wide variety of part geometries.

· Magnetic Chucks: Used for holding ferromagnetic materials. They provide a flat, unobstructed holding surface, ideal for thin plates in Wire-EDM applications.

· Custom-Built Fixtures: For complex or high-volume production, fixtures are custom-designed and manufactured for a specific component. These offer the highest level of optimization for part geometry, clamping, and flushing.

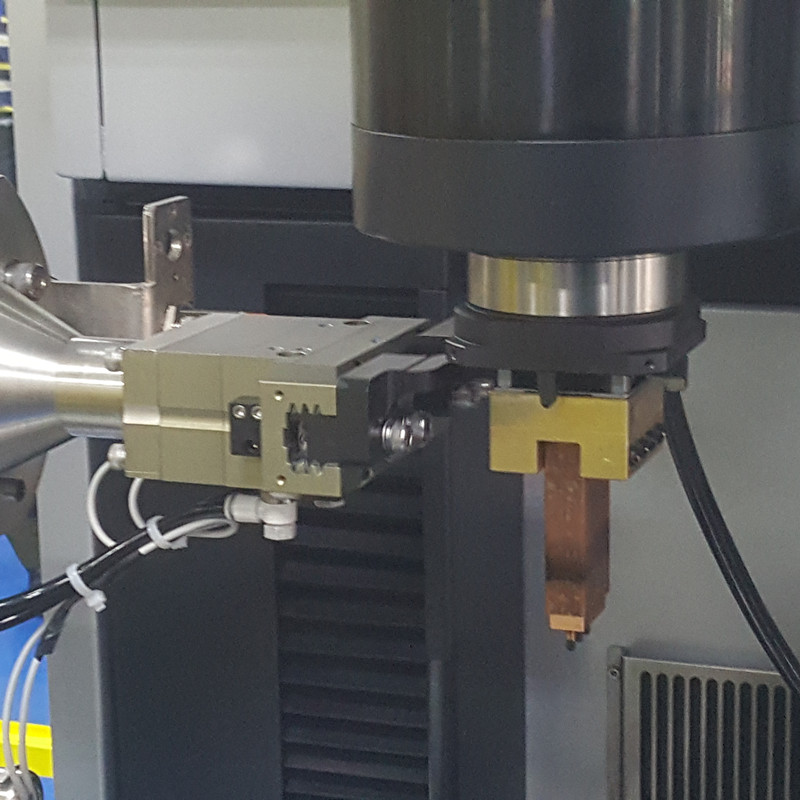

· 3R System / Universal Tooling: A popular modular system that uses a highly precise coupling mechanism between the machine table and the fixture. It allows for rapid and ultra-precise (< 5µm repeatability) changeover of pallets, electrodes, and workpieces.

Investing in high-quality, well-designed EDM fixtures is not an expense but a critical investment that yields significant returns:

· Enhanced Accuracy: Eliminates setup errors and ensures part features are machined exactly to specification.

· Improved Process Stability: Secure holding and proper flushing lead to uninterrupted machining, reducing the risk of wire breakage (in Wire-EDM) or arcing.

· Reduced Setup Time: Modular and quick-change systems dramatically decrease non-productive time between jobs.

· Increased Productivity: The ability to run unattended or machine multiple parts simultaneously (e.g., with tombstones) significantly boosts throughput.

· Consistency and Quality Assurance: Repeatable positioning guarantees that every part in a batch is identical, ensuring high and consistent quality.

The EDM positioning fixture is an indispensable element of the EDM process. It is the critical link between the machine's potential and the final part's precision. A robust and precise fixturing strategy is a cornerstone of successful, efficient, and high-quality EDM manufacturing. POFI edm tooling is professional manuafacturer in China, feel free reach us for any EDM Solutions.
