the components of a wire EDM fixture

Views:11     Author:Site Editor     Publish Time: 2020-06-21      Origin:Site

Wire EDM fixture is widely used in the manufacturing industry, is one of the very important technological equipment in each technological stage of product manufacturing, the quality of the jig used in production, work efficiency, and the reliability of the use of jig will have a decisive relationship with the product processing quality and production efficiency.POFI is a EDM tooling manufacturer in Guangdong,China, It is a leading company for molds and metal working industry, we focused our research on EDM clamping system tools.

Next,let me introduce some knowledges of the components of a wire EDM fixture:

(1) Positioning element and positioning device

Some elements that determine the position of the workpiece in the fixture are called positioning elements, such as support plates, support nails, positioning shafts, keys, etc. Their function is to make a batch of workpieces occupy the same position in the fixture. As long as the positioning base surface of the workpiece is in contact with or matched with the positioning element on the fixture, the workpiece can be positioned. Some fixtures also use a positioning device composed of some parts to position the workpiece


(2) Clamping device

In the fixture, it is composed of power devices (such as cylinders, oil cylinders, etc.), intermediate force transmission mechanisms (such as levers, threaded transmission pairs, inclined wedges, cams, etc.) and clamping elements (such as jaws, pressure wrenches, pressure blocks, etc.) The device is called a clamping device. Their role is to maintain the determined position of the workpiece in the fixture, and to withstand various forces during the processing process without any change


(3) Tool setting and guide elements

In the fixture, the components used to determine the position of the tool used in processing are called tool setting and guiding elements, such as drill sleeves and tool setting blocks. Their role is used to determine the position of the fixture relative to the tool (such as a milling cutter, planer, etc.), or to guide the direction of the tool (such as a drill bit for hole processing, a reamer, a reamer, a pincer, etc.).

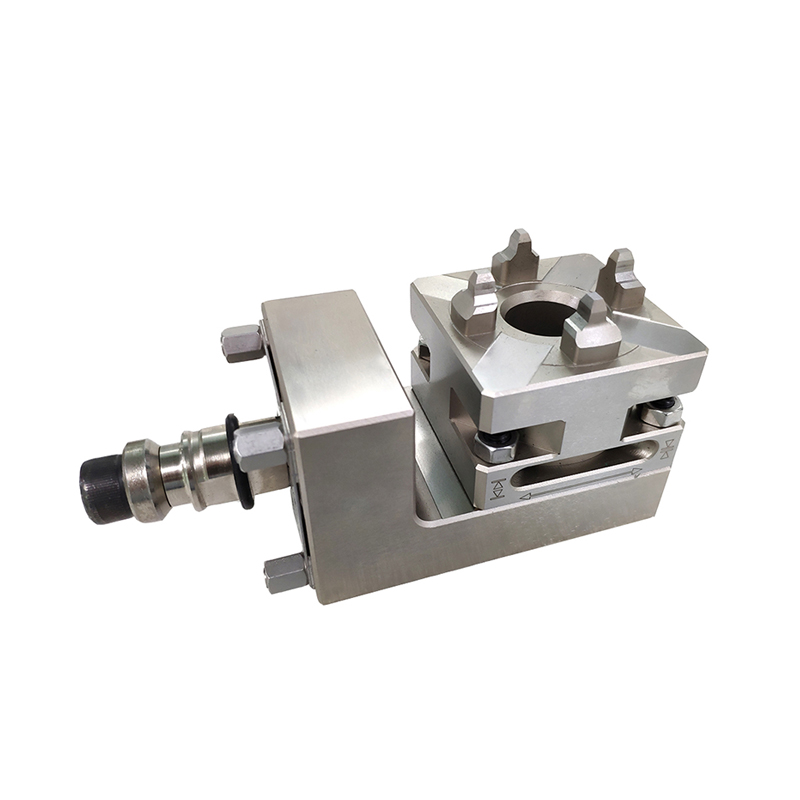

wire edm fixture
