POFI OK Clamping Vise

Views: 16     Author: Site Editor     Publish Time: 2023-08-07      Origin: Site

OK Clamping vise function


Suitable for any fixture system.  It can be used in grid-jig plate, T-slot table. Toothed rails and many other fixture platforms. In addition, it can also greatly improve service efficiency of the fixture. It can be applied to traditional machine tool processing technology, also suitable for five-axis machine tools and other modern processing equipment.


Principle of OK Clamping vise


Tighten the hex bolt and press the drive block down. Move the jaws sideways on both sides. Through the exquisite design, only the space of the pole can clamp the workpiece. Despite its small size, it can produce a clamping force of up to 150KN. Enough to handle large cutting force loads.


OK Vise is an ideal way of commonly used processing, the price ratio, the effect is good, the clamping force is large and delicate shape and the working principle, so that OK- VISE can clamp multiple machined parts at a time when the mass parts are processed. It solves the defect that the traditional fixture can only hold one at a time, and improves the working efficiency.

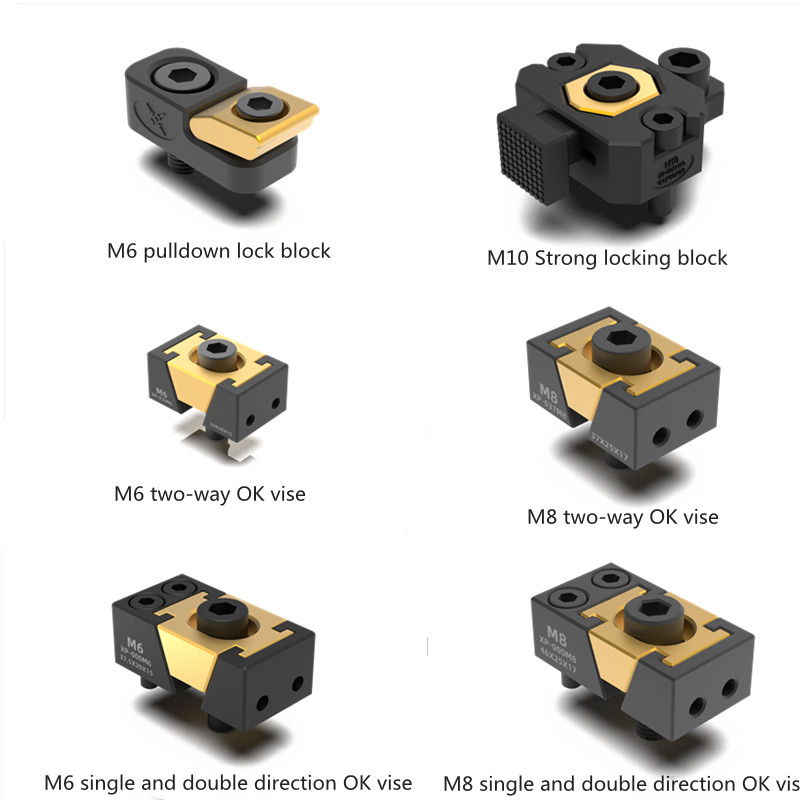

POFI OK Vise


Overall material 420, overall grinding and chamfering, surface coating treatment, two-way oblique wedge expansion clamp, M6 screws pull down lock, double plate expansion of about 2mm, F2 M4 screws fixed, the side can expand about 4m, the middle is changed to oval hole. Can achieve single and double clamping, built-in double spring steel can be extended up and down, strong clamping force, support finishing and heavy cutting, reserve 2 M4 screw holes to support soft claw development.

pofi OK VISE
