Key Technologies in Precision Mold EDM Processing

                                                        Key Technologies in Precision Mold EDM Processing

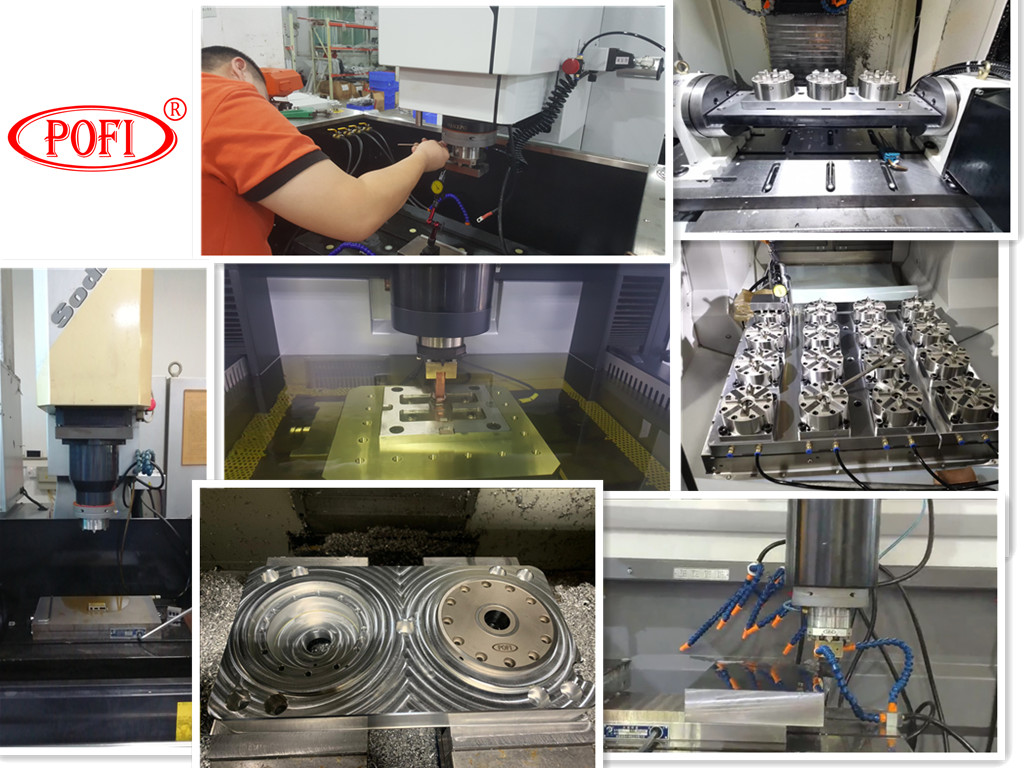

In precision EDM processing, to maintain high repeatability positioning accuracy without compromising processing efficiency, efficient positioning systems such as GF Machining Solutions' 3R quick-clamping fixtures or EROWA quick-clamping fixtures are typically employed.

These fixtures enable precision calibration prior to processing and achieve repeatability positioning accuracy of ±2 μm during processing.

Additionally, electrodes and workpieces can be quickly changed, while the centering reference ball prior to machining is precisely positioned using the CNC EDM machine's automatic centering function to align the spindle chuck with the workpiece's center zero point.

This machining method also allows the workpiece to be removed at any time during machining for dimensional measurement, offering extreme convenience.

Furthermore, the reference ball centering method ensures high-precision repeatable positioning, and its point contact characteristic effectively prevents microscopic debris from affecting positioning accuracy.

POFI edm tooling system Co., Ltd are focused our rearch on EDM clamping system tools, we design tools to sit more working conditions and compatible with other famous brand, like EROWA and System 3R.  We cooperate their advantages to improve our designing to suit moe conditions and make tools easy to operate. While save cost for customers.

Send us your inquiry without hesitate, we will be your service.
