EROWA Holder

Views:11     Author:Site Editor     Publish Time: 2020-05-22      Origin:Site

POFI ITS Standard 50 holder compatible to EROWA holder, equivalent to part number ER-009222, ER-010793,ER-009219, ER-009223,ER-103742. be mounted with centering plate ER-009214 or ER-011599 which included 4 supporting feet each. POFI EDM tooling system cost effective but accurate solution. Our EROWA equivalent clamping solution is precision machined comes in brass, aluminium and steel material and U10,U15, U20, U25, U30, U35, U40, U45, U50, U55, U60, U65 sizes. RIFD chip hole and chip are provided if needed.

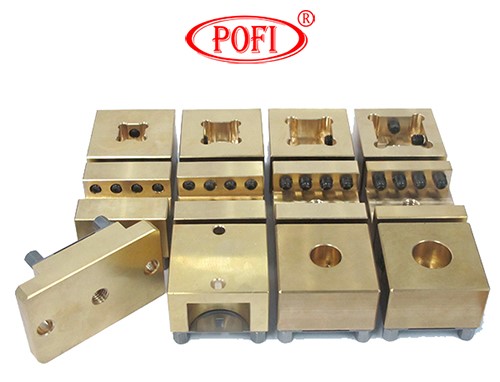

erowa electrode holder

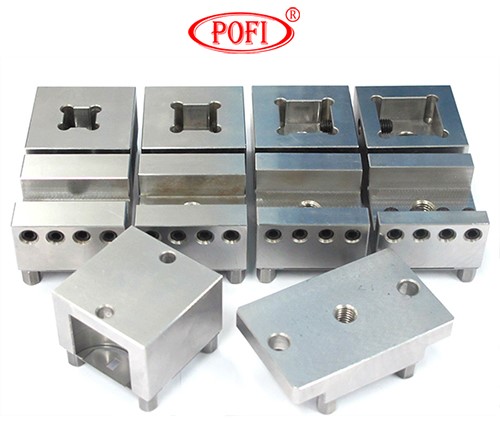

erowa gate holder

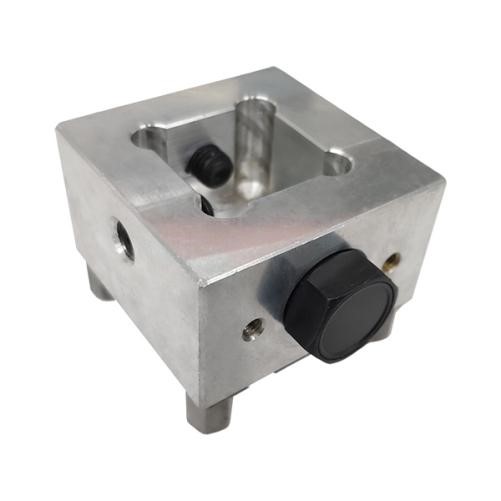

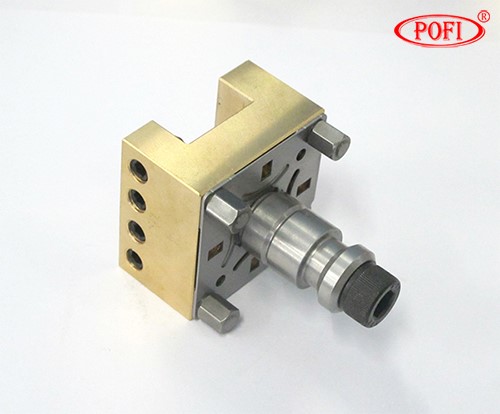

erowa collet holder
erowa collet holder


Please take a look at below, you will see how we manufacture the products:

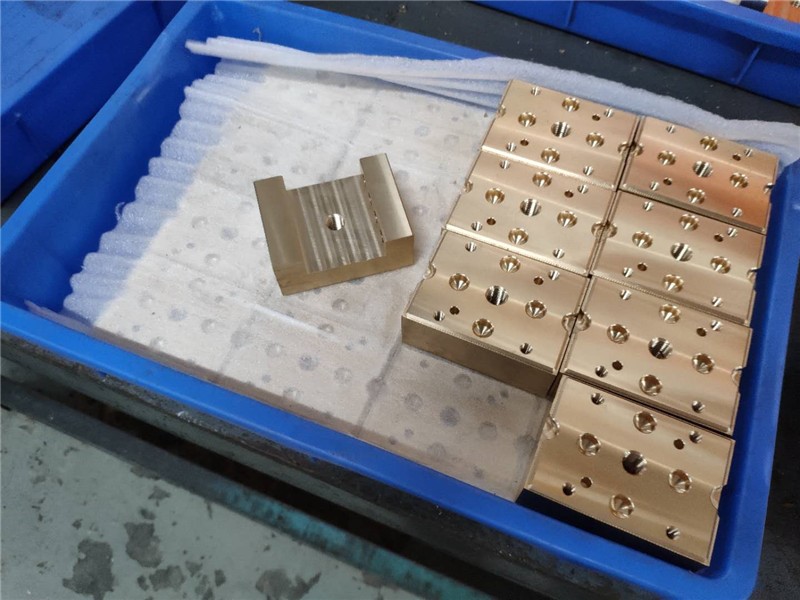

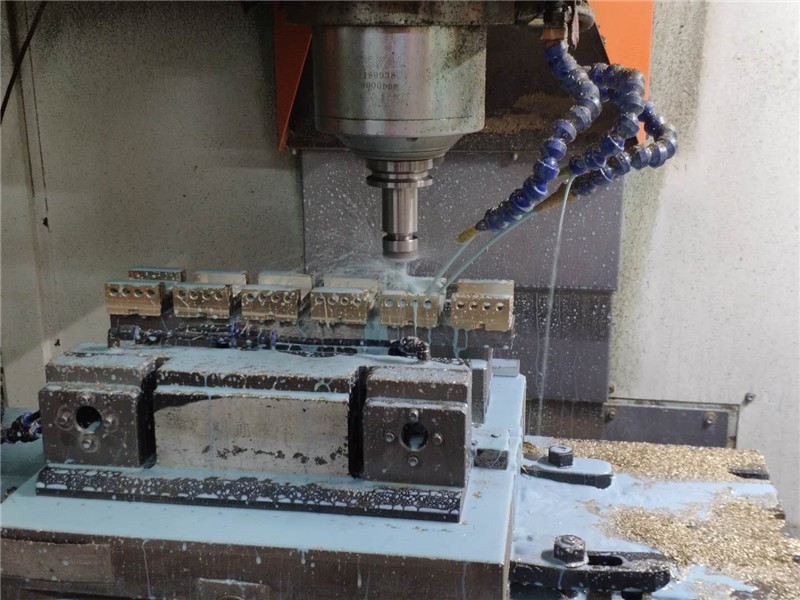

(1) Do CNC Michining to mill out the material and shape it to meet the standard holder upper part.

erowa tool holder
erowa collet holder


(2) Put and screw the lateral bolt inside the holder


erowa electrode holder

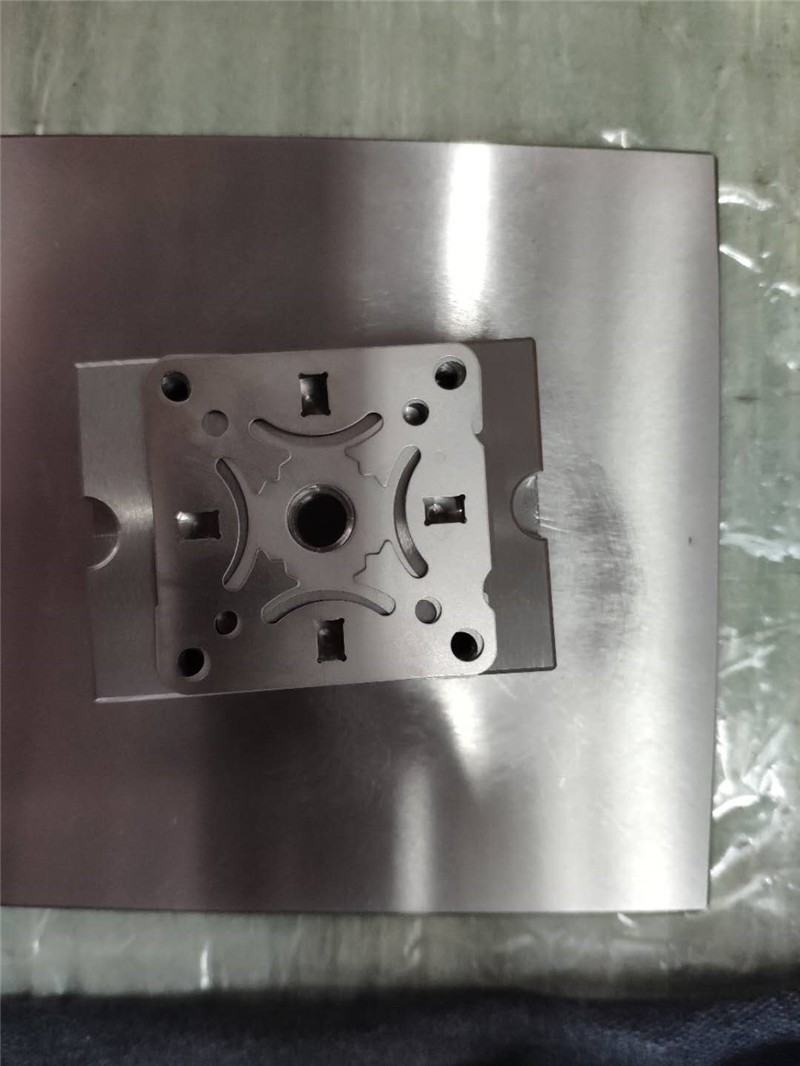

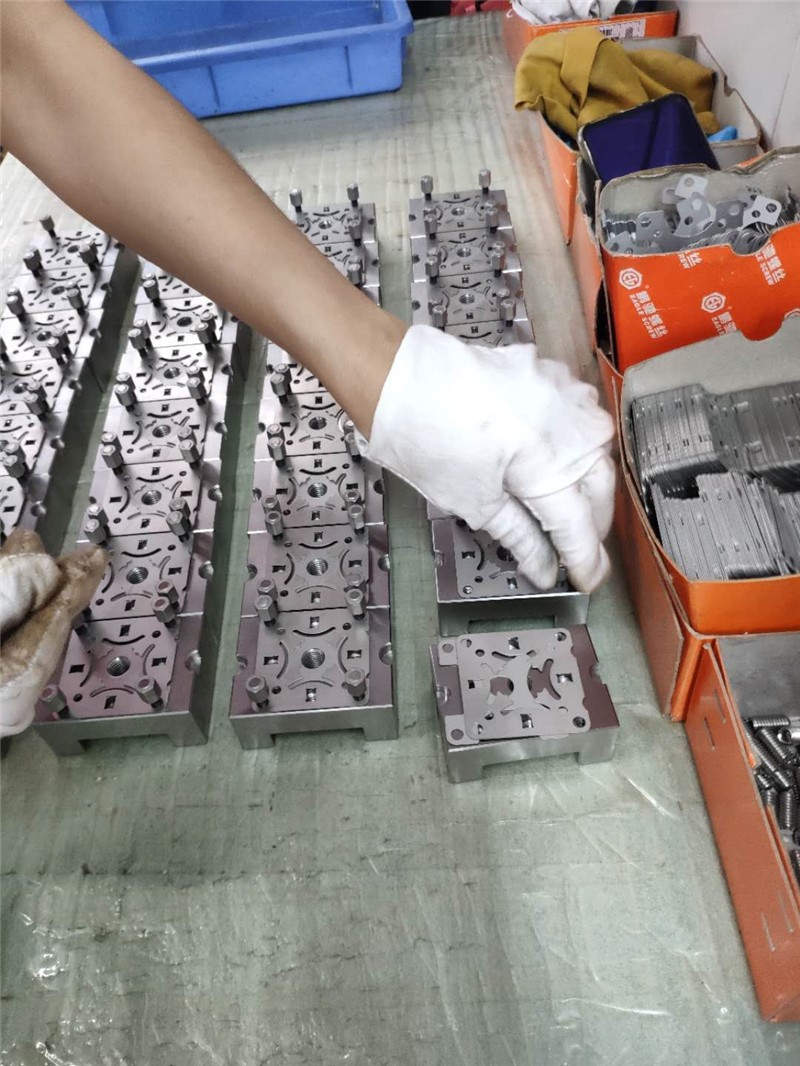

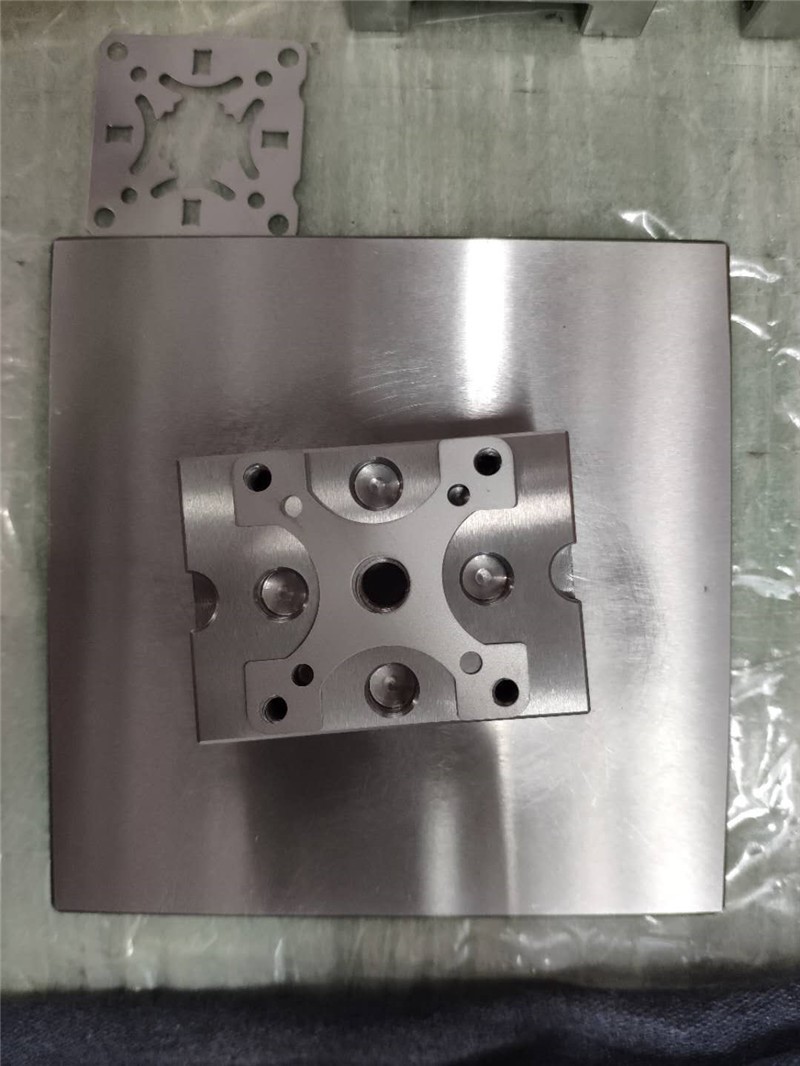

(3) Put the centering plate on the bottom


Put the centering plate on the bottom
(3) Put the centering plate on the bottom

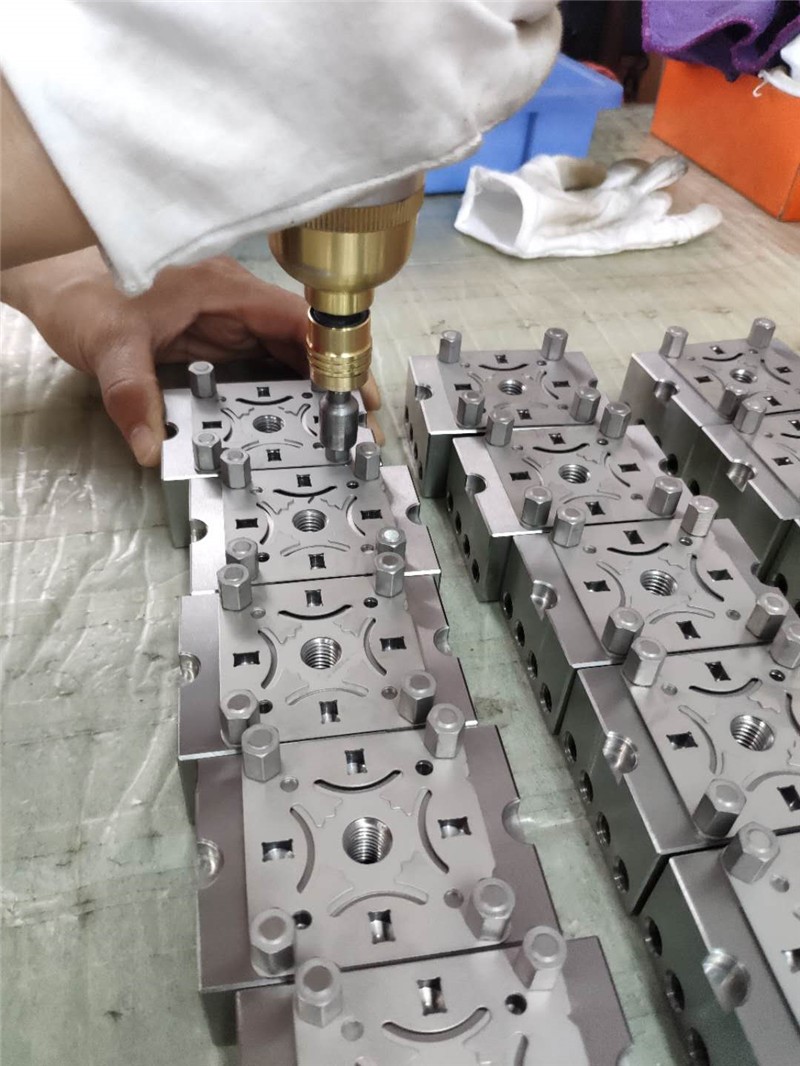

(4) Screw up 4 supporting feets under each holder


erowa electrode holder
erowa gate holder

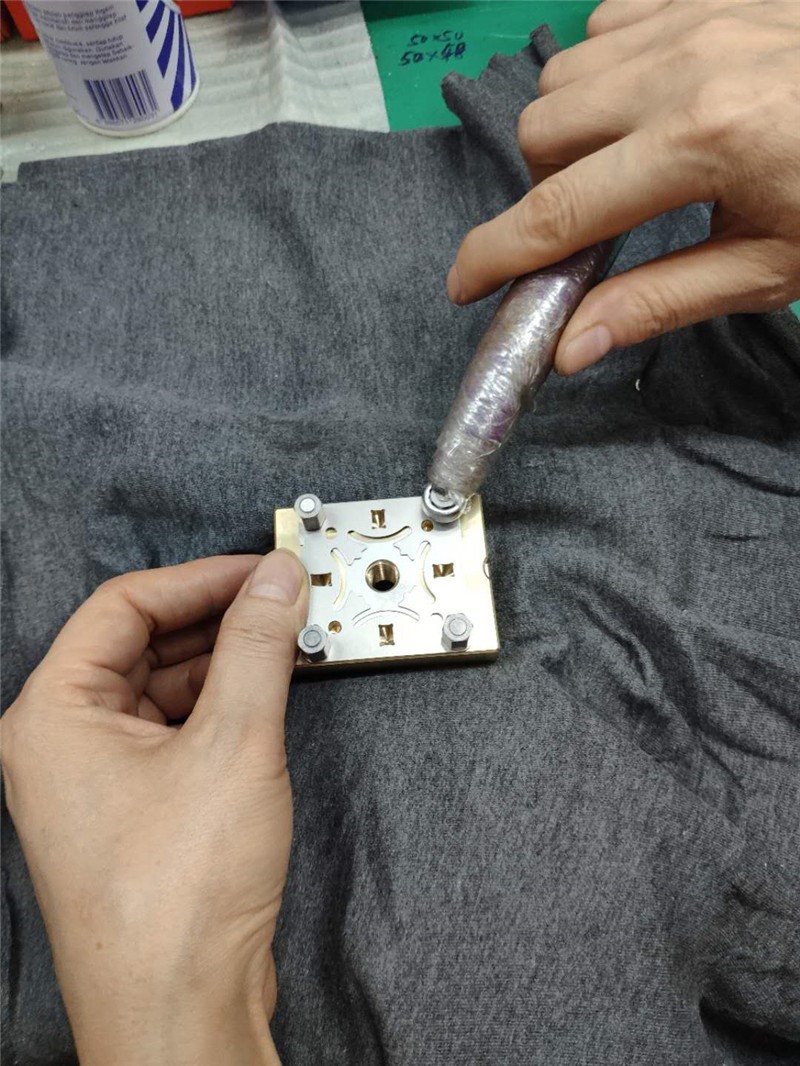

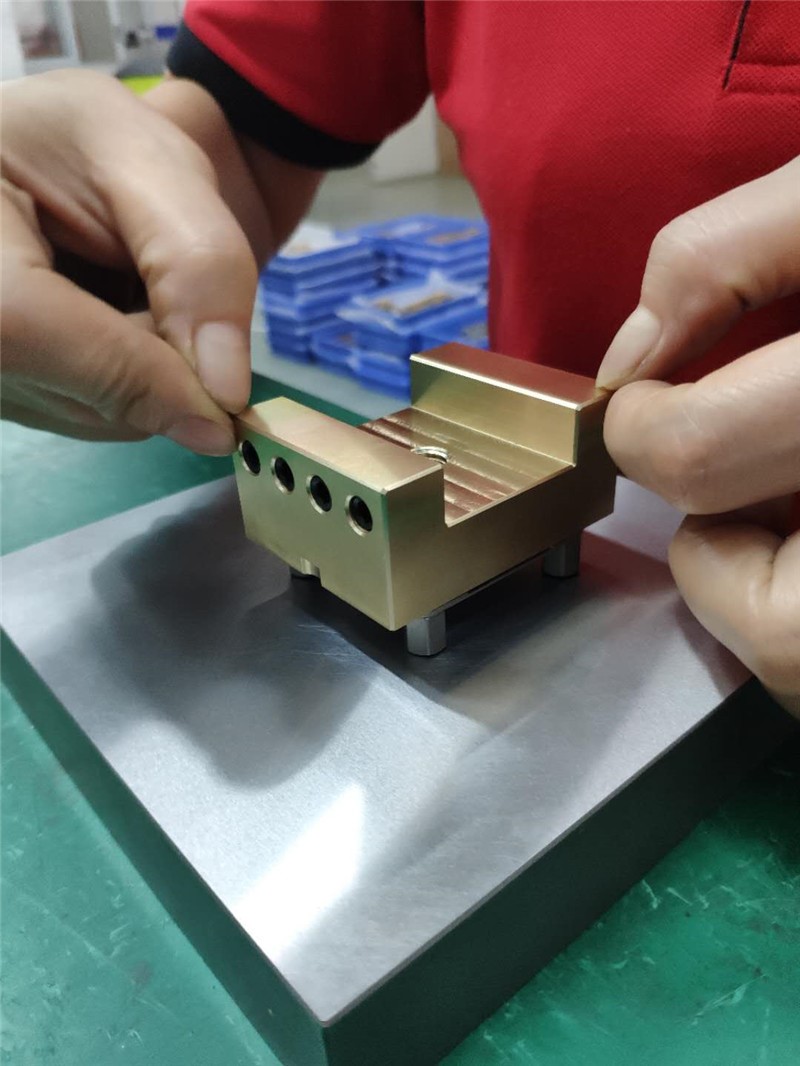

(5) Check and adjust the height of each holder to make sure every piece of them are at the same height.


erowa tool holder
erowa tool holder


(6) Product completed.


erowa holder price


EROWA ITS 50 Compatible Electrode Holder have advantage in fast and save, efficiency and accuracy.


Fast and save: workpiece loading can be clamping in seconds, preset time reduced. Greatly reduce manual time and save cost.


Efficiency: Save aligment of processing suitable for variety and special workpiece processing achieve only requires one time workpiece setup without need of additional calibration


Accuracy: Unique standard interface precision repeat locating.


EROWA ITS standard electrode holders and Chucks used together can be applied to various of ways.  For example:

(1) Applies to CNC machining


Applies to CNC machining


(2) Apply to EDM Tooling

Apply to EDM Tooling

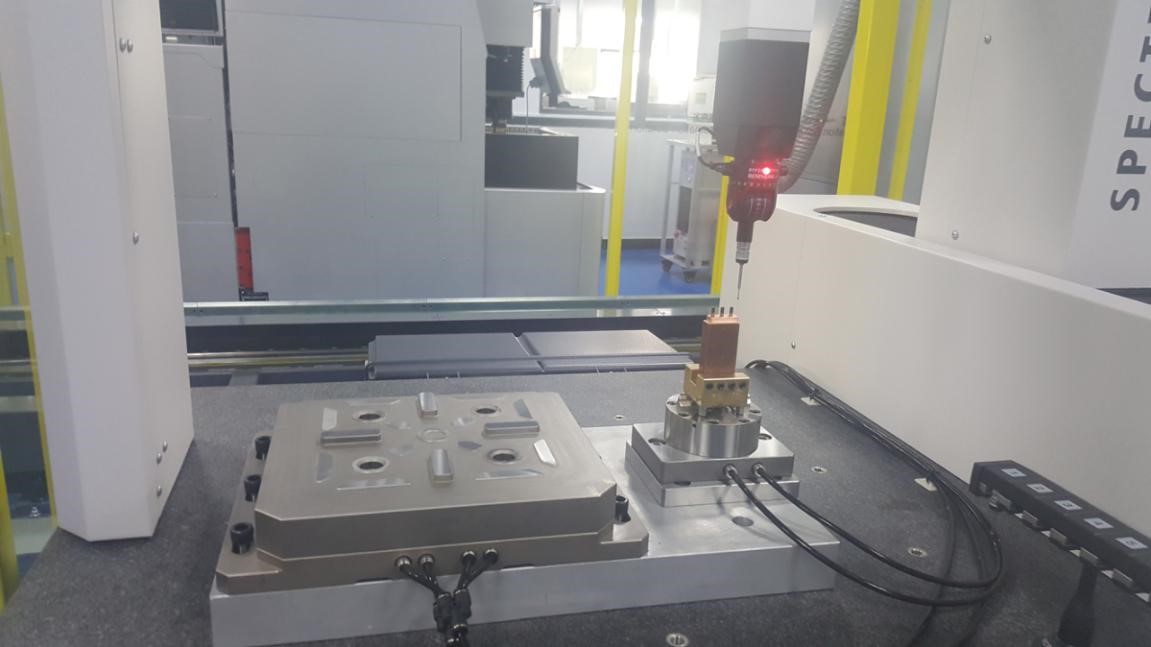

(3) Apply to checking tolerance on Coordinate measuring machine


Apply to checking tolerance on Coordinate measuring machine

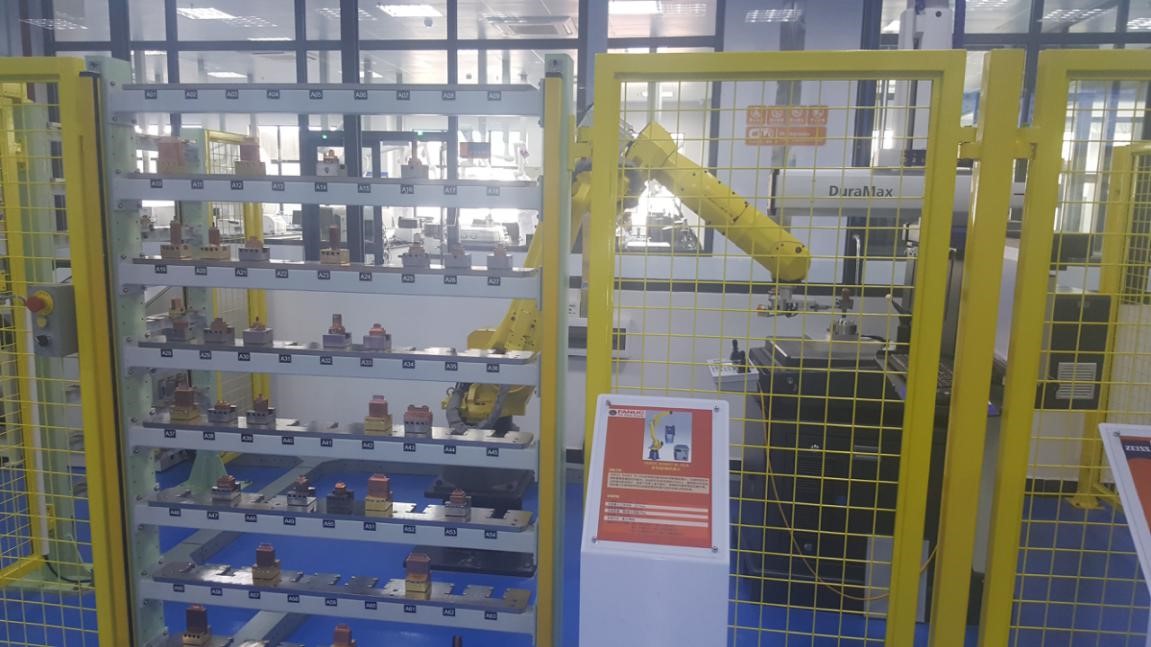

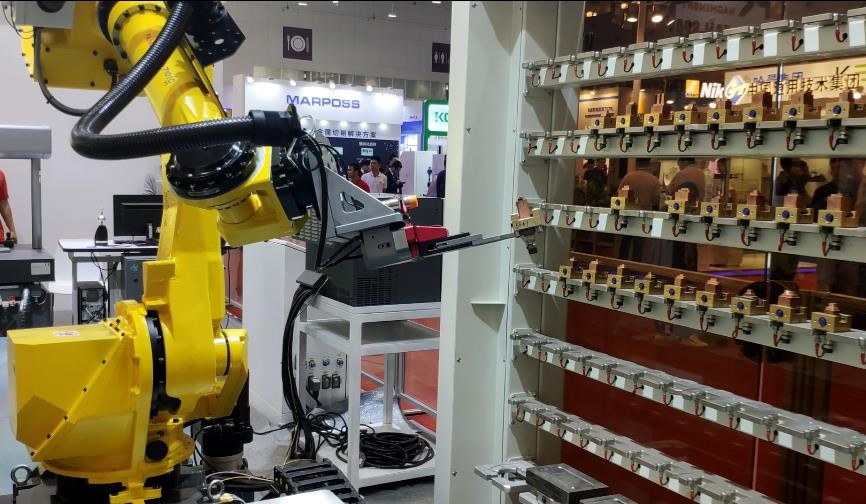

(4) Apply to Automatic production line in unmanned workshop.


Apply to Automatic production line in unmanned workshop
Apply to Automatic production line in unmanned workshop
erowa tool holders
图21

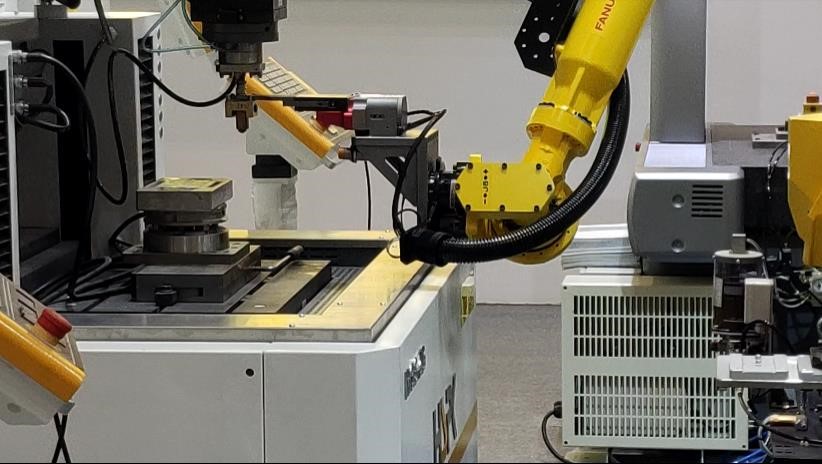

Erowa ITS electrode holder be mounted on the erowa chuck by spigot to clamping workpiece,the size of the electrodes and workpiece depends on the size of electrode holder you used.
