The fabrication requirements and functions of precision Flexible Tooling Fixture processing!

Views: 5     Author: Site Editor     Publish Time: 2022-09-05      Origin: Site



Precision Flexible Tooling Fixture processing generally refers to processing equipment, it is a general term for various tools used in the parts processing, and manufacturing process, collectively known as Tooling fixtures, including tools, Tooling fixtures, molds, inspection tools, assembly tools, etc., including particular Flexible Tooling Tooling fixture is generally used in the assembly line of an electronic factory. Tooling fixture is generally used in the assembly line of electronic factories, and the auxiliary function of Tooling fixture can significantly improve production efficiency. At the same time, the processing industry, especially for multi-species and small-lot parts, is widely used to complete processing production.


The main problem in the precision Flexible Tooling Fixture machining field is positioning the parts to be machined relative to the platform. The CNC machine starts machining at a specific point corresponding to the Tooling fixture and then starts machining from the Tooling fixture. Therefore, the machining accuracy of the workpiece depends heavily on the accuracy of the fixation of the workpiece in the Tooling fixture, and it is essential to position the parts of the Tooling fixture accurately. Any deviation in the position of the part increases the dimensional tolerances that must be assigned to the finished product. In addition, incorrect support and fixation of parts in the Tooling fixture can also affect the surface finish through temporary or deformation. Therefore, support, clamping, and positioning techniques must be considered simultaneously to ensure repeatability between parts.

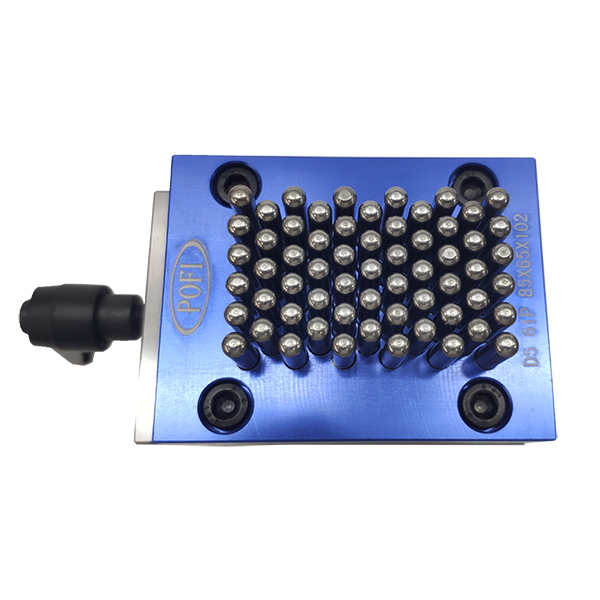

Tooling Fixture

Features of Precision Flexible Tooling Fixture machining.


During the design and manufacture of Tooling fixtures, consideration must be given to whether the Tooling fixture can meet the accuracy requirements of the Tooling fixture during machining. Only by designing and manufacturing Tooling fixture that meets the requirements can we process and produce parts that meet the quality requirements. Secondly, we also need to consider the operation habits of workers, such as location requirements, loading and unloading space requirements, etc. The Tooling fixture must have high strength and stiffness, which can be used for a long time, and wear caused by high-intensity work. Otherwise, using high-intensity work will lead to errors in the operation process. CNC machining machine Tooling fixture is suitable for multi-species, small and medium-sized mass production, can adapt to different sizes, different shapes of workpieces, adaptable, through simple adjustment can adapt to the processing needs of different parts, and can meet the variety of repeated use many times, has a high value of use, to a certain extent, to reduce costs.
